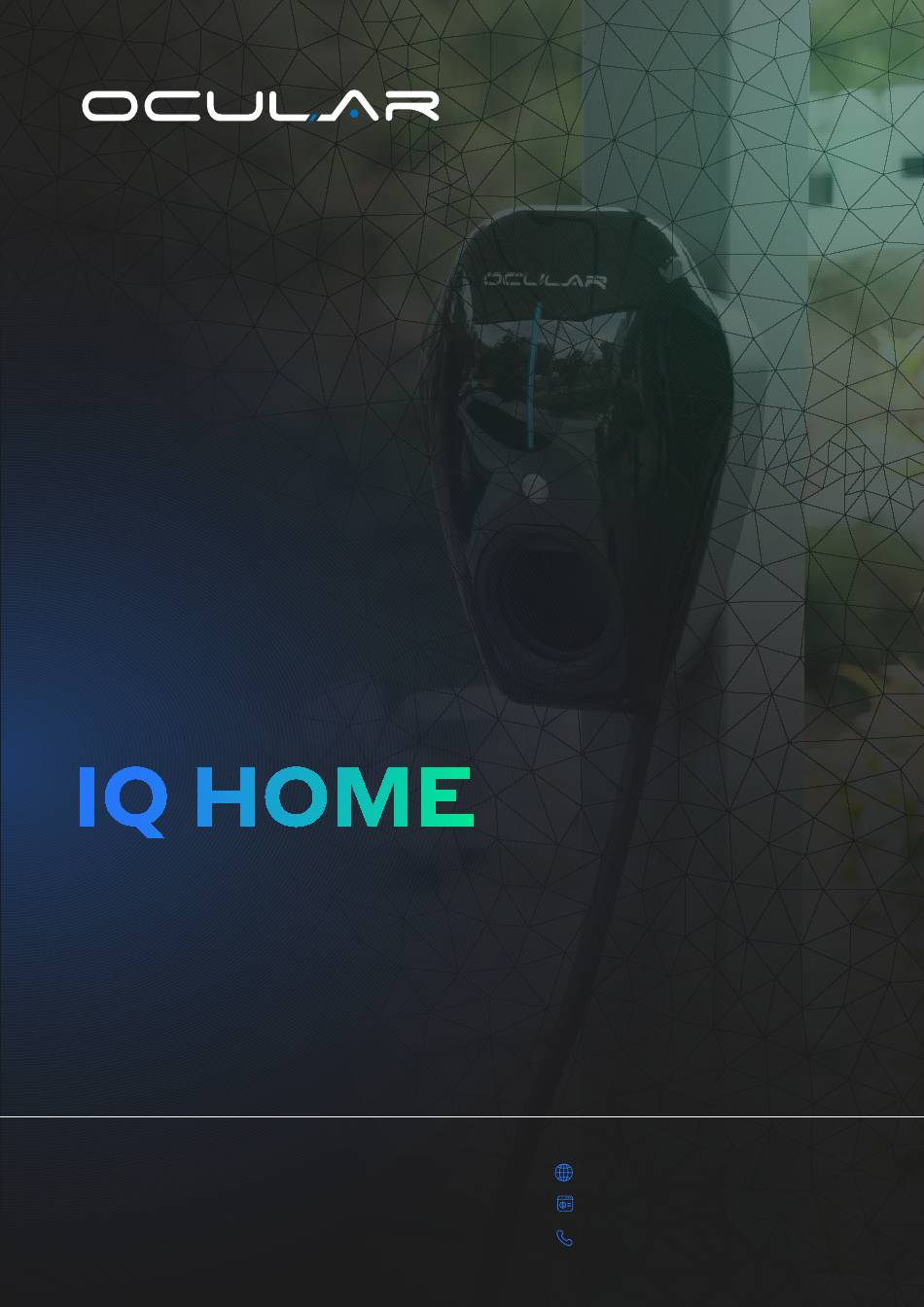

- Page 1 INSTALLATION GUIDE IOCAH15-7T / IOCAH15-22T ocularcharging.com.au sales@ocularcharging.com.au Version 2.0 1300 912 650...
-
Page 2: Table Of Contents
Charger Configuration - CT Clamp Set Up ............13 Charger Configuration - Grid Supply Set Up ............14 Installation Verification.................... 15 Connect Charger to Ocular Smart Home App ............16 Appendix A - Troubleshooting ................17 Appendix B - Charger Error Codes................ 18 Appendix C - CT Clamp Specifications .............. -
Page 3: Specifications
SPECIFICATIONS Model Number IOCAH15-7T IOCAH15-22T Input Voltage & Current 230V± 20%, 32A per phase Frequency (Hz) 50/60Hz Charging Connector IEC62196 Type-2 5m cable Current Transformers Included Current Transformer Specifications 20m cable, Fits 16mm diameter cable up to 100A max current Power Output 7.2kW (1- Phase) 22kW (3- Phase) -
Page 4: Product Overview
PRODUCT OVERVIEW Item Type-2 charging cable and plug LED status indicator Physical button Plug storage recess... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS This document contains important instructions and warnings that must be followed when installing and maintaining the workplace pedestal charger WARNINGS Do not install or use the charger near flammable, explosive, harsh, or combustible materials, chemicals, or vapors. Turn off input power at the circuit breaker before installing or maintaining. Do not use or stop using the charger if it is defective, appears cracked, frayed, broken or otherwise damaged, or fails to operate. - Page 6 NOTES BEFORE INSTALLATION The charger should be protected by an external Residual Current Device (RCD) to be installed in the upstream circuit which complies with the following: • Type-A Rated residual operating current not exceeding 30 mA • Required as per Appendix P, AS 3000:2018 Australia Standard for EV charging stations.
-
Page 7: Wall Mounting
WALL MOUNTING AND WIRING Using the enclosed template on the wall and mark all the mounting holes required. Drill holes where the fixing points are marked. Using opening tool (included in the box) remove the black front cover, then unscrew the gray panel. Unclip the communication cable and put the front panel aside to protect the cover during... - Page 8 Remove rubber plugs, fix the device on the wall with screws, and then replace rubber plugs. Connect the cables through the bottom of the junction box. Tighten the terminal with a torque of 1.2 Nm. Do not over-tighten. For cable clamp, tighten the screws with a torque of 0.5-0.7 Nm.
-
Page 9: Ct Clamp Installation
CT CLAMP INSTALLATION CT Clamps need to be installed on the of the main switch board. grid side Isolator Main Switch Board Note: The CT Clamp cable is 20 meters long. The Charger must be installed within 20 meters of the incoming supply. -
Page 10: Single Phase Ct Installation Diagram
SINGLE PHASE CT INSTALLATION Live Neutral RS485 The arrow on the CT must be pointing towards the Main Board and away from the grid supply THREE PHASE CT INSTALLATION Live Neutral RS485 The arrow on the CT must be pointing towards the Main Board and away from the grid supply... - Page 11 CT CLAMP INSTALLATION & WIRING Run the CT clamp wires through the grey gland/hole located at the bottom of the charger. Wire into terminal block as indicated in the picture below. For Single Phase, use the first two ports on the right. For CTs Single Phase Terminal Block...
-
Page 12: Internet Connection
INTERNET CONNECTION AND CHARGER INSTALLATION Connect the charger to the internet. The charger can be connected via ethernet or WIFI. Ethernet is recommended for stability. Connect the ethernet cable to the WAN port behind the front panel. WAN Port Reconnect the communication cable to the PCB on the front panel, tighten the screws to secure the front panel. - Page 13 Password : Evcharging123 After entering the username and password, the Ocular web-interface will load. (Optional): Set up WIFI configuration (not needed if ethernet is used). • Navigate to the Network tab (see picture on below). • Click the “Scan” button to start scanning for available WiFi network.
- Page 14 CHARGER CONFIGURATION - ACCESSING THE ADVANCED SETTINGS PAGE Do not change settings other than outlined below as this may affect operations. 1. Log in to the web-interface of the charger. (Refer to page 12). 2. Click on the Balance tab, and then click on “Advanced Settings”. 3.
-
Page 15: Charger Configuration - Ct Clamp Set Up
CHARGER CONFIGURATION - CT CLAMP SET UP 1. Scroll down the page until you can see the settings boxes for HUB1 and Grid Current. 2. Ensure HUB1 is switched on (Blue indicator). 3. Configure HUB1 settings as in the pictures below. Note the differences between the Single Phase and 3 Phase setups. -
Page 16: Charger Configuration - Grid Supply Set Up
CHARGER CONFIGURATION - GRID SUPPLY SET UP Set the Rated Current and Safe Current. This is the maximum current that the main MCB can handle. Rated Current: This is the safe current reserved to prevent the circuit from Safe Current: overloading. -
Page 17: Installation Verification
INSTALLATION VERIFICATION 1. Verify all cabling is wired properly. 2. Verify that the CT clamps are installed in the correct direction. 3. Take a photo of the CT clamp installation at the main board as a record. This will help any future troubleshooting. 4. -
Page 18: Connect Charger To Ocular Smart Home App
CONNECT CHARGER TO OCULAR SMART HOME APP 1. Search “Ocular Smart Home” or Ocular Charging” on the google play or apple app store. 2. Download, install, and launch the app. 3. Navigate to the Group page and click “Add Station”. -
Page 19: Appendix A - Troubleshooting
It usually takes less than 10 seconds. If the status indicator doesn’t return to blue, turn OFF the charger and then back ON. If the situation persists, contact Ocular Charging for Technical Support. Status indicator There is a critical error. -
Page 20: Appendix B - Charger Error Codes
APPENDIX B – CHARGER EROR CODES This page shows the eror codes' meaning, if any of the charger presents any error listed below, please contact your instaler for technical support. LED Diagram LED Status Definition CP / CC fault Red light is solid Overcurrent / Overvoltage / Alternately flashing red and green Undervoltage... -
Page 21: Appendix C - Ct Clamp Specifications
Prior ot setting up the CT clamps, please ensure that you have the correct CT and CT Ratio setup.Only use CT clamps provided by Ocular - The wrong CT clamps wil cause a misreading and void warranty. If you must use your own CT, please speak to Ocular and confirm suitability.
