Ocular LTE Plus Installation Manual
Hide thumbs Also See for LTE Plus:

Advertisement

Quick Links

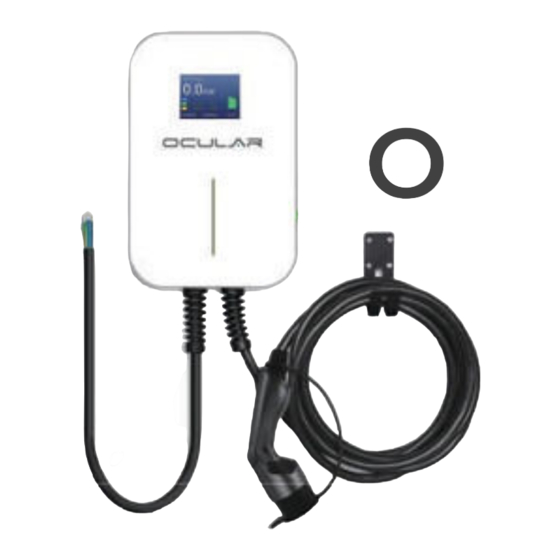

Ocular LTE Plus
Installation Guide
ocularcharging.com.au
sales@ocularcharging.com.au
1300 912 650

Advertisement

loading
Need help?

Need help?

Do you have a question about the LTE Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Ocular LTE Plus

  • Page 1 Ocular LTE Plus Installation Guide ocularcharging.com.au sales@ocularcharging.com.au 1300 912 650...
  • Page 3: Station Overview

    Ocular LTE Overview Accessories of Tethered Model PLATE STATION HOLDER SCREWS FOR HOLDER 30mm SCREWS HOOK 30mm PLASTIC BOLTS ALLEN KEY REFERENCE PAPER Station Overview Display Screen When charging: On/Off While standby: current adjuster button Charging Plug...
  • Page 4: Technical Parameters

    Technical Parameters Level 2 EV Charging Station Phase Mode: Single Phase Phase Mode: Three Phase Installation Method: Wall/Stand Installation Method: Wall/Stand Certificate: CE, TUV, RCM Certificate: CE, TUV, RCM IP Rating: IP66 IP Rating: IP66 Rated Voltage: 230VAC +/- 10% Rated Voltage: 400VAC +/- 10% Rated Current: 32A Rated Current: 32A...
  • Page 5 Installation Guide REFERENCE PAPER Hammer the of installing screw hole size 30mm PLASTIC BOLTS into the holes Wall Take down the Drill the holes REFERENCE PAPER according to the from the wall later REFERENCE PAPER Embed STATION into Fix the PLATE PLATE on the wall with 30mm SCREWS Use Connector Clip to...
  • Page 6 N o t e : The Ocular LTE plus will automatically restart when minor problems occur. For serious failures, the system cannot automatically recover. In order to remind user of this failure, the system will automatically countdown 10 seconds to restart.
  • Page 7: Safety Warning

    Maintenance Ocular LTE is only recommended for use in residential applications and use outside of this area (i.e. for commercial application) is outside of warranty. In order to ensure the normal service life of the charging station and reduce risk, mainte- nance must be performed every 12 months.
  • Page 9 C H A R G E W I T H V I S I O N...
  • Page 10 OCULAR LTE PLUS USER MANUAL ocularcharging.com.au OC20-BC-7.2KW-Plus sales@ocularcharging.com.au OC20-BC-22KW-Plus 1300 912 650...
  • Page 12 Scan here for FAQs Scan here for support documents...
  • Page 13 How to charge - LTE Plus Starting a charging session LTE tethered model: Plug the attached charging cable into your car port. Stopping a charging session The charging sessions can be terminated either by the car or the charger. To stop charging via the car please consult your car manual.
