Cabinet Setup (cont.)
TEC_TM_141 | REV. A | EN
Angle & Rod Tray Slides
Angle & Rod Tray Slides
Kits #1 & #2
Kits #1 & #2
18-1/8" (460 mm)
18-1/8" (460 mm)
Fig. 5.

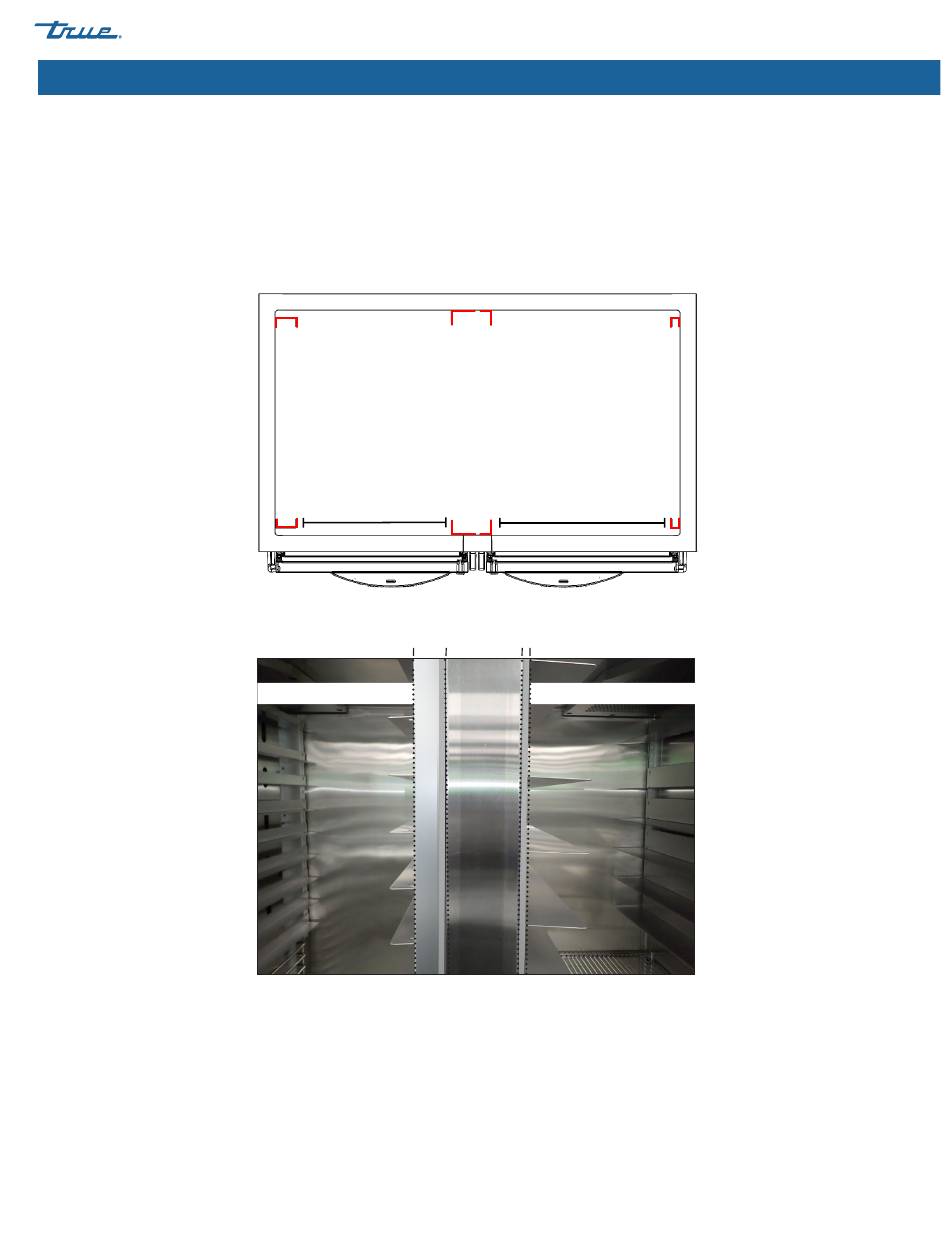

Measure the distance between pilasters. Top-down view.
Angle & Rod Tray Slides
Fig. 6.
The shelving kits have different pilaster sizes.
SPEC SERIES
Universal Tray Slides
Universal Tray Slides
Kit #3
Kit #3
21-1/4" (540 mm)
21-1/4" (540 mm)
Universal Tray Slides
06/30/2022
www.truemfg.com
Page 11 of 24
