Installation (cont.)
Cabinet Location
1. Ensure that the drain hose or hoses are positioned in the pan.
2. Free the plug and cord from inside the lower rear of the cooler
(DO NOT plug in).
3. Place the unit close enough to the electrical supply so that the
extension cords are never used.

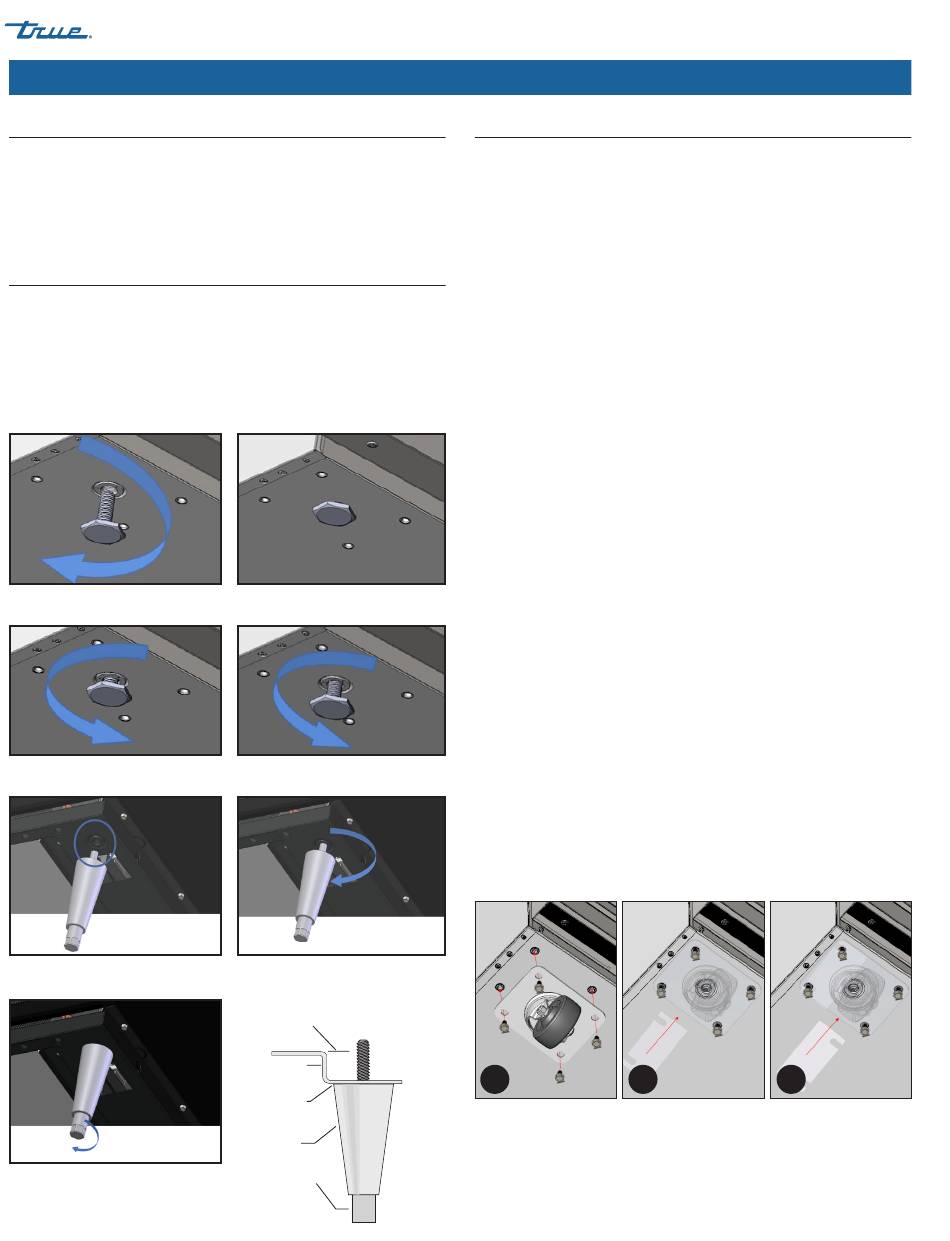

Installing Leveling Legs
Leveling legs are provided to assist with leveling the cabinet.
With access to the bottom of the cabinet, thread the leveling legs
into the holes used to secure the cabinet to the skid. See figs. 1
and 2.
Fig. 1.
Turn the leveling legs clockwise to lower the unit.
Fig. 2. Turn the leveling legs counterclockwise to raise the unit.
Fig. 3. Locate the threaded hole in the
rail.
Fig. 5.
Turn the bottom stem to level the
cabinet.
Page 6 of 24
Fig. 4. Screw in the leveling legs.
Lower Rail
Assembly
Rail End
Snug Fit
Here
Leg
Bottom Stem
SPEC SERIES
Installing 6" Leveling Legs or Castors
Adjustable legs will provide 6" (152 mm) of clearance under the
cabinet. Castors provide cabinet mobility.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with
the floor after the cabinet has been leveled.
Required Tools
Adjustable Wrench
6" Leveling Legs
1. Access the bottom of the cabinet and thread the leveling legs
into the rail. See figs. 3 and 4.
2. Verify that the cabinet is level.
3. If the cabinet is not level, gently lift and support the low end
of the cabinet. With an adjustable wrench, screw the bottom
stem of the leveling leg in or out to level and support the
cabinet. See fig. 5.
Castors
1. Locate the castor anchor points on the underside of the
cabinet.
2. With an adjustable wrench and the provided hardware, install
the plate castors.
NOTE: DO NOT overtighten the bolts.
3. Verify the level of the cabinet. If the cabinet is not level, gently
lift and support the low end of the cabinet and add castor
shims.
a. Loosen the castor bolts to create space between the
mounting plate and the bottom of the cabinet. See fig. 6a.
b. Position the castor shims and tighten the castor bolts. See
figs. 6b and 6c.
c. Lower the cabinet and verify it is level. Repeat the process
until the cabinet is level.
NOTE: Install shims in pairs and ensure the shims contact
the castor mounting bolts.
A
Fig. 6. Install castor shims in pairs.
