True STR2R-2S-HC Installation Manual page 22

Cabinet Adjustments & Servicing (cont.)
Door Adjustment
If the doors need to be aligned, adjust the hinges on the cabinet
and door as described below. After adjusting the hinges, be sure to
adjust the lock latch as needed.
Required Tool
• Phillips Screwdriver.
Before you begin
1. Remove the door.
2. Open the door 90° from the cabinet. Then, lift the from the
hinges.
NOTE: Take care to avoid the rainshield.
Adjust the Cabinet Hinge
1. Remove the gray plastic cover from the hinge. See fig. 1.
2. With a Phillips screwdriver, loosen the hinge screws. See fig. 2.
NOTE: DO NOT remove the hinge.
3. Adjust the cabinet hinge up/down/sideways accordingly.
See fig. 2.
4. Tighten the hinge screws.
NOTE: DO NOT overtighten.
Adjust the Door Hinge
1. Remove the hinge cover. See fig. 3.
2. With a Phillips screwdriver, loosen the hinge screws. See fig. 4.
NOTE: DO NOT remove the hinge.
3. Adjust the door hinge up/down/sideways accordingly.
See fig. 4.
4. Tighten the hinge screws.
NOTE: DO NOT overtighten.
Adjust the Lock Latch
1. With a Phillips screwdriver, remove the latch. See fig. 5.
2. Loosen the lock base. See fig. 6.
NOTE: DO NOT remove the lock base.
3. Adjust the lock base up/down/sideways accordingly. See fig. 6.
4. Tighten the lock base.
NOTE: DO NOT overtighten.
5. Install the latch.
Page 22 of 24
FOR MORE INFORMATION
For additional maintenance instruction, please visit the media center at
www.truemfg.com
SPEC SERIES

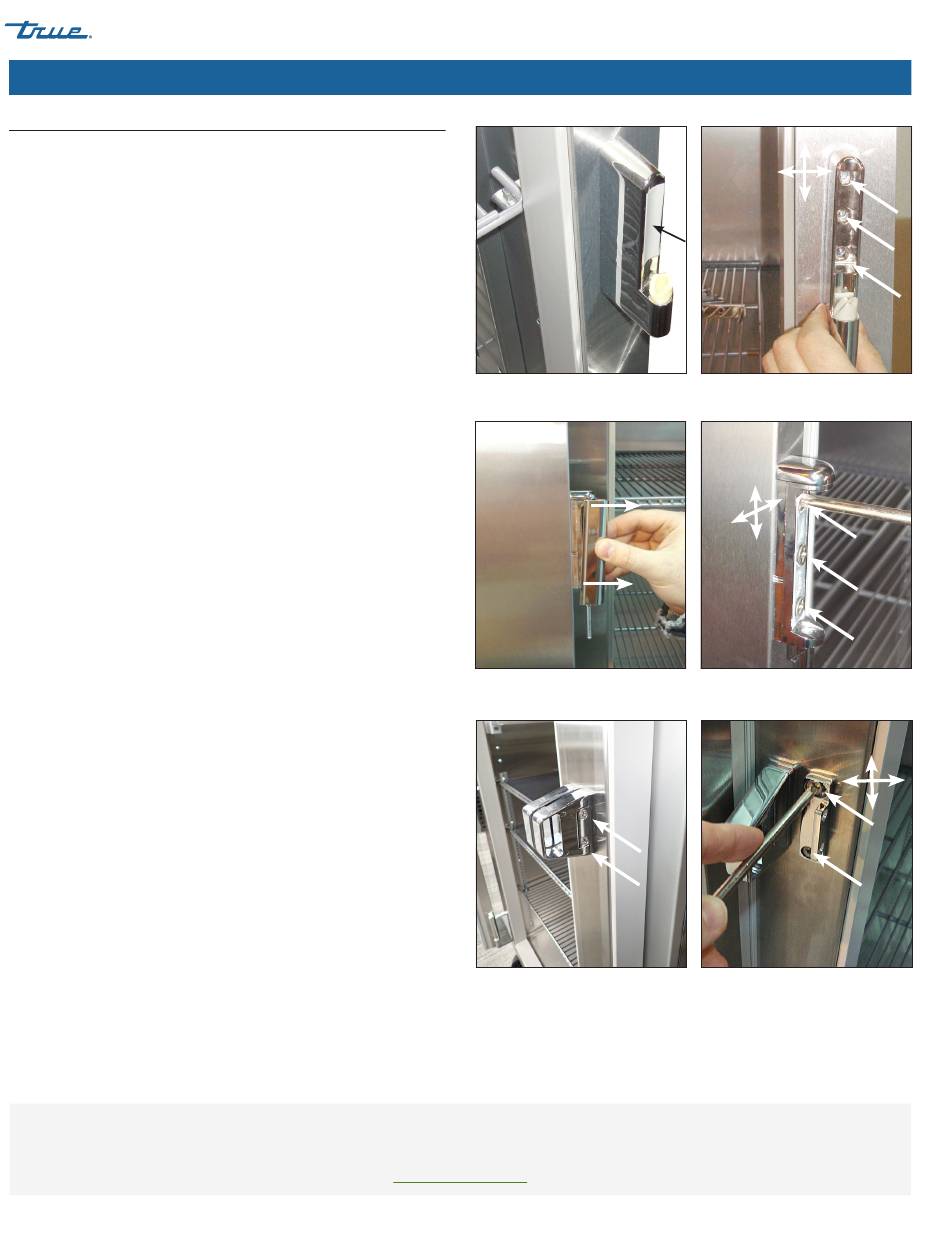

Fig. 1.
Pry the gray cover from the hinge.
Fig. 3. Pull the hinge cover from the
door hinge.
Fig. 5. Latch screw locations.
06/30/2022
www.truemfg.com
Fig. 2.
Cabinet hinge screw locations.
Move the hinge as needed.
Fig. 4. Door hinge screw locations.
Move the hinge as needed.
Fig. 6.
Lock base screw locations. Move
the base as needed.
TEC_TM_141 | REV. A | EN
