Summary of Contents for Reed Instruments SD-6020

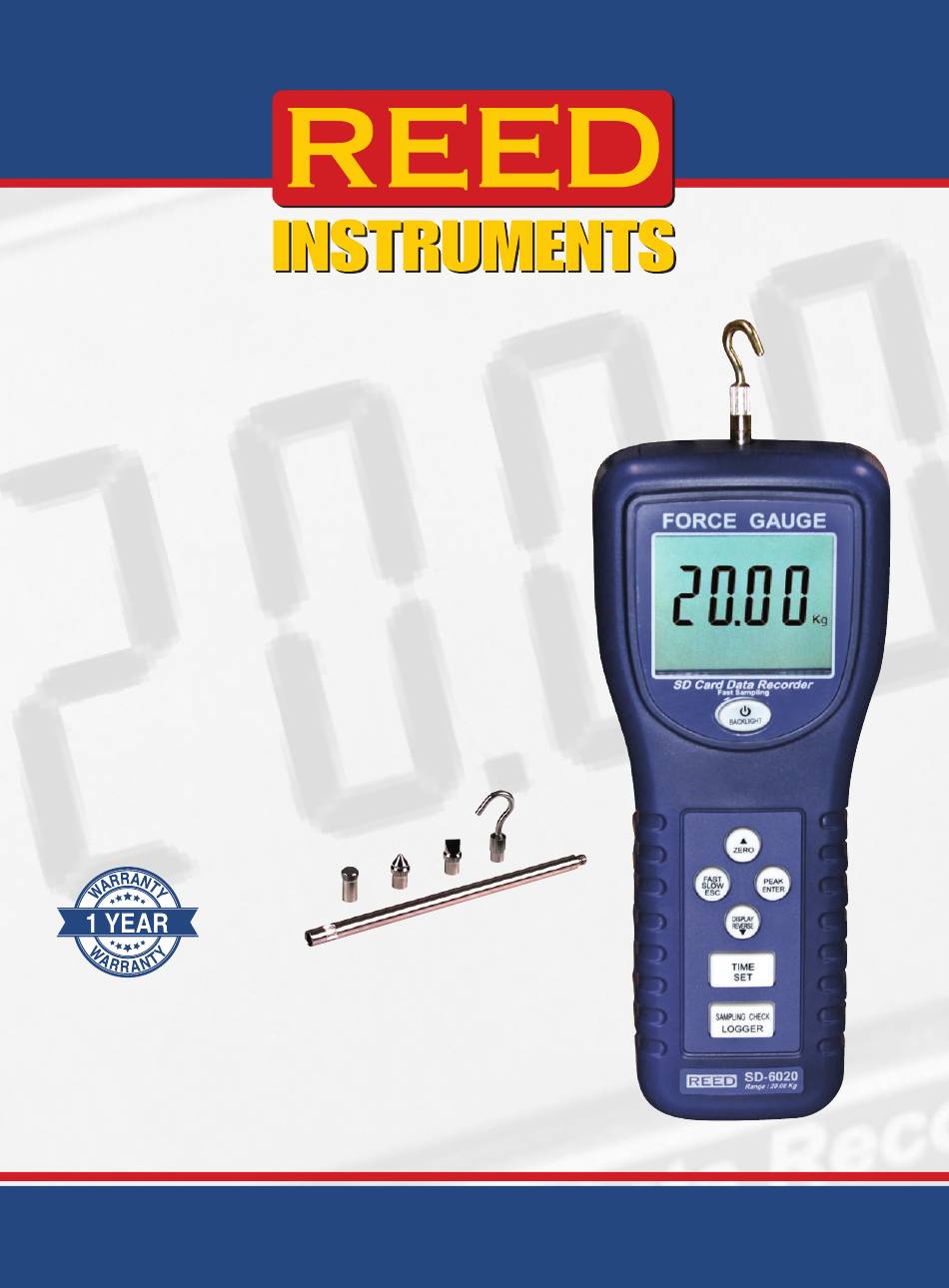

- Page 1 SD-6020 Data Logging Force Gauge Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Selecting the Unit of Measure for Force (unit) ........12 Setting Data Decimal Format (dEC) ............ 12 ESC ....................13 Verify Set Time and Date ..............13 Verify Sampling Rate ................13 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Product Disposal and Recycling .............. 19 Product Support ..................19 Introduction Thank you for purchasing your REED SD-6020 Data Logging Force Gauge. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Safety
• Low battery indicator and auto shut off Included • 20kg Force Gauge Datalogger • Flat Head, Cone Head, Chisel Head and Hook Adapters • Extension Rod • Hard Carrying Case • Batteries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Specifications
6 x AA batteries or AC Adapter (optional) Output Battery Life Sampling Time Dependent PC Connectivity USB Cable (optional) Software SW-U801-WIN (optional) Software OS Compatibility Windows XP / Vista / 7 Product Certifications: continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 6 0 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 85% Dimensions: 8.5 x 3.5 x 1.8" ( 215 x 90 x 45mm) Weight: 1.43lb (650g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 7: Instrument Description
12. AC/DC 9V Power Adapter Input Socket 13. Mounting Holes 14. Battery Compartment/Cover 15. Flat-head Adapter 16. Cone Adapter 17. Chisel Adapter 18. Hook Adapter 19. 120 mm Extension Rod 20. SD card slot REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Operating Instructions
"FAST" for Fast Sampling and "SLOW" for Slow Sampling. Use the FAST/SLOW button to toggle between these modes. Note: If the tension or compression exceeds the meter's range, the screen will display "----". REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Peak Hold Measurement
Exit Setup mode Once the appropriate parameter has been selected, follow the instructions below. Note: The meter will automatically exit out of the Setup mode if no key is pressed within 7 seconds. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Sd Memory Card Format (Sd F)
Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. The internal clock will keep accurate time when the meter is powered off. When new batteries are installed the clock will have to be reset. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Setting The Data Logging Sampling Rate (Sp-T)
Press the SET button to save the setting and skip to the next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Enabling/Disabling The Beeper (Beep)
Press the SET button to save the setting and skip to the next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Esc
In manual mode, the LOGGER button is pressed to manually log a reading on the inserted SD card at any time. In order to setup the meter for manual data logging, follow steps 1 through 8 below. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Automatic Data Logging Mode
SD card, and try again. Once data logging begins, the DATA RECORD icon will appear on the LCD. The icon will flash each time a reading is stored at the configured sampling rate. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Peak Hold Data Logging Mode
SD card. To end the current data logging session, press and hold the LOGGER button for more than 2 seconds. Press the PEAK Button to exit Peak Hold Data Logging Mode. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Transferring Data From The Sd Memory Card To A Computer
RS-232/USB cable between the product and terminal/PC and use the following setting to view the data stream. Terminal Settings: • Bits per second: 9600 • Data bits: 8 • Parity: None • Stop bits: 1 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 17: System Reset
After pressing the Reset pin, power the meter back up by holding the POWER button for 2 seconds. If resetting the meter does not resolve the issue, please return the meter to the nearest authorized REED distributor or authorized Service Center for repair. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 18: Battery Replacement
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 19: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 20 TEST & MEASURE WITH CONFIDENCE Access Our Product Guide www.REEDInstruments.com REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
