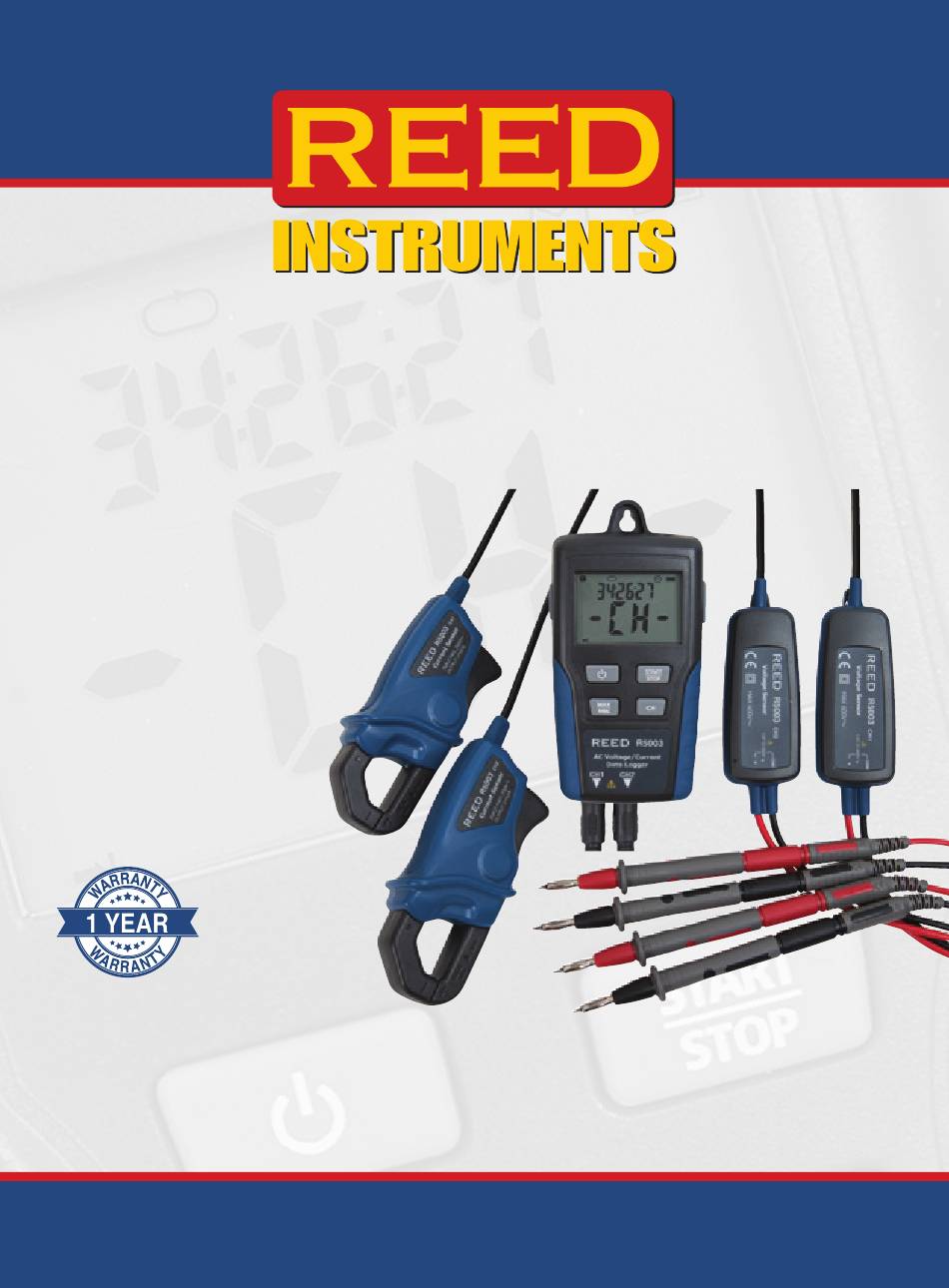

- Page 1 R5003 AC Voltage/Current Datalogger Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 11 Product Support ..................11 Introduction Thank you for purchasing your REED R5003 AC Voltage/Current Datalogger. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
• Do not expose the meter to direct sunlight, high temperatures or high moisture environments. • Switch off the meter after each use. • Remove the AAA batteries if the meter will be stored for long periods of time. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Features
• 2 x AC Current Clamp Sensors • 2 x Voltage Sensors • 4 x Large Alligator Clips • 4 x Basic Test Probes • USB Cable • Software • AC Adapter • Batteries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Specifications
0 to 122°F (0 to 50°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 10 to 75% Dimensions: 4.5 x 2.5 x 1.3" (114 x 63 x 34mm) Weight: 8.7oz (248g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Instrument Description
3. Continuous Recording 4. Maximum and Minimum Indicator 5. Memory Full Indicator 6. Battery Indicator 7. Auto Power Off Indicator 8. Normal Record Mode is selected Indicator (Default) 9. Selected Channel Indicator continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Meter Description
Meter Description R5003 9. AC Current Clamp Jaw 1. LCD Display 10. Jaw Opening Trigger 2. AC Adaptor Jack 11. Current Sensor Plug 3. POWER Button 12. Voltage Module 4. MAX/MIN Button 13. AC Voltage Probes/ 5. Channel Input Jacks Alligator Clips 6. -
Page 8: Supplemental Display Notes
Customer Service at info@reedinstruments.com or 1-877-849-2127. Software Operation The software operating guide can be found on the R5003 product page under the resources tab at www.reedinstruments.com REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
Press the POWER button to turn the meter on or off. Setup Mode Once the software has been installed, connect the R5003 to an available USB port on your PC with the included USB cable and power on the meter. -
Page 10: Auto Power Off
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 12 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
