Summary of Contents for Reed Instruments R4000SD

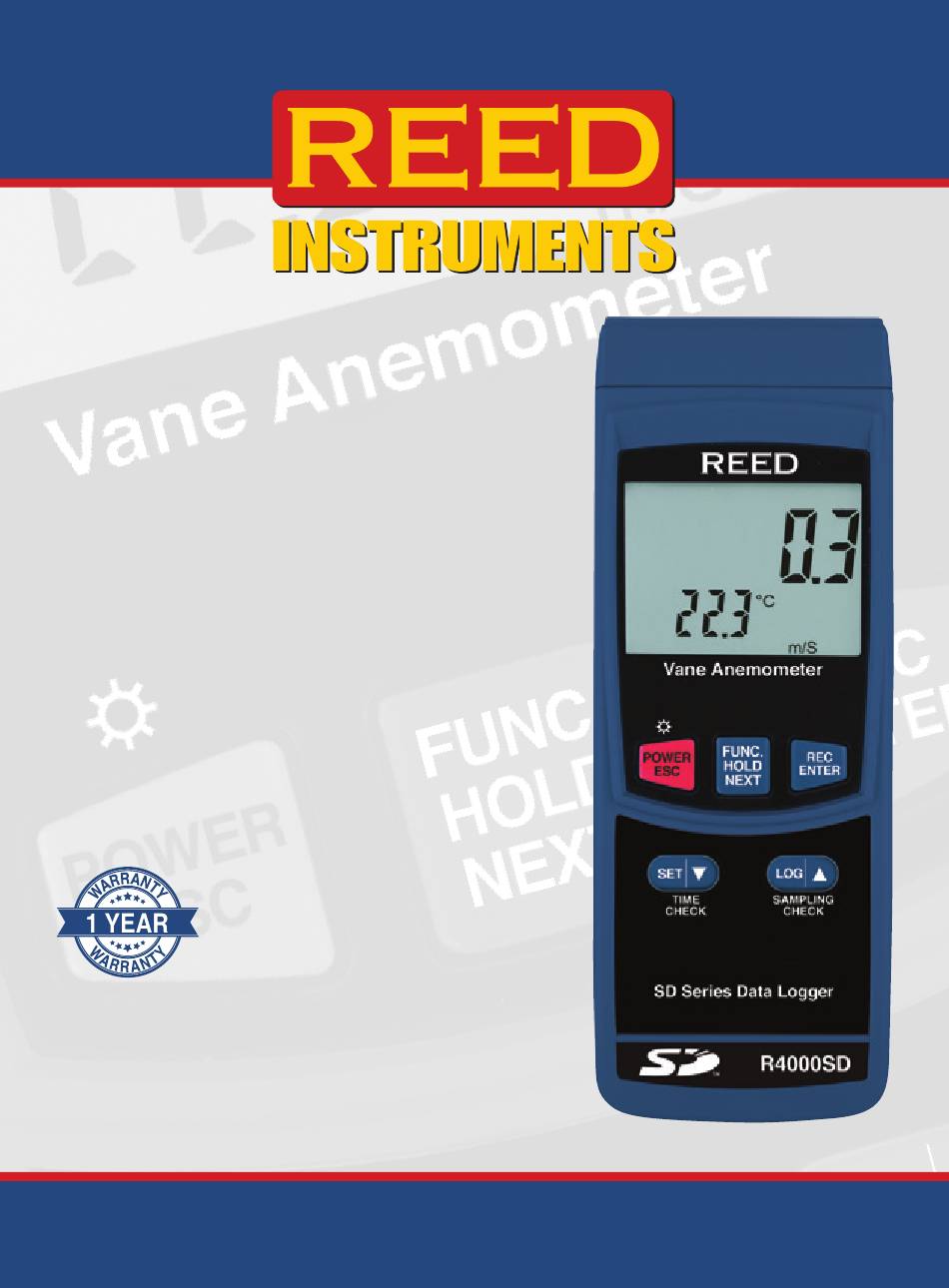

- Page 1 R4000SD Data Logging Vane Thermo- Anemometer Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Selecting the Temperature Unit of Measure (t-CF) ......14 Setting the Data Logging Sampling Rate (SP-t) ......... 14 Formatting the SD Card (Sd F) ............14 Verify Set Time and Date ..............15 Verify Sampling Rate ................15 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Product Disposal and Recycling .............. 21 Product Support ..................21 Introduction Thank you for purchasing your REED R4000SD Data Logging Vane Thermo-Anemometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Safety
Servicing should only be provided by an authorized service center. Features • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature • Contact temperature measurement with type J/K thermocouple option • Thermistor sensor for fast air temperature readings • Low friction ball-bearing, rotating vane probe ensures high accuracy readings • Real-time data logger with integrated SD memory card • User selectable sampling rate from 1 to 3600 seconds • Easy-to-read backlit LCD display • Data hold and Min/Max functions • Tripod mount on probe and instrument for long-term monitoring • Low battery indicator and auto shut off Included • Vane Probe • Hard Carrying Case • Batteries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Specifications
Display: 5-digit, Dual LCD Display Backlit Display: Data Hold: Min: Max: Datalogging Capabilities: Real-Time Clock and Date Stamp: Sampling Rate: Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 6 Low Battery Indicator: Power Supply: 6 x AA batteries or AC Adapter (optional) Data Output: Yes (RS-232) Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 80% Dimensions: 8 x 3 x 1.5" (203 x 76 x 38mm) Weight: 1.13lb (515g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 7: Instrument Description
Vane Anemometer FUNC. POWER HOLD ENTER NEXT TIME SAMPLING CHECK CHECK SD Series Data Logger R4000SD 1. LCD Display 10. Power Adapter Input 2. POWER/Backlight/ESC Button 11. Tripod Mounting Screw 3. SET/Down/TiME CHECK 12. Battery Cover Button 13. Kickstand 4. SD Card Slot 14. Type K/J Thermocouple input Jack 5. HOLD/FUNCTiON/... -
Page 8: Display Description
Display Description Knot Km/h 1. Measurement Reading Indicator 2. Date & Time Values/Measurement Modes indicator 3. Date/Time Stamp 4. Temperature Unit of Measure 5. Units of Measure 6. Maximum and Minimum indicators 7. Record Mode Indicator 8. Data Hold indicator 9. Low Battery Indicator REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
Turn the meter on by pressing the POWER button. To turn the meter off, press and hold the POWER button for 2 seconds. Note: This meter can be powered by either six (6) "AA" batteries or AC adapter (sold separately). Selecting Measurement Modes The R4000SD offers 2 types of measurement modes: • Air Velocity/Temperature measurement • Type K/J Thermometer measurement When the meter is on, press and hold the FUNCTiON button to toggle between "An" for air velocity/temperature and "tP" for Type K/J Thermometer measurement modes of operation. -
Page 10: Changing The Air Velocity Unit Of Measure
Select the "tP" function (see Selecting Measurement Modes for details). Plug the optional Type K or J Thermocouple Probe into the Type K/J thermocouple input jack. Note: Make sure to remove the rotating vane before inserting the thermocouple probe. The screen will display a "K", confirming that is configured by default to a Type K thermocouple probe. The measured temperature will now be displayed as shown below. Note: if using a type J thermocouple probe, see Selecting Thermocouple Type for details. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Data Hold
REC button for two seconds. When in recording mode the POWER button is disabled and the meter cannot be turned off. Backlight After powering the meter ON, the LCD Backlight will turn on automatically. Press the BACKLiGHT button to turn the LCD Backlight on or off. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Setup Mode
Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. The internal clock will keep accurate time when the meter is powered off. When new batteries are installed the clock will have to be reset. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Setting Data Decimal Format (Dec)
ON (enabled) or OFF (disabled). Press the ENTER button to confirm selection and skip to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Selecting Thermocouple Type (Type)
Setup menu when formatting is complete. Press the ESC button to exit the Setup mode and resume normal operation. Note: It is recommended that new SD cards should be formatted prior to first use. If the formatting process fails, the meter will display -E-. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Verify Set Time And Date
Press the ENTER button to confirm selection. Press the LOG button to save a reading to memory. "REC" will flash each time a data point is stored. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Automatic Data Logging
To pause the data logging session press the LOG button and "REC" will stop flashing. To resume press the LOG button again. To end the current data logging session pause the data logging session and hold the REC button until "REC" disappears. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 17: Transferring Data From The Sd Memory Card To A Computer
21.3 AMTemp C The raw data can be used to create a graph in Excel. See sample below: Value Unit Value Unit 8:14:05 8:14:08 8:14:10 8:14:12 8:14:14 8:14:16 8:14:18 8:14:20 8:14:22 8:14:24 8:14:26 8:14:28 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 19-07-10 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 18: Data Stream Output
Positif (+) = 0, Negatif (-) = 1 RS-232 Mono Jack Pin 2 (RX) Sleeve Pin 4 (DTX) °C = 01, °F = 02 Canal T1 = 1, T2 = 2, T3 = 3, T4 = 4 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 19: System Reset
Secure the battery cover with the two (2) Phillips screws. Applications • HVAC/R and Refrigeration Servicing • Detecting Filter Blockage • Condensers and Chillers Accessories and Replacement Parts R4000SD-PROBE Replacement Probe for R4000SD R2920 Surface Thermocouple Probe R2930 Right Angle Thermocouple Probe R2940 Air/Gas Thermocouple Probe R2950 Immersion Thermocouple Probe R2960 Needle Tip Thermocouple Probe... -
Page 20: Frequently Asked Questions (Faq's)
2 second sampling rate; the batteries lasted approx. 14 hours. Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. • Change the battery as needed. • if your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 21: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 22 TeST & MeASuRe wITh ConfIDenCe CheCk ouT ouR LATeST PRoDuCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
