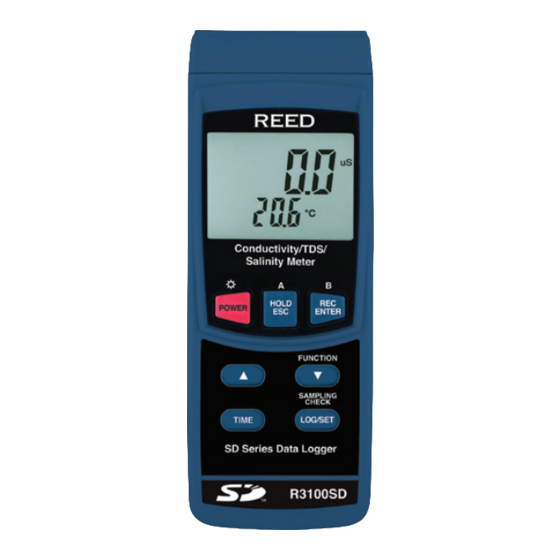

- Page 1 R3100SD Data Logging Conductivity/ TDS/Salt Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Enabling/Disabling the Beeper (bEEP) ..........13 Setting Data Decimal Format (dEC) ............ 13 Selecting the Temperature Unit of Measure (t-CF) ......14 Setting CD Temperature Compensation Factor (PEr C) ..... 14 ESC ....................14 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Product Disposal and Recycling .............. 22 Product Support ..................22 Introduction Thank you for purchasing your REED R3100SD Data Logging Conductivity/TDS/Salt Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Safety
20mS/cm, 200mS/cm Accuracy: ±(2%FS +1 dgt) Resolution: 0.1µS, 0.001mS, 0.01mS, 0.1mS TDS (Total Dissolved Solids) Measuring Range: 200, 2000, 20,000, 200,000 ppm Accuracy: ±(2%FS +1 dgt) Resolution: 0.1, 1, 10, 100 ppm continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 Product Certifications: Operating Temperature: Meter: 32 to 122°F (0 to 50°C) Probe: 32 to 140°F (0 to 60°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 80% Dimensions: 7 x 2.7 x 1.9" (177 x 68 x 45mm) Weight: 1.1lb (515g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Instrument Description
POWER ENTER FUNCTION SAMPLING CHECK TIME LOG/SET SD Series Data Logger R3100SD 10. RS-232 Output Jack 1. POWER/Backlight Button 11. Reset Pin 2. Up Button 12. Power Adapter Input Jack 3. TIME Button 4. SD Card Slot 13. Tripod Mounting Screw 5. -
Page 7: Display Description
Temperature Measurement Reading 10. Maximum and Minimum Indicators 3. Date/Time Stamp 11. Record Mode Indicator 4. Data Logging Status Indicator 12. Data Hold indicator 5. SD Card Status Indicator 13. Low Battery Indicator 6. Temperature Unit of Measure 7. PPM Multiplication Range Indicator REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Operating Instructions
Turn the meter on by pressing the POWER button. To turn the meter off, press, hold and release the POWER button for 2 seconds. Note: This meter can be powered by either six (6) "AA" batteries or AC adapter (sold separately). Selecting Measurement Modes The R3100SD offers 3 measurement modes: • Conductivity • Total Dissolved Solids • Salinity (Salt) When the meter is on, press the button to toggle between "Cd"... -
Page 9: Manual Ranging
LCD will display the solution temperature value. Salt Measurement Connect the conductivity probe into the input jack. Select "SALt" function (see Selecting Measurement Modes for details). Hold the probe handle and fully immerse the probe sensor into the solution under test. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Data Hold
When in recording mode the POWER button is disabled and the meter cannot be turned off. Backlight After powering the meter ON, the LCD Backlight will turn on automatically. Press the BACkLiGHT button to turn the LCD Backlight on or off. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Setup Mode
Press the ENTER button to confirm selection. Press the ENTER button again to re-confirm. The meter will format the SD card and automatically return to the Setup menu when formatting is complete. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Setting The Time And Date (Date)
Press the ENTER button to confirm each selection. Press the SET button to save the selected sampling rate and skip to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Enabling/Disabling Auto Power Off (Poff)
Press the buttons to select between bASIC and Euro. Press the ENTER button to confirm selection. Press the SET button to save and skip to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Selecting The Temperature Unit Of Measure (T-Cf)
Verify Set Time and Date During normal operation, press the TIME button once to display the hour, minute, seconds. Press the button again to display the year, month and day. Verify Sampling Rate During normal operation, press the SAMPLinG CHECk button to view the selected sampling rate. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Data Logging
Note: If a card is not inserted or the card is defective, the meter will flash "EMPTY". in this case, power the meter OFF and try again with another SD memory card or verify that the card is correctly inserted. To exit manual data logging mode, press and hold the REC button 2 seconds to resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Automatic Data Logging Mode
Degree_C 19-07-10 0:01:14 Degree_C 19-07-10 0:01:16 0.419 21.7 Degree_C 19-07-10 0:01:18 0.419 21.7 Degree_C 19-07-10 0:01:20 Degree_C 19-07-10 0:01:22 0.419 21.7 Degree_C 19-07-10 0:01:24 0.419 21.7 Degree_C 19-07-10 0:01:26 0.419 21.7 Degree_C continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 17: Calibration
Note: For single point calibration, use the 2mS/cm range (1.413mS Cal.). For multi-point calibration use the 2mS/cm range (1.413mS Cal.) first, followed by the other ranges (2mS/cm, 20mS/cm, 200mS/cm) if required. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 18: Clearing Conductivity Calibration Data
µS = 13, mS = 14, PPM =19, % = 03 1 = Upper display value, 2 = Lower display value 41131000001999 = Valeur supérieure, +199.9 S continued... Lecture REED Instruments Position décimale 0-3 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com Positif (+) = 0, Negatif (-) = 1... -
Page 19: 3.5Mm Terminal To Rs-232 Serial Connection
Remove the two (2) Phillips screws on the back of the meter directly located above the top of the kickstand. Remove the battery cover. Replace 6 x "AA" batteries. Secure the battery cover with the two (2) Phillips screws. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 20: Applications
• Water conditioning • General purpose pH measurement • Aquariums • Wastewater monitoring • Beverage production Accessories and Replacement Parts R3100SD-PROBE Replacement Probe for R3100SD R1430 Conductivity Standard Solution, 1413µs, 500ml R1500 Tripod RSD-ADP-NA Power Supply, 110V RSD-ADP-EU Power Supply, 220V CA-05A Soft Carrying Case R8888 Deluxe Hard Carrying Case... -
Page 21: Product Care
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 22: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 23 TeST & MeaSuRe wITh ConfIDenCe CheCk ouT ouR LaTeST PRoDuCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
