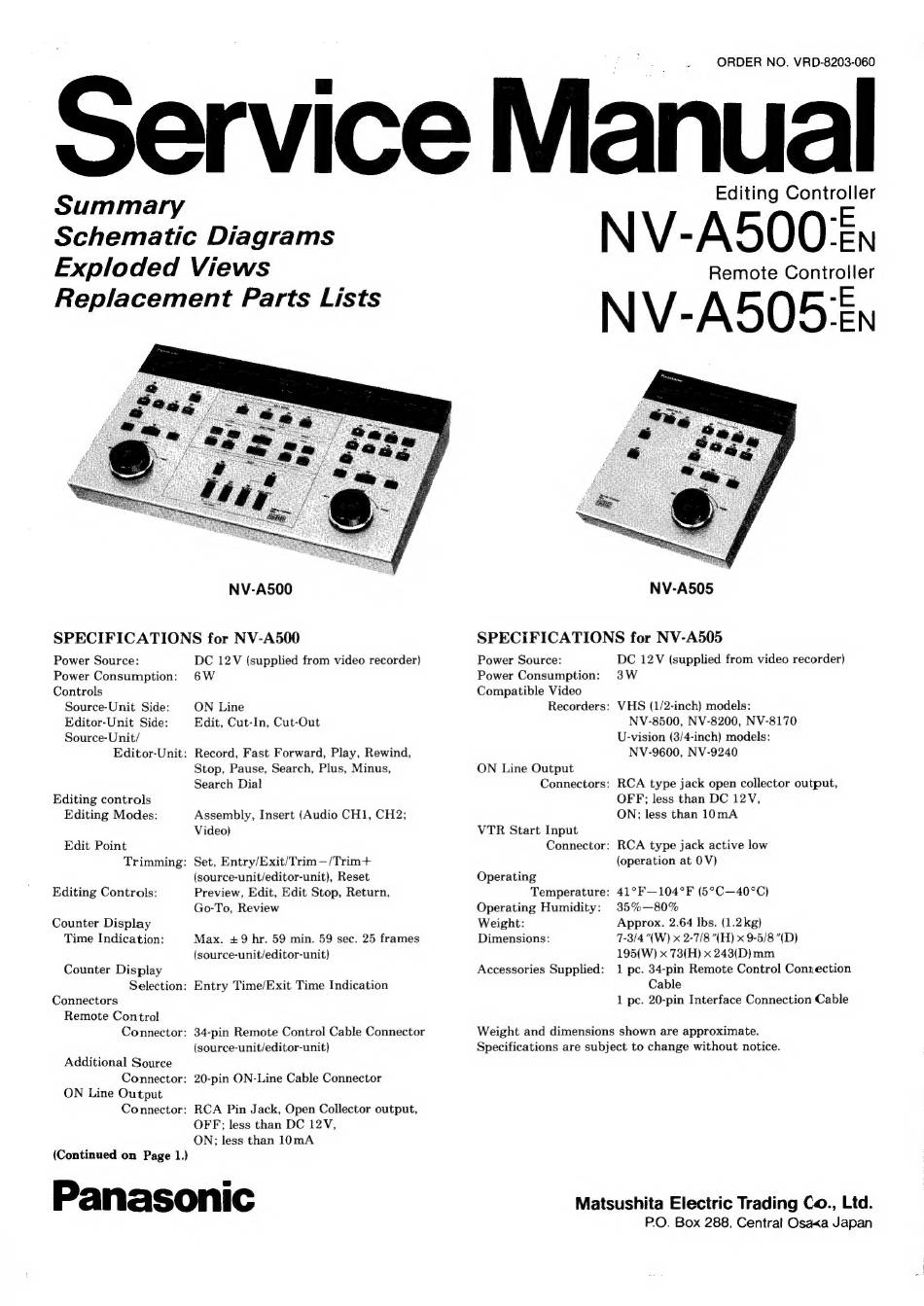

Panasonic NV-A500 Service Manual

Summary
Schematic Diagrams
Exploded Views
Replacement Parts Lists
ORDER NO. VRD-8203-060
Editing Controller
NV-A500%n
Remote Controller
NV-A505:n
NV-A500
SPECIFICATIONS for NV-A500
Power Source:
Power Consumption:
Controls
Source-Unit Side:
Editor-Unit Side:
Source-Unit/
Editor-Unit:
Editing controls
Editing Modes:
Edit Point
Trimming:
Editing Controls:
Counter Display
Time Indication:
Counter Display
Selection:
Connectors
Remote Control
Connector:
Additional Source
Connector:
ON Line Output
Connector:
(Continued on Page 1.)
DC 12V (supplied from video recorder)
6W
ON Line
Edit, Cut-In, Cut-Out
Record, Fast Forward, Play, Rewind,
Stop, Pause, Search, Plus, Minus,
Search Dial
Assembly, Insert (Audio CH1, CH2;
Video)
Set, Entry/Exit/Trim —/Trim+
(source-unit/editor-unit), Reset
Preview, Edit, Edit Stop, Return,
Go-To, Review
Max. +9 hr. 59 min. 59 sec. 25 frames
(source-unit/editor-unit)
Entry Time/Exit Time Indication
34-pin Remote Control Cable Connector
(source-unit/editor-unit}
20-pin ON-Line Cable Connector
RCA Pin Jack, Open Collector output,
OFF; less than DC 12V,
ON; less than 10mA
Panasonic
NV-A505
SPECIFICATIONS for NV-A505
Power Source:
Power Consumption:
Compatible Video
Recorders:
ON Line Output
Connectors:
VTR Start Input
Connector:
Operating
Temperature:
Operating Humidity:
Weight:
Dimensions:
Accessories Supplied:
DC 12V (supplied from video recorder)
3W
VHS (1/2-inch) models:
NV-8500, NV-8200, NV-8170
U-vision (3/4-inch) models:
NV-9600, NV-9240
RCA type jack open collector output,
OFF; less than DC 12V,
ON; less than 10OmA
RCA type jack active low
(operation at 0V)
41°F—104°F (5°C—40°C)
35 %—80%
Approx. 2.64 Ibs. (1.2kg)
7-3/4 (W) x 2-7/8 (H) x 9-5/8 "(D)
195(W) x 73(H) x 243(D) mm
1 pc. 34-pin Remote Control Connection
Cable
1 pe. 20-pin Interface Connection Cable
Weight and dimensions shown are approximate.
Specifications are subject to change without notice. |
