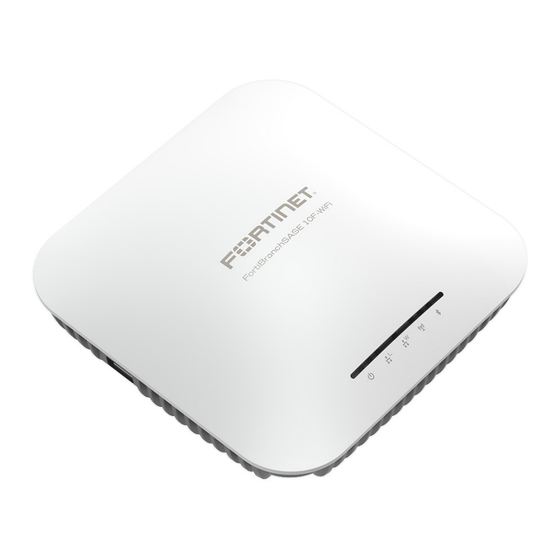

FortiBranchSASE 10F–WiFi
FBS-10F-WiFi
快速安裝手冊

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiBranchSASE 10F-WiFi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fortinet FortiBranchSASE 10F-WiFi

  • Page 1 FortiBranchSASE 10F–WiFi FBS-10F-WiFi 快速安裝手冊...
  • Page 2 Copyright © 2024 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
  • Page 3 包 裝 內 容 LED 指示燈 QuickStart Guide FortiBranchSASE 10F–WiFi Power (PoE 802.3af/at or 12V DC 3A) WiFi (5GHz & 2.4GHz 2x2 MU-MIMO) (Model: FBS-10F-WiFi) Off: Device is off. Off: Radios 1 and 2 are off. Green: Device is on. Blue: Radio 1 is on.
  • Page 4 介 面 安裝槽和橡膠腳墊 OPTIONAL POWER (12V DC) 選購12V DC/3A變壓器 RESET 重置設備 CONSOLE (RJ-45) CLI管理電腦介面 MOUNTING SLOTS 將設備掛在牆上 WAN (RJ-45) 1 Gbps乙太網路介面 RUBBER FEET 保護設備和桌面或平坦的表面 LAN/POE (RJ-45) 1 Gbps 802.3af/at PoE 乙太網路介面 KENSINGTON LOCK 將設備固定在固定物上 USB 3.0 (Type A) 軟體GPIO控制電源, 5V/0.5A.
  • Page 5 基本連線設定 IP 設定 連接FortiBranchSASE網路介面後,設備會自動嘗試從DHCP伺服器取得IP位址。如果 不使用DHCP,您可以設定靜態IP位址。 FortiGate FortiBranchSASE 配置靜態IP位址: 使用網路線將裝置的LAN/PoE連接埠連接到電腦的乙太網路連接埠。 2. 將電腦乙太網路連接埠設定為DHCP模式。 在Web瀏覽器中輸入預 設管理位址:192.168.200.99 4. 在使用者名稱和密碼欄位中,輸入「admin」並按下鍵盤上的Enter鍵。 前往Networking > Interface,您將在其中看到所有系統接口。 6. 選擇目標接口,將其設定為「static」模式,配置靜態IP 位址,然後按一下 1. 將乙太網路纜線的一端插入FortiBranchSASE設備上的WAN連接埠。 「Save」。 2. 將乙太網路電纜的另一端插入FortiGate設備的LAN連接埠,並確保FortiGate介面在 連接到FortiBranchSASE的WAN連接埠時提供DHCP伺服器服務,以便向 FortiBranchSASE頒發IP位址。 備註: 如果您不使用PoE,您可以使用電源供應器將裝置連接到電源插座。 備註: 如果您是首次登入設備,系統會提示您變更預設密碼。我們強烈建議您 本設備符合IEEE 802.3af/at PoE規範。不要使用任何不符合IEEE 802.3af/ 立即更改密碼。 警告: at標準的PoE供電器,因為它們可能會損壞您的裝置。...
  • Page 6 安 裝 安裝在牆上 FortiBranchSASE 10F–WiFi(型號:FBS-10F-WiFi)設備設計用於放置在桌子上或使用 提供的壁掛式安裝支架安裝在牆上。 撕下鑽孔模板貼紙,並將其貼在牆上所需的位置。 放置在桌子或平坦表面上 使用模板標記並鑽定位孔。 1. 將橡膠腳安裝到設備底部的四個角落。 將錨栓插入孔中。 2. 將設備放置在桌面或平坦的表面上。 將螺絲穿過牆壁安裝支架的四個安裝孔插入牆壁上的錨栓中並旋緊。 5. 握住裝置面向您,將其從右向左滑入牆壁安裝支架,直到鎖定。 3. 如有必要,用Kensington鎖將設備固定在適當的位置。(備註:產品包裝內不含 Kensington 鎖。)...
  • Page 7: Regulatory Notices

    Fortinet or Fortinet’s authorized partners may following two conditions: indicated for that type, are strictly prohibited for use with this device. not comply with EU Directives and Fortinet makes no assurances for 1.This device may not cause interference. Regulatory Notices such products.
  • Page 8 Lietuvių 載: The product transmits within the frequency ranges and less than or Šis gaminys atitinka direktyvą 2014/53/ES. equal to the power listed below: https://www.fortinet.com/bsmi Malti 2402–2480 MHz less than 20 dBm 英屬蓋曼群島商防特網股份有限公司台灣分公司 2405–2480 MHz less than 20 dBm Dan il-prodott huwa konformi mad-Direttiva 2014/53/UE.
  • Page 9 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
