Summary of Contents for Hohem iSteady X3 SE

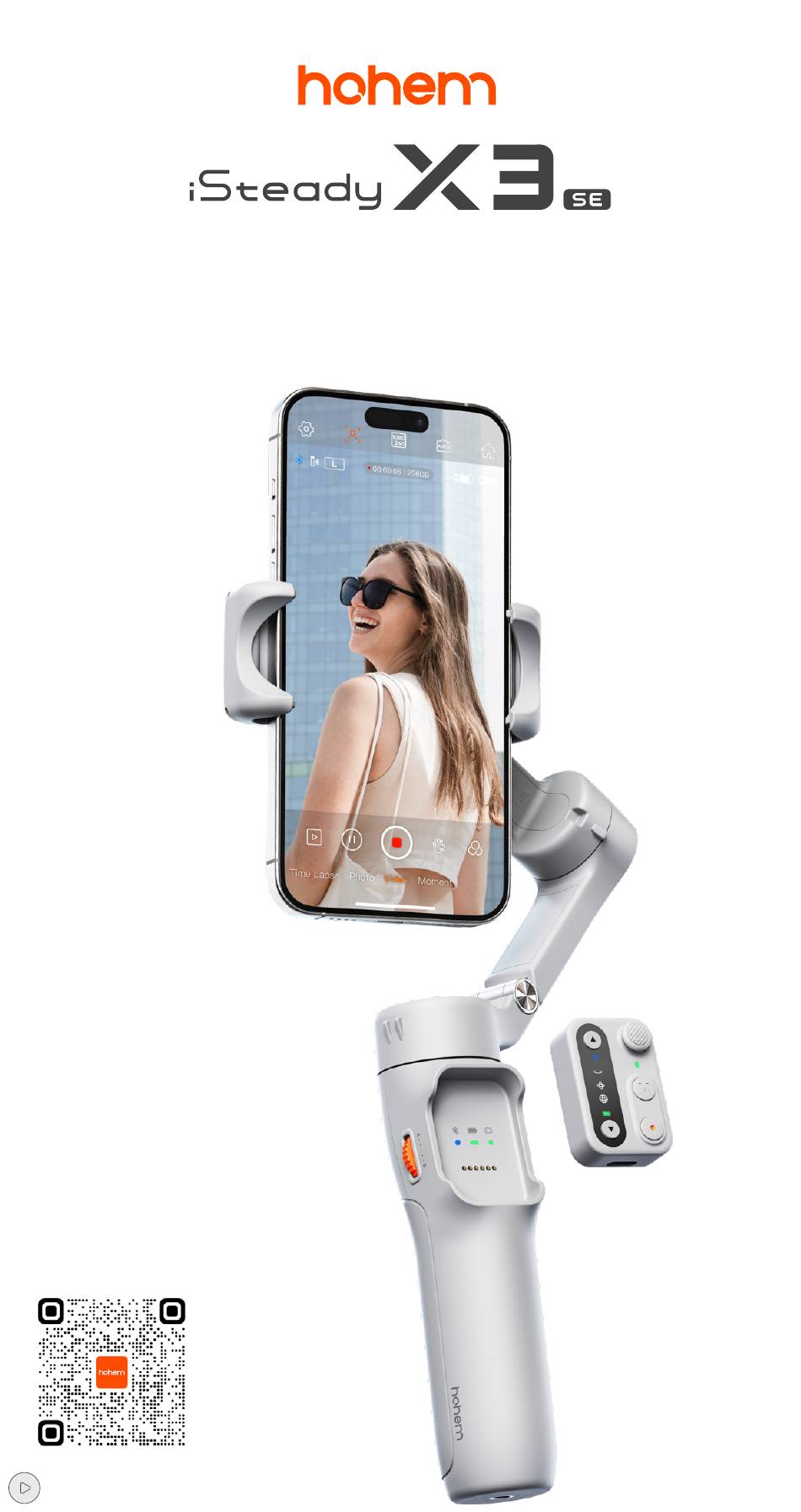

- Page 1 User Manual V1.0 Tutorial Video...
-
Page 2: Table Of Contents
07 Buttons & Working Mode · ··············· Buttons ··························· Working Mode · ······················ 08 Remote Control Operation · ·············· 09 Indicators · ························ 10 Hohem Joy App ······················ Downloading ························ Gimbal Connection · ··················· Camera Interface · ···················· 11 Auto Calibration & Firmware Update · ········... -
Page 3: Product List
Product List iSteady X3 SE Remote Controller USB-C Charging Cable Tripod Storage Pouch Quick Start Guide Warranty Card... -
Page 4: Overview
Overview Front ① Phone Clamp ② Folding Lock ③ Folding Arm ④ Mounting Hole ⑤ Side Wheel ⑥ Bluetooth Indicator ⑦ Gimbal Battery Indicator ⑧ Remote Connection Indicator ⑨ Pogo Pins Magnetic Remote Controller ⑮ Joystick ⑩ Adjustment Button & Indicator ⑯ Remote Connection ⑪ Bluetooth Indicator Indicator ⑰ Function ⑫ Working Mode Button Indicator ⑱ Mode Button ⑬ Gimbal Battery Indicator... -
Page 5: Charging
㉗ Handle ㉘ 1/4"-20 Screw Hole Charging Please fully charge iSteady X3 SE before using it for the first time. Charging Method: Please use the standard USB-Type C charging cable to connect to the Type-C charging port on the gimbal handle for charging. -
Page 6: Unfolding & Folding
① ② Folding lock Mounting hole Usage Modes There are 2 usage modes of iSteady X3 SE: Handheld Mode, and Remote Mode. Handheld Mode Simply unfold the gimbal for on-the-go shooting. -
Page 7: Bluetooth Connection
Press five times: Enter auto calibration Side Wheel Scroll up: Zoom in* Scroll down: Zoom out* *Used within the Hohem Joy app after Bluetooth connection. Press five times: Re-pair the remote control Press seven times: Clear the Bluetooth connection between gimbal and mobile... -
Page 8: Working Mode
Working Mode iSteady X3 SE three-axis gimbal includes three axes of rotation: pan, tilt, and roll axes. The collaborative work between different axes results in the creation of 4 Working Modes, each tailored to specific filming needs: Tutorial Video Roll axis... -
Page 9: Remote Control Operation
*Notes: This feature requires the gimbal to be connected to the smartphone via Bluetooth. 2. It is available exclusively through the Hohem Joy App after connecting via Bluetooth. 3. When the remote control is attached to the gimbal, it can... -
Page 10: Indicators
Indicators Gimbal Handle ① ② ③ Solid light: Bluetooth connected Quick flash*3: Bluetooth pairing cleared (remote control power on/off) ① Bluetooth Indicator Slow flash: Gimbal firmware updating Off: Bluetooth disconnected Solid light: Battery level 50%-100% Solid light: Battery level 20%-50% ② Gimbal Battery Solid light: Low battery Indicator Quick flash: Shutting down soon... - Page 11 Remote Control ② ⑤ ① ③ ④ Solid light: Roll rotation control Off: Zoom in/out ① Adjustment Indicator Solid light: Bluetooth connected Quick flash*3: Bluetooth pairing cleared (remote control power on/off) Slow flash: Gimbal firmware updating ② Bluetooth Off: Bluetooth disconnected Indicator ③ Working Mode Slow flash: Auto Calibration Indicator...
-
Page 12: Hohem Joy App
Hohem Joy App Downloading Scan the QR code or search "Hohem Joy" in App Store / Google Play to download the App. Download on the Gimbal Connection ① Attach your smartphone and turn on iSteady X3 SE. ② Turn on Bluetooth on your smartphone. -
Page 13: Auto Calibration & Firmware Update
Mode indicators pulsing, indicating standby mode. Double-tap the power button to exit standby and retry calibration. Firmware Update You will be prompted in the Hohem Joy App if a new firmware update is available. Follow the on-screen instructions in the App to update firmware. -
Page 14: Specifications
Mobile Phone Width 58mm~98mm Battery Capacity 7.4V/1100mAh Approx. 11 hours Operating Time *Data sourced from Hohem Laboratory. Measured under ideal conditions with the gimbal fully balanced. Charging Time Approx. 2 hours (5V-2A) Power Consumption 0.8W (Measured under ideal conditions.) Pan: -120° to 210°... -
Page 15: Compliance Information
EM emission above the reference level as specified in EC Council Recommendation(1999/519/EC). Hereby,[Shenzhen Hohem Technology Co.,Ltd.] declares that the radio equipment type [HPG-X3 SE, HRT-04] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www. - Page 16 RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. IC Statement This device complies with CAN ICES-003 (B)/NMB-003(B). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 17: Warning & Disclaimer
Warning & Disclaimer Thank you for purchasing the Hohem product. By using this product, you hereby signify that you have read this disclaimer and warning carefully. In addition, you understand and agree to abide by the terms and conditions herein. You acknowledge that you are solely responsible for your own conduct while interacting with this product, and for any consequences thereof. -
Page 18: Warranty Terms
Warranty Terms ① Customers are entitled to replacement service in case of quality deficits or functional disorders found in the product within fifteen (15) calendar days of receiving a product. ② The valid warranty period is 12 months counting from the date of selling under normal use. Accessories are excluded from the warranty service. -
Page 19: Call Center -Toll Free
CALL CENTER -Toll Free UNITED STATES: +1(888)9658512 Mon-Fri: 9:00AM-5:00PM(EST) UNITED KINGDOM: +44(0)808 2737578 Mon-Fri: 2:00PM-10:00PM(GMT +0) CANADA: +1(855)758 8939 Mon-Fri: 9:00AM-5:00PM(EST) BRAZIL: +55 (0)800 5911897 Mon-Fri: 10:00AM-6:00PM(GMT -3) Email: service@hohem.com Website: www.hohem.com Manufacturer: Connect us at Shenzhen Hohem Technology Co., Ltd. Facebook... - Page 20 www.hohem.com...
