hohem iSteady V3 - Stabilizer Manual

Product List

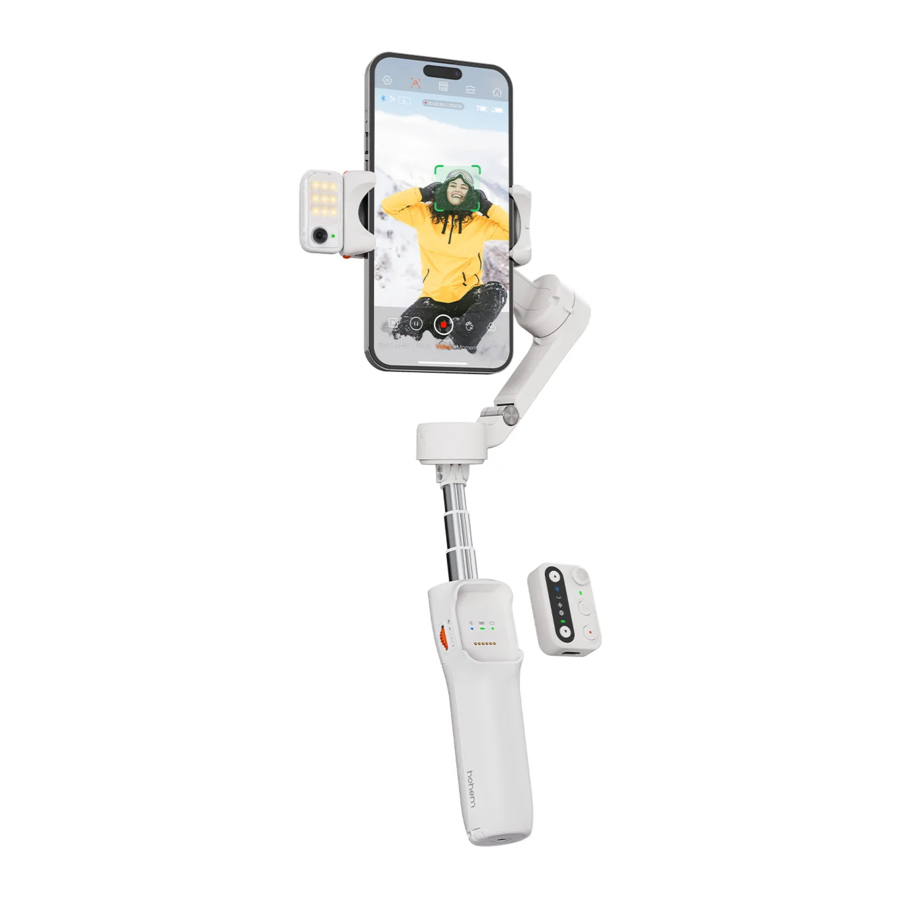

Overview

Front

Back
If the pan motor's base is loose, use the included hex key to tighten the hex screw clockwise.

Charging

Please fully charge iSteady V3 before using it for the first time.

Charging Method:
Please use the standard USB-Type C charging cable to connect to the Type-C charging port on the gimbal handle for charging. *It is recommended to use a 5V-2A USB charger (not included).

Charging Status:

1. Battery indicator light flashing slowly indicates charging is in progress (different colors correspond to the current battery level).
2. Battery indicator light staying solid green indicates charging is complete.

Unfolding & Folding

*Not compatible with Xiaomi 11 Ultra/12S Ultra/13 Ultra/14 Ultra.

Unfolding & Mounting

1. Pull the arm as shown.

2. Stretch the phone clamp to adapt to your smartphone's width and attach it to the center of the phone.

3. Press and hold - Power on/off


To set the default orientation for your smartphone upon startup with the iSteady V3:
*Ensure that the gimbal's Bluetooth is connected to your smartphone.
For a detail explanation, please check Bluetooth Connection.

Tutorial Video

• Do not power on the gimbal without mounting a phone.
• If the phone is not centered during startup, it will reduce the gimbal's battery life. The gimbal will automatically enter standby mode if it detects no load or severe imbalance.
• When using the gimbal, avoid touching the pogo pins with your fingers to prevent poor contact.

Remove the phone. Hold the handle and fold the arm downward and snap the folding lock and the mounting hole together as shown.

Bluetooth Connection

1. Make sure the gimbal is powered on.
2. Activate Bluetooth on your smartphone and select the device named "SV3-XXXXXX" from the list of available devices.
3. Follow the on-screen instructions to connect and pair.
4. A steady light on the Bluetooth indicator signifies a successful connection.

Usage Modes

There are 3 usage modes of iSteady V3: Handheld Mode, Extended Mode, and Remote Mode.

Handheld Mode
Simply unfold the gimbal for on-the-go shooting.

Extended Mode
Pull out the built-in extension rod upwards and slightly tilt the hinge area to the preferred angle for shooting. *The extension rod includes three segments with a maximum length of 205mm. Adjust the angle from 0° to 90°.

Remote Mode
Fully pull out the legs and unfold. Stand the gimbal on a desktop surface and remove the remote controller for long-distance remote shooting.

• For increased stability in a wider range of scenarios and conditions, you can also connect iSteady V3 to an external tripod via the 1/4"-20 Screw Hole.
• To retract the tripod, carefully push the legs in.

AI Tracking

Mount the AI Tracker
Attach the magnetic AI tracker, make sure it is aligned with the magnetic mount.

Turn on the AI Tracker
Toggle the switch to "ON". The fill light will flash twice quickly to indicate successful activation.
*Toggle the switch to "OFF" to turn off the AI Tracker.

Tutorial Video

Start AI tracking (Indicator light turns green)	Stop AI tracking (Indicator light turns red)	Customized Composition (Indicator light flashes green quickly)
Landscape	Portrait	Shutter Control: Trigger a 3-second countdown for taking a photo/ video. Bluetooth connection needed.

Customized Composition
How to make AI vision positioning adjustments?
If the framed subject cannot be centered on the phone/camera screen, or you want to customize the AI vision position to be tracked:

1. Make sure the gimbal & AI vision sensor are on.
2. Take the gesture towards the AI vision sensor and the indicator blinks green quickly.
3. Move in front of the screen until you find the preferred position to be tracked.
4. Show the gesture to lock the position and create ideal composition (the indicator stops flashing).

Tutorial Video

Front/Rear Tracking
Press and hold the safety locks on both sides of the phone clamp at the same time to unlock it. Remove the AI tracker, rotate it 180°, and then mount the AI tracker.

1. Attempting to remove the AI tracker without unlocking it first may result in structural damage to the product.
2. When using the AI tracker, it is normal for the pogo pins at the bottom to become hot. Please avoid direct contact to prevent burns!


Buttons & Working Mode

Buttons

	Power Button Long press: Power on/off Press twice: Enter standby mode(to exit, press twice again) Press five times: Enter auto calibration
	Side Wheel Long press: Turn the fill light on or off (requires AI tracker to be attached) Press twice: Switch between cool, warm, and neutral light Scroll up: Increase the brightness Scroll down: Decrease the brightness Press five times: Re-pair the remote control Press seven times: Clear Bluetooth and remote connections
	Trigger Press twice: Recenter the gimbal Press three times: Change the phone between forward-facing and backward-facing Long press: Enter All Lock Mode(L) (release the trigger to exit)
	Type-C Charging Port Connect to the power supply to charge the gimbal.
	1/4"-20 Screw Hole Connect to other accessories, such as a tripod.

Working Mode
iSteady V3 three-axis gimbal includes three axes of rotation: pan, tilt, and roll axes. The collaborative work between different axes results in the creation of 4 Working Modes, each tailored to specific filming needs:

Tutorial Video

	Pan Follow Mode(PF) Axes Engaged: Pan axis is active; Roll and Tilt axes are locked. Functionality: The gimbal allows the phone to pan left or right smoothly following the operator's movements, while maintaining a steady tilt and roll position.
	Pan and Tilt Follow Mode(PTF) Axes Engaged: Both Pan and Tilt axes are active; Roll axis is locked. Functionality: This mode enables the phone to follow the operator's pan (left/right) and tilt (up/down) movements, offering more dynamic control over the framing. The roll axis remains locked to keep the horizon level.
	Point of View Mode(POV) Axes Engaged: All three axes (Roll, Tilt, and Pan) are active. Functionality: This mode allows the phone to follow the operator's movements in all directions, It offers a "first-person" perspective, capturing footage as if the viewers are seeing through the operator's eyes.
	All Lock Mode(L) Axes Engaged: All three axes (Roll, Tilt, and Pan) are locked. Functionality: In Lock Mode, the phone's orientation remains fixed regardless of the gimbal's movements.

Remote Control Operation

*Note:

• When attached to the gimbal, the remote control automatically powers on and pairs once the gimbal is on. The gimbal also charges the remote during this time.
• If detached from the gimbal, the remote needs to be powered on separately. It will automatically pair with the gimbal upon powering on.

1. Joystick
   Push vertically and horizontally to change the tilt and pan axis directions.
   Press twice: Switch between zoom and roll control
   Long press: Turn the fill light on/off.

2. Adjustment Button
   Zoom/Roll rotation/Fill light control
   Long press: Control zoom*/roll rotation
   Press once: Control fill light brightness
   Press twice: Switch fill light temperature
   *Zoom control is available exclusively through the Hohem Joy App after connecting via Bluetooth.

3. Function Button
   Press twice: Recenter the gimbal
   Press three times: Change the phone between forward-facing and backward-facing
   Press five times: Re-pair the remote control
   Press seven times: Clear Bluetooth connection
   Long press: Enter All Lock Mode(L) (release button to exit)

4. Mode Button
   Press once: Switch working Modes
   Press twice: Switch between landscape and portrait mode
   Press three times: Auto 180° roll rotation
   Press five times: Enter auto calibration

5. Shutter Button
   Press once: Take a photo or start/stop recording [1]
   Press twice: Switch between photo/video mode [2]
   Press three times: Switch between front/rear cameras [2]
   Long press: Remote control power on/off [3]


*Notes:

1. This feature requires the gimbal to be connected to the smartphone via Bluetooth.
2. It is available exclusively through the Hohem Joy App after connecting via Bluetooth.
3. When the remote control is attached to the gimbal, it can simultaneously power the gimbal on/off.

Indicators

Gimbal Handle

Bluetooth Indicator		Solid light: Bluetooth connected
		Quick flash *3: Bluetooth pairing cleared (remote control power on/off)
		Slow flash: Gimbal firmware updating
		Off: Bluetooth disconnected
Gimbal Battery Indicator		Solid light: Battery level 50%-100%
		Solid light: Battery level 20%-50%
		Solid light: Low battery
		Quick flash: Shutting down soon *Battery indicator light flashing slowly indicates charging (different colors correspond to the current battery level)
Remote Connection Indicator		Solid light: Remote connected
		Quick flash *3: Gimbal power on/off
		Slow flash alternately: Remote control re-pairing
		Off: Remote control disconnected
		Slow flash: Gimbal overloading
		Solid light: Gimbal firmware anomaly
		Pulse: Gimbal standby

Remote Control

Adjustment Indicator	Solid light: Roll rotation control
	Flash: Fill light control
	Off: Zoom in/out
Bluetooth Indicator	Solid light: Bluetooth connected
	Quick flash *3: Bluetooth pairing cleared (remote control power on/off)
	Slow flash: Gimbal firmware updating
	Off: Bluetooth disconnected
Working Mode Indicator	PF
	PTF
	POV
	L
	Slow flash: Auto Calibration
	Pulse: Gimbal standby
Gimbal Battery Indicator	Solid light: Battery level 50%-100%
	Solid light: Battery level 20%-50%
	Solid light: Gimbal Low battery
	Quick flash: Gimbal Shutting down soon
	*Battery indicator light flashing slowly indicates charging (different colors correspond to the current battery level)
Remote Connection Indicator	Solid light: Remote connected/Charging complete
	Slow flash: Charging/Firmware updating
	Quick Flash *3: Remote power on/power off/paired
	Slow flash alternately: Remote control repairing
	Off: Remote control disconnected
	Solid light: Remote low battery level
	Slow flash: Remote shutting down soon

Hohem Joy App

Downloading
Scan the QR code or search "Hohem Joy" in App Store / Google Play to download the App.

Gimbal Connection

1. Attach your smartphone and turn on iSteady V3.
2. Turn on Bluetooth on your smartphone.
3. Open the Hohem Joy App. Follow the on-screen instructions to complete the connection.

Camera Interface

1	Shooting Parameters	Set shutter speed, ISO and EV.
2	Resolution and Frame Rate	Set resolution and video frame rate.
3	AI Tracking	Choose between AI face tracking and AI object tracking.
4	General Settings	Includes gimbal parameters*, camera parameters, and gimbal information. *You can configure the gimbal to default to either landscape or portrait mode upon startup.
5	Creative Studio	Provides shooting tutorials and ideas according to the situation or environment.
6	Zoom/Focus	Adjust Zoom Control and Focus Control.
7	Flash	Adjust the flash.
8	Filter	Select a photo or a video filter.
9	Gesture Control	Display Gesture Control settings and select from shoot, follow, or shoot with follow. In photo mode, perform to trigger a countdown for taking a photo. In video mode, a starts a countdown to begin recording, and stops the recording.
10	Front/Rear	Tap to switch between the front and rear cameras of your smartphone.
11	Moment Templates	Various video templates are available; simply tap to start, and the camera will automatically execute the moves to create a video.

For more information, visit www.hohem.com, or scan the QR code to view tutorials.

Auto Calibration & Firmware Update

Auto Calibration
Auto calibration could reduce drift or slight deviation caused by nearby magnetic interference or human error.

*Note:

• During the auto calibration process, ensure that the remote control is connected to the gimbal.
• Failing to place the gimbal on a flat surface for calibration will result in calibration failure (e.g., attempting calibration while holding it in a vehicle).
• If calibration fails, you'll hear two beeps and see the Working Mode indicators pulsing, indicating standby mode. Double-tap the power button to exit standby and retry calibration.

Firmware Update
You will be prompted in the Hohem Joy App if a new firmware update is available. Follow the on-screen instructions in the App to update firmware.

Specifications

iSteady V3

AI Tracker
