Summary of Contents for Hohem iSteadyMobile Plus

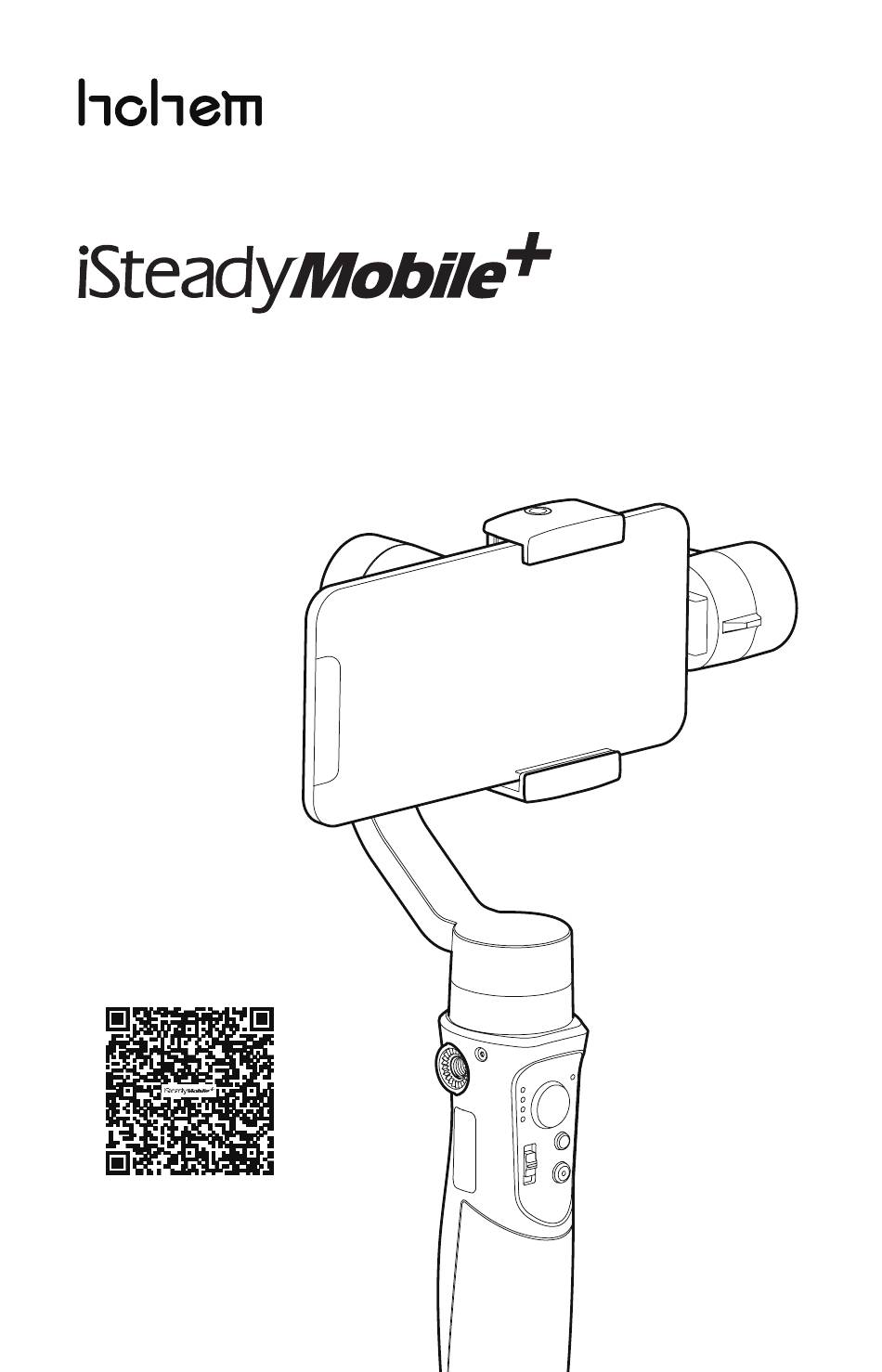

- Page 1 3-Axis Stabilizing Gimbal for Smartphone User Manual V1.0 For more tutorial videos please scan YouTube QR code...
- Page 2 DISCLAIMER Thank you for purchasing the Hohem product. By using this product, you hereby signify that you have read this disclaimer and warning carefully and that you understand and agree to abide by the terms and conditions herein. You agree that you are solely responsible for your own conduct while using this product, and for any consequences thereof.
-
Page 3: Product Overview
Product Overview Roll 320° Tilt 320° ⓬ ❶ ⓮ ⓭ Pan 600° ❷ ❽ ❻ ❾ ❸ ❿ ⓯ ❼ ⓫ ⓰ ❹ ❺ ❶ Roll Motor ❾ Joystick ❷ Pan Motor ❿ Mode Button ❸ 1/4 Inch Extension Screw Hole ⓫... -
Page 4: Accessories List
Download the APP to register for free membership and one-year extended warranty. * Hohem Joy supports iOS 10.0 and Android 6.0 or later. * Search for 'Hohem Joy' in the App Store or Google Play and follow the instructions to install the app. - Page 5 1 LED light on: 25% App "Hohem Joy" Bluetooth Connection 1.Enable the Bluetooth on the smartphone. 2.Launch the app 'Hohem Joy', click 'START' to enter the interface for photo taking and recording. (Please only enable the phone Bluetooth and connect Bluetooth in the app)
- Page 6 Landscape Mode: Mounting and Balancing *Do not turn on the gimbal without roughly balanced and smartphone mounted on! *Highly recommended to remove the phone case before mounting your phone. *For increasing motor efficiency and stabilization, and saving gimbal battery life, you could roughly balance the gimbal before turning it on.
- Page 7 ❹ Tighten the knob. ❺ Long press the power button to power on. * Max Payload: 280g *The width of phone clamp: 58mm~89mm Portrait Mode: Mounting and Balancing *Please turn off the gimbal first, then rotate the phone clamp and mount the phone. *Do not turn on the gimbal without roughly balanced and smartphone mounted on! Leftmost...
- Page 8 ❷ Rotate the phone ❹ Pull the phone clamp and mount clamp 90 degrees. the phone. Adjust the phone up or down to roughly balance the gimbal. ❺ Push the phone holder to ❻ Long press the power button for the right and make the phone 3 seconds to turn on the gimbal.
- Page 9 ❶ Joystick Push Up/Down Push Left/Right Tilt Control Pan Control ❷ Mode Indicator PF: Pan Follow L: AII Locked PTF: Pan & Tilt Follow POV: All Follow & Inception ❸ Slider Focus/Zoom in & out (Only available in the app) ❹...
- Page 10 Gimbal Mode Button Tap the button to switch different working modes with light on. PF (Pan Follow) Default mode, tilt & roll axis both locked, camera is able to move to left or right smoothly. PTF (Pan & Tilt Follow) Roll axis locked, camera is able to move to left/right, and tilt up/down.
- Page 11 1. Make sure to mount the mobile phone before powering on the gimbal. 2. If the mobile phone is too heavy or too light, adjust the motor power through the app (Hohem Joy-Settings-Motor response). Q: Why the phone app cannot be connected with the gimbal via Bluetooth? 1.
- Page 12 Clear the paired remote control While pressing the Push up mode button the slider *Or clear the paired remote control: Push up the slider while pressing the mode button, Bluetooth light flashes green for 5 times, and then try again. *For some Android phones Bluetooth connection: 1.
-
Page 13: Specifications
Specifications Weight 474g include battery Main Material High performance composite Payload 280g Mobile Width 58mm~89mm Supported Battery Capacity 1800mAh/7.4V Working Time 13 hours Charging Time 1.5 hours Mechanical Panning：600° Range Rolling：320° Tilting：320° Working -10~45° C Temperature Motors Gimbal is able to power off automatically Protection due to improper operation of the motors. -
Page 14: Warranty Terms
Warranty Terms Within 15 days upon the purchase date. Any functional disorder or quality problem enjoys free replacement service. But ensure the commodity and package with no damage, and we will offer a brand new replacement after confirming the product problem. Warranty valid only under normal use. -
Page 15: Warranty Card
Warranty Card User Name： Contact No.： Address： Purchase Date： Prod. Serial No.： Failure Cause： Service Record：...
