Summary of Contents for Hohem iSteady M7

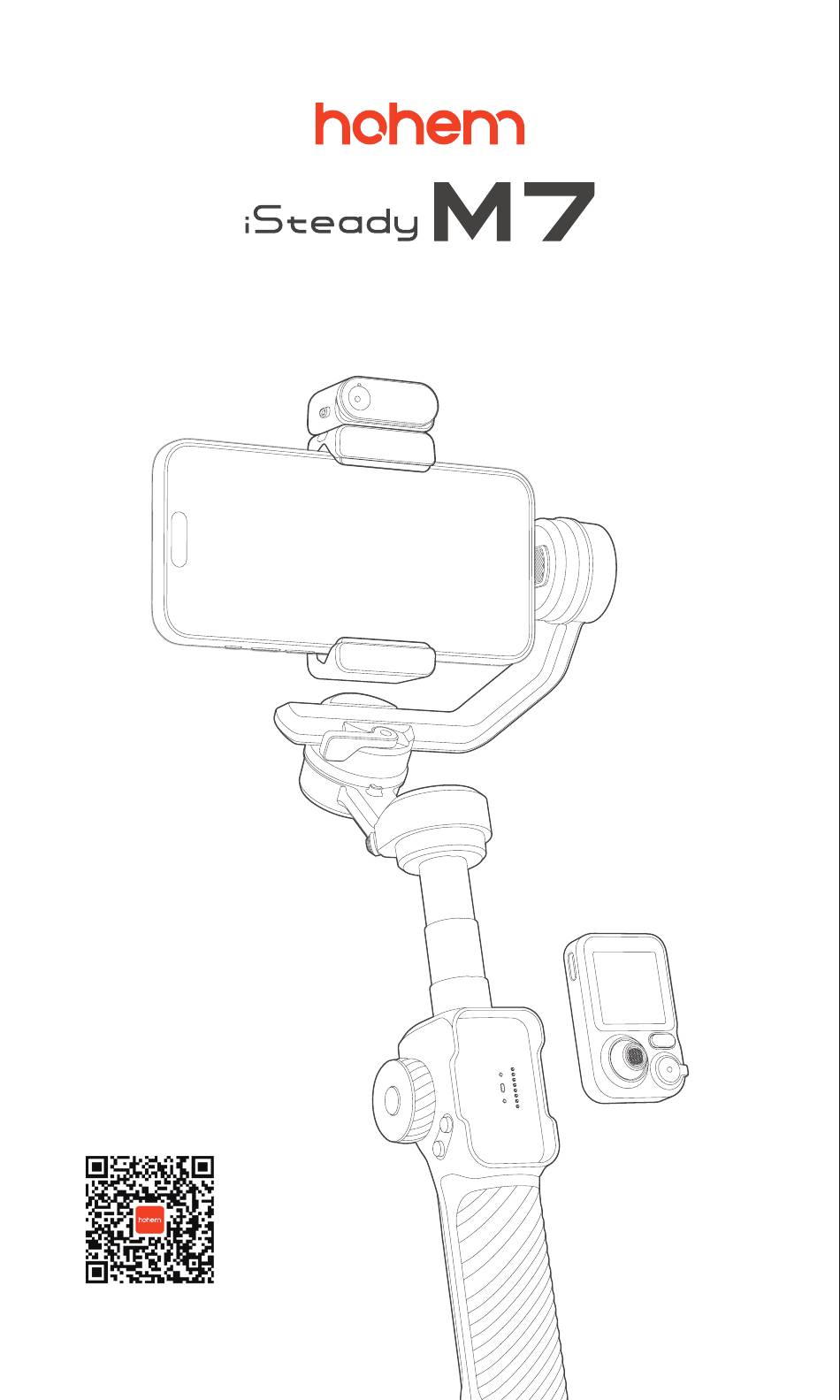

- Page 1 User Manual V1.0 Video Tutorial...
- Page 2 Gesture Control (Only for Person)· ····· Touchscreen Control (For Any Subject)· ··· Front/Rear Tracking· · ··········· Remote· ··········· 10 Buttons on 11 Touchscreen Interface· ·········· 12 Indicators· ················ 13 Hohem Joy App· ············· 14 Auto Calibration & Firmware Update· ··· 15 Specifications· ·············· 16 Call Center - Toll Free· ··········...
- Page 3 *For reverse charging, connect the black end to your phone and the gray end to the gimbal. For AI tracker updates, connect the gray end to your phone and the black end to the gimbal. It's recommended to update it through Hohem Joy app.
- Page 4 Overview Front ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑮ ⑯ ⑲ ⑰ ⑨ ⑳ ⑱ ⑩ ㉑ ㉒ ⑪ ⑫ ⑬ ⑭ ① Advanced AI tracker with ⑫ Gimbal Battery Indicator Fill Light ⑬ Remote Connection Indicator ② AI Tracker Power Switch ⑭ Pogo Pins ③ Magnetic Mount ⑮ Detachable Remote Controller...
- Page 5 Rear ㉓ ㉔ ㉕ ㉘ ㉖ ㉙ ㉗ ㉚ ㉛ ㉜ ㉟ ㉝ ㊱ ㉞ ㊲ ㊳ ㊴ ㊵ ㉓ Tilt Arm ㉜ Extension Pole ㉔ 1/4"-20 UNC Port ㉝ Charging Port (Type C) ㉕ Tilt Motor ㉞ Power Button ㉖ Tilt Lock ㉟ Positioning Hole ㉗ Roll Arm ㊱ 1/4"-20 UNC Port ㉘ Landscape/Portrait Switch ㊲ Trigger...
- Page 6 Charging Please fully charge iSteady M7 before using it for the first time. Charging Method： Please use the standard USB-Type C charging cable to connect to the Type-C charging port on the gimbal handle for charging. *It is recommended to use a 5V-3A USB charger (not included, needs to be provided separately).
- Page 7 Mounting & Powering On Compatible smartphones: Video ≤ 7 inches (weight: ≤ 500g, Tutorial width: 58mm-90mm, thickness: ≤ 12.5mm) Tripod Installation & Axes Unlocking a.Attach the tripod to the b.Each axis of the gimbal is equipped bottom of the handle. with a lock for easy storage and Unfold the tripod and place setup.
- Page 8 Bluetooth Connection 1. Make sure the gimbal is powered on. 2. Activate Bluetooth on your smartphone and select the device named "iM7-XXXXXXX" from the list of available devices. 3. Follow the on-screen instructions to connect and pair. 4. A steady light on the Bluetooth indicator signifies a successful connection.
- Page 9 Usage Modes There are 3 main usage modes of iSteady M7: Handheld Mode, Extended Mode, and Remote Mode. You can combine and use them as needed during actual shooting. Handheld Mode Simply hold the gimbal for on-the-go shooting. Extended Mode Pull out the built-in extension pole upwards for shooting.
- Page 10 Button A to start B-A motion at a constant speed. *Duration by default: 1 minute. You can customize duration in the Hohem Joy app or through the touchscreen of the remote. Charging Port (Type C) Connect to a power source to charge the gimbal.
- Page 11 Working Modes Working Modes iSteady M7 includes three axes of rotation: pan, tilt, and roll axes. The collaborative work between different axes results in the creation of 4 operation modes, each tailored to specific filming needs: Tilt axis Mode Switch：...
- Page 12 AI Tracking Scan the QR code to view tutorials, Video or visit www.hohem.com for more Tutorial information. Mount the AI Tracker Turn on the AI Tracker Attach the magnetic AI tracker, Toggle the switch to "ON". The make sure it is aligned with the fill light will flash twice quickly to magnetic mount.
- Page 13 Touchscreen Control (For Any Subject) Scan the QR code to view tutorials, Video or visit www.hohem.com for more Tutorial information. Enter Real-Time Preview *Ensure that the AI tracker is turned on. a.Swipe right on the homepage. b.Real-time AI tracking preview.
- Page 14 Double press: Photo/Video[1] Triple press: Front/Rear camera[1] Long press:Power on/off the remote[3] 1.Used within Hohem Joy app after Bluetooth connection. 2.Bluetooth connection needed. 3.When the remote is attached to the handle, it will power on/off the gimbal simultaneously.
- Page 15 Touchscreen Interface Status Bar Bluetooth Connection： Connected； Disconnected AI Tracking： On； Pause； Stop Remote Connection： Connected Gimbal Battery： <100%； <75%； <50%； <25%； Shutting down soon Remote Controller Battery： <100%； <75%； <50%； <25%； Shutting down soon Homepage Roller Control Motor Balance Gimbal Working Mode Scenarios (Inception, Ultra-Wide-Angle...
- Page 16 Indicators Bluetooth Indicator Solid: Bluetooth Connected Quick flash*3: Connection cleared Slow flash: Firmware updating Off: Disconnected Gimbal Battery Indicator Solid: 50%~100%/Fully Remote Connection charged Indicator Solid: 25%~50% Solid: Remote connected Solid: ＜ 25% Quick flash*3: Power on/off Quick flash: Shutting down soon Slow flash: Repairing Off: Disconnected...
- Page 17 Hohem Joy App Downloading Scan the QR code or search "Hohem Joy" in App Store / Google Play to download the App. Download on the Gimbal Connection ① Attach your smartphone and turn on iSteady M7. ② Turn on Bluetooth on your smartphone.
- Page 18 Working Mode indicators pulsing, indicating standby mode. Double-tap the power button to exit standby and retry calibration. Firmware Update You will be prompted in the Hohem Joy App if a new firmware update is available. Follow the on-screen instructions in the App to update firmware.
- Page 19 Approx. 12 hours (Balanced and stationary) Approx. 8 hours (With AI tracking) Operating Time 3~4 hours (With AI tracking and fill light used simultaneously) *Data sourced from Hohem Laboratory Power Consumption 1.8W (Balanced and stationary) Charging Time 3 hours (5V-3A) Pan: 360° Infinite Controllable Angle Roll: ±45°...
- Page 20 Call Center - Toll Free UNITED STATES: +1(888)9658512 Mon-Fri: 9:00AM-5:00PM(EST) UNITED KINGDOM: +44(0)808 2737578 Mon-Fri: 2:00PM-10:00PM(GMT +0) CANADA: +1(855)758 8939 Mon-Fri: 9:00AM-5:00PM(EST) BRAZIL: +55 (0)800 5911897 Mon-Fri: 10:00AM-6:00PM(GMT -3) Email: service@hohem.com Website: www.hohem.com Manufacturer: Shenzhen Hohem Technology Co., Ltd. Connect us at Facebook...
