Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
DESCRIPTION
A
Seat
B
Left Side Facing (LSF) backrest
C
Middle backrest
Right Side Facing (RSF) backrest
D
Transformer
E
F
Left Side Facing (LSF) Wing
Right Side Facing (RSF) Wing
G
ASSEMBLY INSTRUCTIONS
KAMARI COLLECTION
ITEM# : U092-30P2
DESCRIPTION :
Parts List
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Page 1 of 2

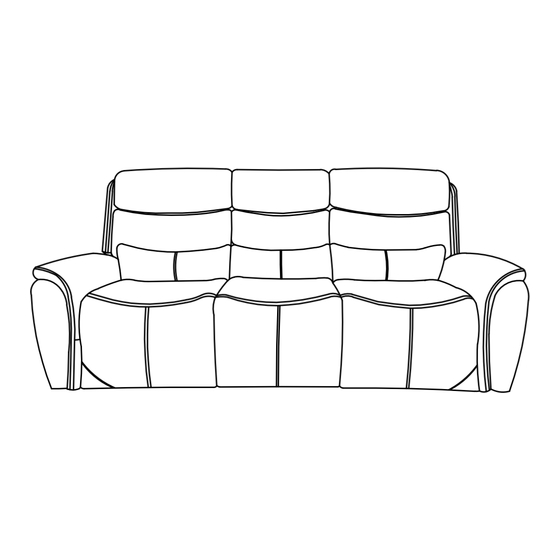

KAMARI SOFA W/PWR HR & FR
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
49901201
