Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
DESCRIPTION
A
Seat
B
Left Side Facing (LSF) backrest
Right Side Facing (RSF) backrest
C
D
Right Side Facing (RSF) Wing
Transformer
E
ASSEMBLY INSTRUCTIONS
KAMARI COLLECTION
ITEM# : U092-20RP2
DESCRIPTION :
W/ONE PWR HR & FR
Parts List
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Page 1 of 4

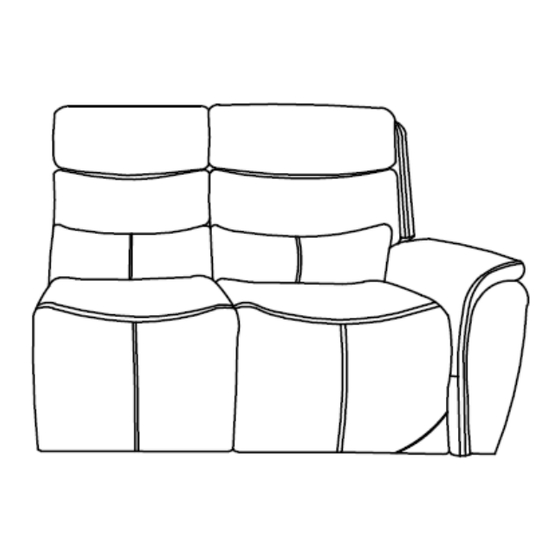

KAMARI RAF LOVESEAT
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
1 PC
49901569
