Klaxon Nexus 110 Installation Instructions Manual

Sounder-beacon ac
Hide thumbs

Advertisement

Quick Links

Download this manual
EN
DE
Tone
Tone Type
1.
970Hz (BS5839-1:2002)
2
800Hz/970Hz @ 2Hz (BS5839-1:2002)
3
800Hz – 970Hz @ 1Hz (BS5839-1:2002)
4
970Hz 1s OFF/1s ON (Apollo Fire Systems Alert Tone, BS5839-1:2002)
5
970Hz, 0.5s/ 630Hz, 0.5s (Apollo Fire Systems Evacuate Tone, BS5839-1:2002)
6
554Hz, 0.1s/ 440Hz, 0.4s (France – AFNOR NF S 32 001 )
7
500 – 1200Hz, 3.5s/ 0.5s OFF (Netherlands – NEN 2575:2000 Dutch Slow Whoop)
8
420Hz 0.625s ON/0.625s OFF (Australia AS1670 Alert tone)
9
500 – 1200Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF (Australia AS1670 Evacuation tone)
10
550Hz/440Hz @ 0.5Hz
11
970Hz, 0.5s ON/0.5s OFF x 3/ 1.5s OFF (ISO 8201 Low tone)
12
2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201 High tone)
13
1200Hz – 500Hz @ 1Hz (DIN 33 404)
14
400Hz
15
550Hz, 0.7s/1000Hz, 0.33s
16
1500Hz – 2700Hz @ 3Hz (Vandal Alarm)
17
Simulated Bell
18
2130Hz
19
660Hz
20
660Hz 1.8s ON/1.8s OFF
21
660Hz 0.15s ON/0.15s OFF
22
510Hz, 0.25s/ 610Hz, 0.25s
23
800/1000Hz 0.5s each (1Hz)
24
250Hz – 1200Hz @ 12Hz
25
500Hz – 1200Hz @ 0.33Hz.
26
2400Hz – 2900Hz @ 9Hz
27
2400Hz – 2900Hz @ 3Hz
28
800Hz – 970Hz @ 100Hz
29
800Hz – 970Hz @ 9Hz
30
800Hz – 970Hz @ 3Hz
31
800Hz, 0.25s ON/1s OFF
32
500Hz – 1200Hz, 3.75s/0.25s OFF (AS2220)
33
340Hz
34
1000Hz
35
1400Hz – 1600Hz, 1s/1600Hz – 1400Hz, 0.5s (NF 48-265)
36
660Hz 6.5s ON/13s OFF
37
1000Hz/2000Hz, 1s each
38
720Hz, 0.7s ON/0.3s OFF
39
970Hz, 0.25s ON/OFF
40
2800Hz, 1s ON/OFF
41
2800Hz 0.25s ON/OFF
42
2400/2900 @ 2Hz
43
Chime, 554Hz/440Hz Single shot 'ding dong'
44
Chime, 554Hz/440Hz Repeating 'ding dong'
45
Chime, 970Hz/800Hz Single shot 'ding dong'
46
Chime, 970Hz/800Hz Repeating 'ding dong'
47
Hooter, Repeating
48
Gentle alarm - Tone 2, rises slowly to full volume over 30s
49
Time-Out Alarm – As Tone 2, cuts off after 10 mins
50
Time-Out Alarm – As Tone 2, cuts off after 2 mins
51
750Hz 0.33s ON/0.51s OFF
52
750Hz 0.51s ON/0.33s OFF
53
550Hz, 0.33s/1000Hz, 0.7s
54
600Hz – 900Hz/ 0.9s
55
660Hz – 680Hz/ 0.9s
56
670Hz – 725Hz/ 0.9s
57
920Hz – 750Hz/ 0.9s
58
700Hz - 900Hz, 0.3s/0.6s OFF
59
900Hz - 760Hz, 0.6s/0.3s OFF
60
750Hz
61
Power Only – Use with Stage 3 control for manual/intermittent chime triggering
62
Power Only – Use with Stage 3 control for manual/intermittent chime triggering
63
Power Only – Use with Stage 3 control for manual/intermittent horn triggering
64
Reserved for future use
Klaxon Signals is a registered trademark of Texecom Ltd.
St Crispin Way, Haslingden, BB4 4PW, UK
Tel: +44 1706 212524 Email: klaxon@texe.com
www.acornfiresecurity.com
NL
FR

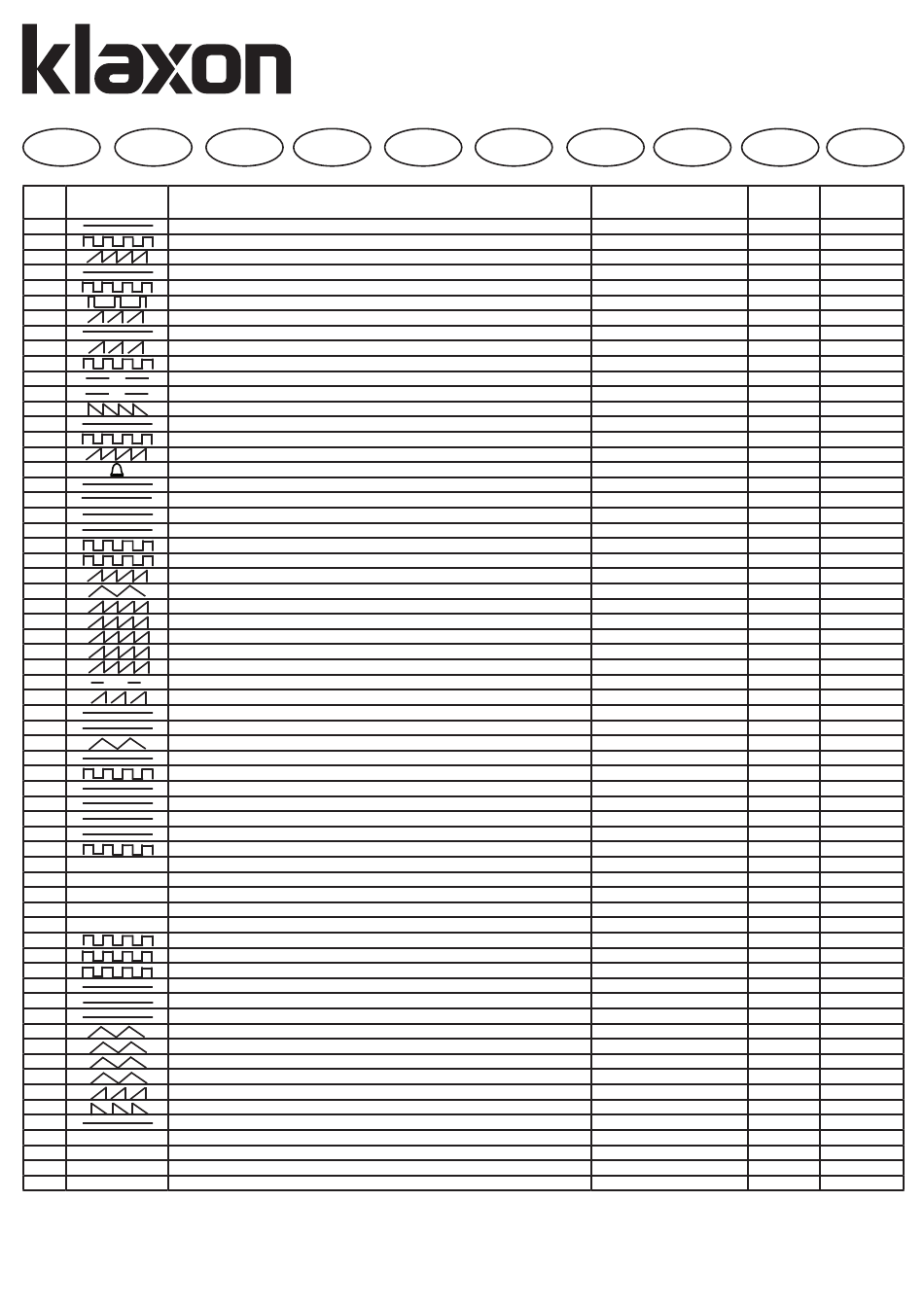

Tone Description /Application
www.acornfiresecurity.com
Nexus 110 Sounder-Beacon AC
Installation Instructions
ES
PT
IT
SE
PL
Dip Switch
(S1/S2)
StageTone
O-O-O-O-O-O
O-O-O-O-O-I
O-O-O-O-I-O
O- O - O- O - I- I
O-O-O-I-O-O
O- O - O- I - O- I
O- O - O- I - I- O
O - O - O - I - I - I
O-O-I-O-O-O
O- O - I- O - O- I
O- O - I- O - I- O
O - O - I - O - I - I
O- O - I- I - O- O
O - O - I - I - O - I
O - O - I - I - I - O
O - O - I - I - I - I
O-I-O-O-O-O
O- I - O- O - O- I
O- I - O- O - I- O
O - I - O - O - I - I
O- I - O- I - O- O
O - I - O - I - O - I
O - I - O - I - I - O
O - I - O - I - I - I
O- I - I- O - O- O
O - I - I - O - O - I
O - I - I - O - I - O
O - I - I - O - I - I
O - I - I - I - O - O
O - I - I - I - O - I
O - I - I - I - I - O
O - I - I - I - I - I
I-O-O-O-O-O
I- O - O- O - O- I
I- O - O- O - I- O
I - O - O - O - I - I
I- O - O- I - O- O
I - O - O - I - O - I
I - O - O - I - I - O
I - O - O - I - I - I
I- O - I- O - O- O
I - O - I - O - O - I
I - O - I - O - I - O
I - O - I - O - I - I
I- O - I - I - O - O
I - O - I - I - O - I
I - O - I - I - I - O
I - O - I - I - I - I
I- I - O- O - O- O
I - I - O - O - O - I
I - I - O - O - I - O
I - I - O - O - I - I
I - I - O - I - O - O
I - I - O - I - O - I
I - I - O - I - I - O
I - I - O - I - I - I
I - I - I - O - O - O
I - I - I - O - O - I
I - I - I - O - I - O
I - I - I - O - I - I
I - I - I - I - O - O
I - I - I - I - O - I
I - I - I - I - I - O
I - I - I - I - I - I
Issue 1 (November 2024) INS900
Copyright © Texecom Ltd
www.klaxonsignals.com
DK
3rd
Peak Sound
Level
(dBA @1m)
18
110
1
110
1
110
1
110
1
110
1
107
1
110
1
105
1
110
19
107
1
110
1
112
1
110
18
105
1
111
1
116
1
112
1
113
10
109
19
108
19
107
1
107
1
111
1
105
1
110
1
116
1
116
1
110
1
110
1
110
1
108
1
110
1
106
18
111
1
110
19
108
1
113
1
106
1
110
1
113
1
113
1
115
1
104
1
107
1
106
1
106
1
107
1
109
1
109
1
109
1
106
1
107
1
111
1
109
1
105
1
107
1
110
1
109
1
110
18
107
43
43
47

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nexus 110 and is the answer not in the manual?

Questions and answers

Related Manuals for Klaxon Nexus 110

Summary of Contents for Klaxon Nexus 110

  • Page 1 I - I - I - I - I - O Reserved for future use I - I - I - I - I - I Klaxon Signals is a registered trademark of Texecom Ltd. Issue 1 (November 2024) INS900 St Crispin Way, Haslingden, BB4 4PW, UK Copyright ©...

  • Page 2: Installation Instructions

    Casing......... High Impact Polycarbonate/ABS (Neutral ) IP Rating ........IP66 Sounder Synchronisation ......Automatic with Klaxon Nexus and Beacon (where fitted) Sonos Sounders *depends on selected tone. See tone table for details. b. Remote Tone Switching (If required): Externally link control terminals as shown below.

  • Page 3: Notice D'instructions

    Gehäuse ........Stoßfestes Polykarbonat/ABS Niveau de protection poussière/eau ..IP66 avec presses étoupes IP-Klasse ........IP66 appropriées Synchronisierung ......Automatisch mit Klaxon Nexus und Synchronisation........Automatique avec les sondeurs Sonos-Alarmgebern Klaxon Nexus et Sonos *je nach gewähltem Ton. Ausführliche Informationen siehe Tontabelle.

  • Page 4: Montage Instructies

    www.acornfiresecurity.com Montage instructies Instrucciones de Instalación Installatie Instalación a. Het apparaat moet voorzien zijn van een aansluiting met aarding die a. La unidad debería ajustarse con un cilindro recto soplado que incor- voorzien is van een ontkoppelingapparaat voor alle polen en met een pora un dispositivo de desconexión de todos los polos y proporciona contacttussenruimte van 3mm.

  • Page 5: Manual De Instalação

    www.acornfiresecurity.com Manual de Instalação Istruzioni di installazione Instalação Installazione a. Aunidade deve ser instalada com uma derivação com fusível a. L’unità deve essere installata con un supporto di sostegno con fusibili incorporando contenente un dispositivo di disconnessione di tutti i poli che fornisce um dispositivo de desligamento de todos os pólos que proporciona una separazione di contatto di 3 mm in tutti i poli.

  • Page 6: Instrukcja Montażu

    www.acornfiresecurity.com Instrukcja montażu Installationsmanual Instalacja Installation a. Enheten ska förses med ett säkrat uttag med en a. Urządzenie powinno posiadać zabezpieczony wyłącznik umożliwiający frånslutningsanordning odłączenie wszystkich biegunów tak, aby odległość między stykami för alla poler som ger ett kontaktavstånd på 3 mm för polerna. wynosiła 3 mm.

  • Page 7: Teknisk Specifikation

    www.acornfiresecurity.com Installationsanvisninge Installation a. Apparatet skal udstyres med en afgreningsledning med sikring og frakoblingsmulighed for alle poler, der skal give en kontaktafstand på 3 mm ved alle poler. Sørg for at mærkeeffekt for sikring, kabelstørrelse samt type pakdåse er tilstrækkelig til den samlede belastning på lydalarmens kredsløb.
