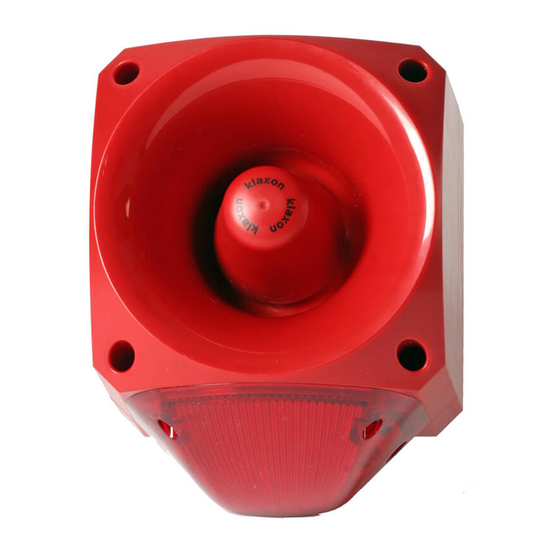

Nexus 120 DC Sounder & Sounder-Beacon

Installation Instructions

Tone
Tone Type
Tone Description / Application
Dip Switch
3rd Stage
Peak Sound
Sounder
(S1/S2)
Tone
Level (dBA@1m) Current (A Avg)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nexus 120 DC and is the answer not in the manual?

Questions and answers

Related Manuals for Klaxon Nexus 120 DC

Summary of Contents for Klaxon Nexus 120 DC

  • Page 1: Installation Instructions

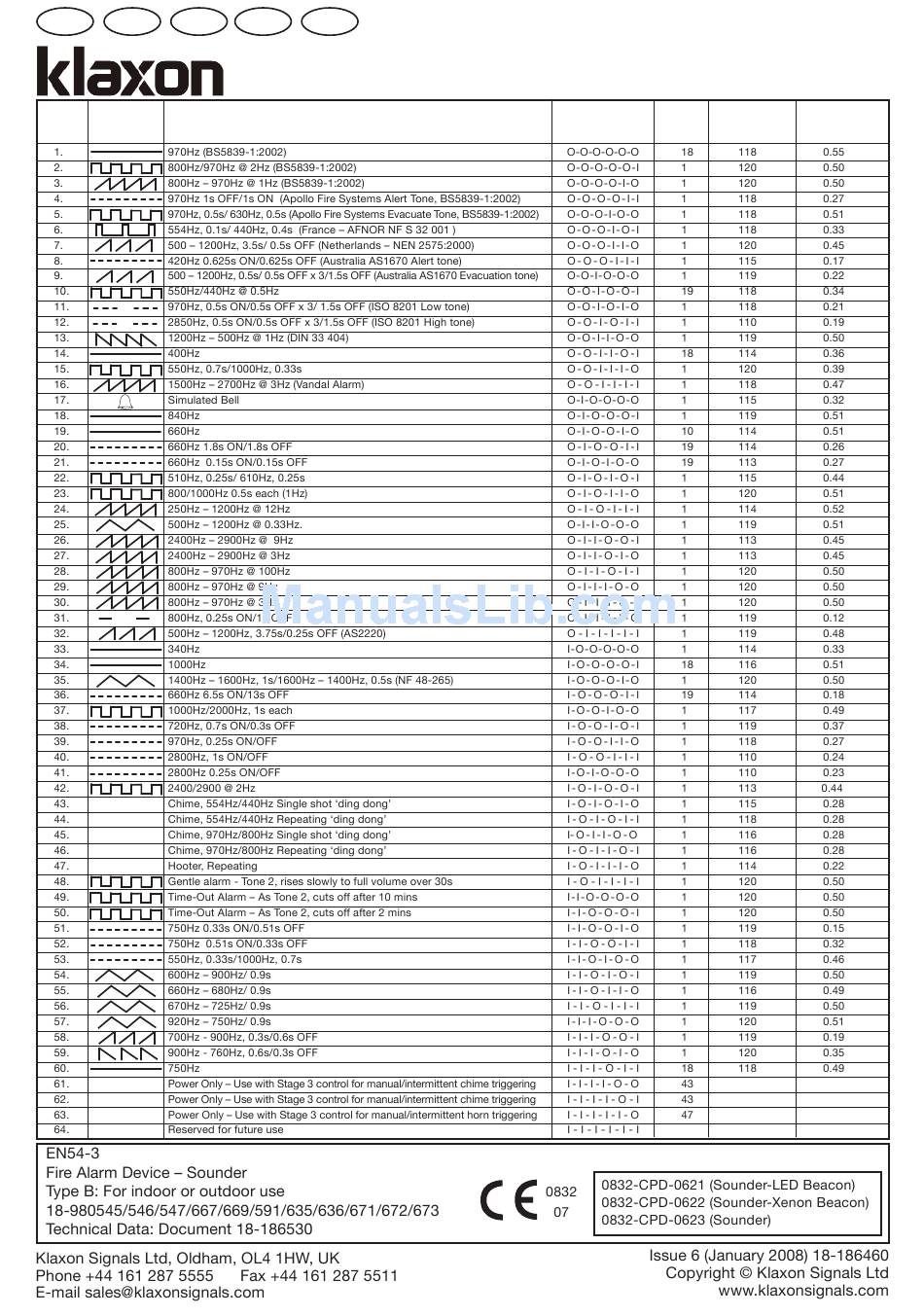

    Nexus 120 DC Sounder & Sounder-Beacon Installation Instructions Tone Tone Type Tone Description / Application Dip Switch 3rd Stage Peak Sound Sounder (S1/S2) Tone Level (dBA@1m) Current (A Avg)
  • Page 2 2nd Stage Alarm Control (Connect to 0V to activate) 3rd Stage Alarm Control (Connect to 0V to activate) Beacon Positive Supply (10 to 60V DC) Beacon Negative Supply (0V) Controls Nexus 120 DC Sounder & Sounder-Beacon Installation Instructions 1st Unit XENON BEACON Switch...
  • Page 4 Montageinstructies Installatie Bedrading Lijn Regeling Xenon Technische specificaties: Instrucciones de Instalación Instalación Cableado Contact markerin Controles Especificaciones Técnicas: Línea Terminal Xenon...
