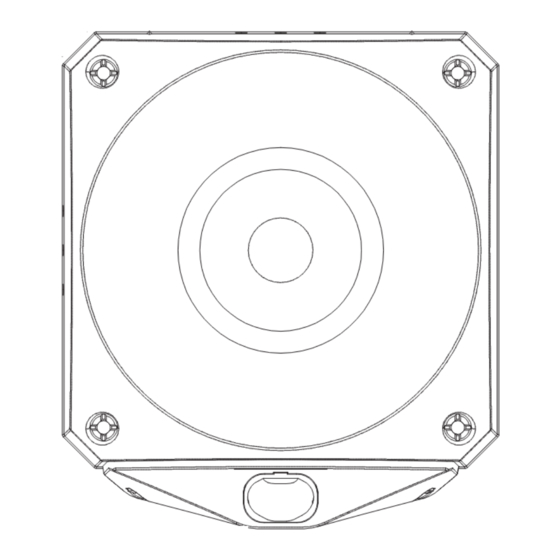

Nexus Pulse 110 Red/White Flash Sounder-Beacon
Installation Instructions
Tone
Tone Type
1.
970Hz (BS5839-1:2002)
2
800Hz/970Hz @ 2Hz (BS5839-1:2002)
3
800Hz – 970Hz @ 1Hz (BS5839-1:2002)
4
970Hz 1s OFF/1s ON (Apollo Fire Systems Alert Tone, BS5839-1:2002)
5
970Hz, 0.5s/ 630Hz, 0.5s (Apollo Fire Systems Evacuate Tone, BS5839-1:2002)
6
554Hz, 0.1s/ 440Hz, 0.4s (France – AFNOR NF S 32 001 )
7
500 – 1200Hz, 3.5s/ 0.5s OFF (Netherlands – NEN 2575:2000 Dutch Slow Whoop)
8
420Hz 0.625s ON/0.625s OFF (Australia AS1670 Alert tone)
9
500 – 1200Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF (Australia AS1670 Evacuation tone)
10
550Hz/440Hz @ 0.5Hz
11
970Hz, 0.5s ON/0.5s OFF x 3/ 1.5s OFF (ISO 8201 Low tone)
12
2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201 High tone)
13
1200Hz – 500Hz @ 1Hz (DIN 33 404)
14
400Hz
15
550Hz, 0.7s/1000Hz, 0.33s
16
1500Hz – 2700Hz @ 3Hz (Vandal Alarm)
17
Simulated Bell
18
2130Hz
19
660Hz
20
660Hz 1.8s ON/1.8s OFF
21
660Hz 0.15s ON/0.15s OFF
22
510Hz, 0.25s/ 610Hz, 0.25s
23
800/1000Hz 0.5s each (1Hz)
24
250Hz – 1200Hz @ 12Hz
25
500Hz – 1200Hz @ 0.33Hz.
26
2400Hz – 2900Hz @ 9Hz
27
2400Hz – 2900Hz @ 3Hz
28
800Hz – 970Hz @ 100Hz
29
800Hz – 970Hz @ 9Hz
30
800Hz – 970Hz @ 3Hz
31
800Hz, 0.25s ON/1s OFF
32
500Hz – 1200Hz, 3.75s/0.25s OFF (AS2220)
33
340Hz
34
1000Hz
35
1400Hz – 1600Hz, 1s/1600Hz – 1400Hz, 0.5s (NF 48-265)
36
660Hz 6.5s ON/13s OFF
37
1000Hz/2000Hz, 1s each
38
720Hz, 0.7s ON/0.3s OFF
39
970Hz, 0.25s ON/OFF
40
2800Hz, 1s ON/OFF
41
2800Hz 0.25s ON/OFF
42
2400/2900 @ 2Hz
43
Chime, 554Hz/440Hz Single shot 'ding dong'
44
Chime, 554Hz/440Hz Repeating 'ding dong'
45
Chime, 970Hz/800Hz Single shot 'ding dong'
46
Chime, 970Hz/800Hz Repeating 'ding dong'
47
Hooter, Repeating
48
Gentle alarm - Tone 2, rises slowly to full volume over 30s
49
Time-Out Alarm – As Tone 2, cuts off after 10 mins
50
Time-Out Alarm – As Tone 2, cuts off after 2 mins
51
750Hz 0.33s ON/0.51s OFF
52
750Hz 0.51s ON/0.33s OFF
53
550Hz, 0.33s/1000Hz, 0.7s
54
600Hz – 900Hz/ 0.9s
55
660Hz – 680Hz/ 0.9s
56
670Hz – 725Hz/ 0.9s
57
920Hz – 750Hz/ 0.9s
58
700Hz - 900Hz, 0.3s/0.6s OFF
59
900Hz - 760Hz, 0.6s/0.3s OFF
60
750Hz
61
Power Only – Use with Stage 3 control for manual/intermittent chime triggering
62
Power Only – Use with Stage 3 control for manual/intermittent chime triggering
63
Power Only – Use with Stage 3 control for manual/intermittent horn triggering
EN54-3:2001+A1:2002+A2:2006; EN54-23:2010
Fire Alarm Device – Sounder
Type B: For indoor or outdoor use
Datasheet ATS00008
Base - 18-186312
Texecom Ltd (Incorporating Klaxon Signals)
St Crispin Way, Haslingden, BB4 4PW, UK
Tel: +44 (0)1706 233879
NL
ES
PT
Tone Description /Application
IT
SE
PL
Dip Switch
(S1/S2)
O-O-O-O-O-O
O-O-O-O-O-I
O-O-O-O-I-O
O - O -O - O -I -I
O-O-O-I-O-O
O - O -O - I- O -I
O - O -O - I- I- O
O - O - O - I - I - I
O-O-I-O-O-O
O -O - I- O -O - I
O - O- I -O - I- O
O - O - I - O - I - I
O -O - I- I- O -O
O - O - I - I - O - I
O - O - I - I - I - O
O - O - I - I - I - I
O-I-O-O-O-O
O- I- O - O- O -I
O -I -O - O -I -O
O - I - O - O - I - I
O - I- O -I - O- O
O - I - O - I - O - I
O - I - O - I - I - O
O - I - O - I - I - I
O -I -I - O- O -O
O - I - I - O - O - I
O - I - I - O - I - O
O - I - I - O - I - I
O - I - I - I - O - O
O - I - I - I - O - I
O - I - I - I - I - O
O - I - I - I - I - I
I-O-O-O-O-O
I - O- O -O - O -I
I- O -O - O -I -O
I - O - O - O - I - I
I -O - O -I -O - O
I - O - O - I - O - I
I - O - O - I - I - O
I - O - O - I - I - I
I- O -I -O - O -O
I - O - I - O - O - I
I - O - I - O - I - O
I - O - I - O - I - I
I- O - I - I - O - O
I - O - I - I - O - I
I - O - I - I - I - O
I - O - I - I - I - I
I- I- O -O - O -O
I - I - O - O - O - I
I - I - O - O - I - O
I - I - O - O - I - I
I - I - O - I - O - O
I - I - O - I - O - I
I - I - O - I - I - O
I - I - O - I - I - I
I - I - I - O - O - O
I - I - I - O - O - I
I - I - I - O - I - O
I - I - I - O - I - I
I - I - I - I - O - O
I - I - I - I - O - I
I - I - I - I - I - O
Head Type
0832
ENCA2000
14
ENDA2000
email: sales@klaxonsignals.com www.klaxonsignals.com
DK
3rd Stage
Peak Sound
Tone
Level
(dBA @1m, 24-V DC)
18
110
1
110
1
110
1
110
1
110
1
107
1
110
1
105
1
110
19
107
1
110
1
112
1
110
18
105
1
111
1
116
1
112
1
113
10
109
19
108
19
107
1
107
1
111
1
105
1
110
1
116
1
116
1
110
1
110
1
110
1
108
1
110
1
106
18
111
1
110
19
108
1
113
1
106
1
110
1
113
1
113
1
115
1
104
1
107
1
106
1
106
1
107
1
109
1
109
1
109
1
106
1
107
1
111
1
109
1
105
1
107
1
110
1
109
1
110
18
107
43
43
47
Coverage Volume
CPR Number
W-3.1-11.3
0832-CPR-F0166
W-2.4-7.5
0832-CPR-F0167
(JULY 2015) INS594-2
Copyright © Texecom Ltd
Sounder
Current
(mA Avg, 24V DC)
45
44
43
25
39
24
28
9
13
26
19
16
34
21
33
46
26
34
31
16
17
28
44
24
31
45
45
42
43
43
10
29
18
47
44
31
41
26
25
22
21
43
15
15
36
36
13
44
44
44
12
25
41
37
33
33
41
15
28
39
