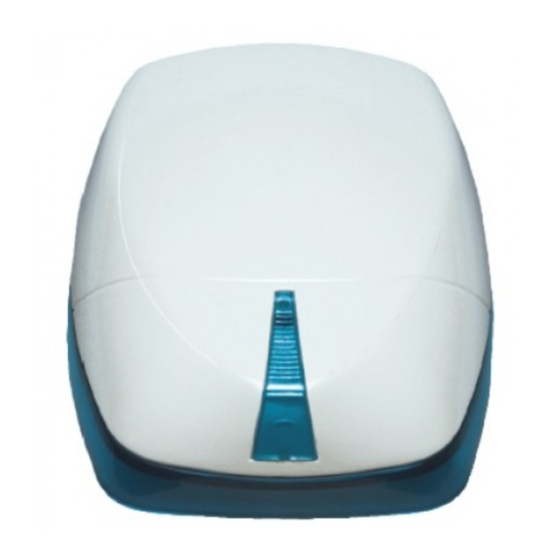

- Page 1 www.acornfiresecurity.com Minn-XE Manuel issue 4 no 2 25/3/03 7:59 am Page 3 Installation Instructions Flashguard – The Installer’s Choice Minn-X Internal Alarm Sounder Minn-XE Internal Alarm Sounder with strobe Minn-XW External Alarm Sounder www.acornfiresecurity.com...
- Page 2 www.acornfiresecurity.com Minn-XE Manuel issue 4 no 2 25/3/03 7:59 am Page 4 Installation Instructions Thank you for buying Flashguard the generic term for sounder/strobe units. PIEZO SOUNDER BATTERY (Not Minn-X) Warning Protect Battery Hearing 1-STRODE 2- TRIG - 3- SUPPLY + 4- SUPPLY - 5- TAMPER R 6- TAMPER S...
- Page 3 www.acornfiresecurity.com Minn-XE Manuel issue 4 no 2 25/3/03 7:59 am Page 5 Mounting Instructions Using the backplate of the unit (or the template on the rear of the carton), mark the position of the screw holes (A) and cable entry hole (B) on the wall at the selected mounting position. Drill and plug the wall as marked.
- Page 4 www.acornfiresecurity.com Minn-XE Manuel issue 4 no 2 25/3/03 7:59 am Page 6 Terminal Connections (F) STROBE Applying a negative voltage triggers the strobe. TRIG - Applying a negative voltage triggers the sounder. SUPPLY + The permanent 12V DC supply from the panel is connected to these terminals. If the hold-off supply is removed from these terminals, the unit will self activate on SUPPLY - battery backup (Note: The LED will stop flashing on battery backup.)
