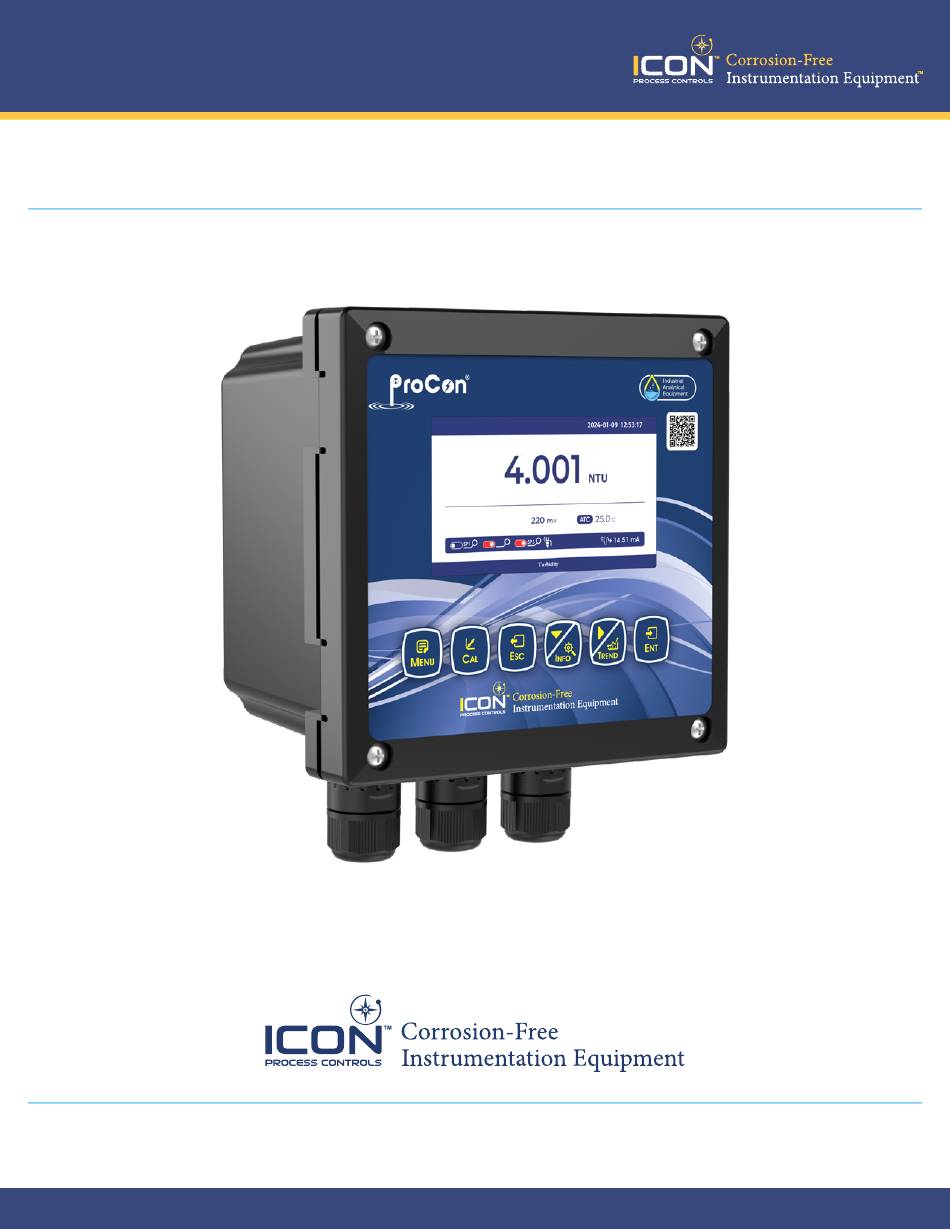

ProCon
— TB800 Series
®
Turbidity Controller
Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
1
24-0606 © Icon Process Controls Ltd.
