ProCon
— D750 Series
®
Conductivity Controller
Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
1
24-0523 © Icon Process Controls Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProCon D750 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICON ProCon D750 Series

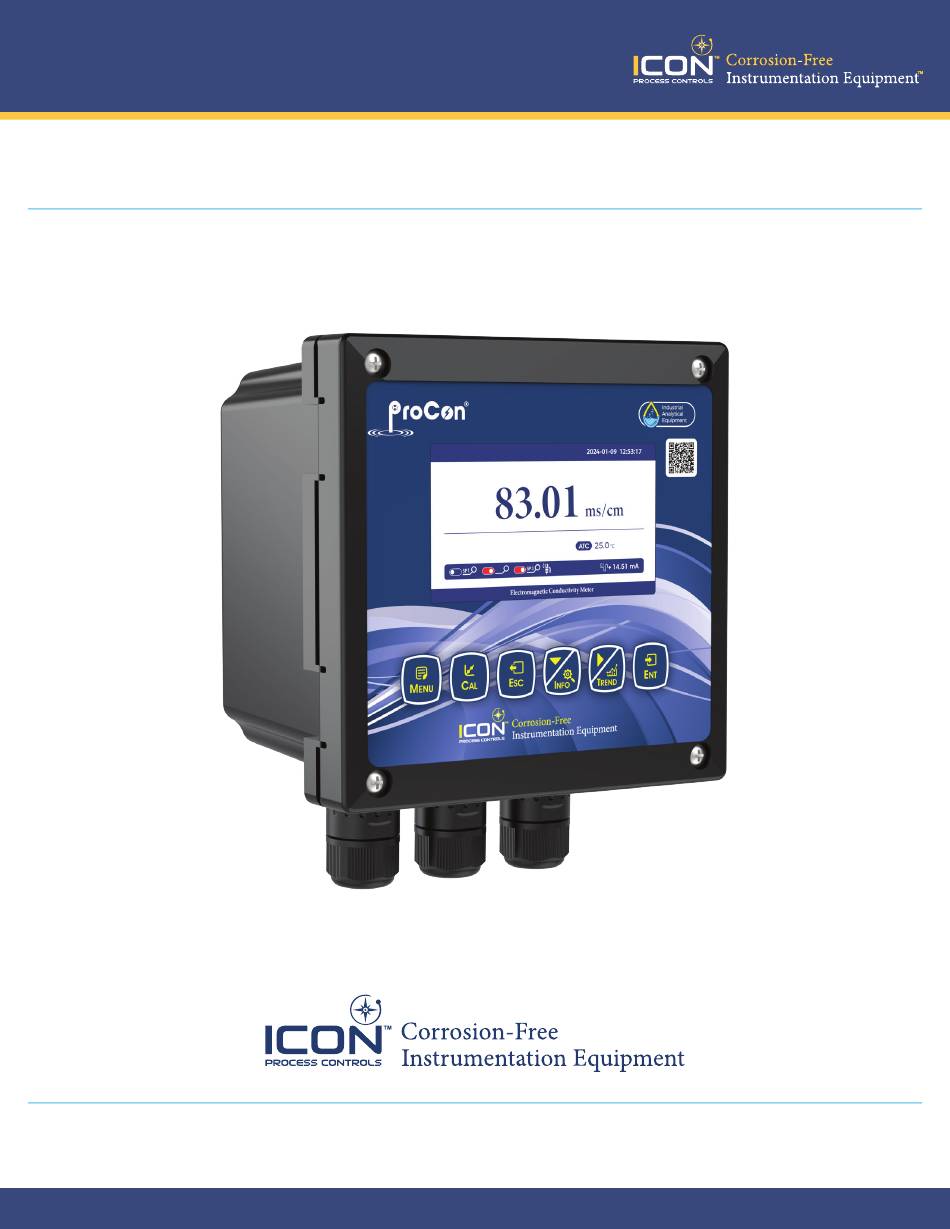

  • Page 1 ProCon — D750 Series ® Conductivity Controller Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 24-0523 © Icon Process Controls Ltd.
  • Page 2: Technical Specifications

    No strong magnetic field interference around except the geomagnetic field Working Temperature 14 ~ 140 F | -10~60°C Relative Humidity ≤90% Waterproof Rating IP65 Dimensions 144 x 114 x 118mm Mounting Panel | Wall Mount 24-0523 © Icon Process Controls Ltd.
  • Page 3 ProCon — D750 Series ® Conductivity Controller Dimensions 118mm 144mm 26mm M4x4 45x45mm 138mm +0.5mm Back Fixed Hole Size Embedded Mounting Cut-out Size 24-0523 © Icon Process Controls Ltd.
  • Page 4: Embedded Installation

    Schematic of Completion of Installation Wall Mount Installation 150.3mm 6x1.5mm Schematic of Completion of Installation a) Install a mounting bracket for the instrument b) Wall screw fixation Top view of mounting bracket Pay attention of installation direction 24-0523 © Icon Process Controls Ltd.
  • Page 5 5-10 Meters, insert the line with corresponding label or color wire on the sensor into the corresponding terminal inside the instrument and tighten it. 24-0523 © Icon Process Controls Ltd.
  • Page 6: Keypad Description

    Long Press: Long Press is to press the button for 3 seconds and then release it. Press & Hold: Press and hold means to press the button, and accelerate after a certain time until the data is adjusted to the user's required value before releasing the button 24-0523 © Icon Process Controls Ltd.
  • Page 7: Display Descriptions

    History °C System Electromagnetic Conductivity Meter Electromagnetic Conductivity Meter Calibration Mode Trend Chart Display 2024-02-12 12:53:17 2024-02-12 12:53:17 001644:001644 2019-01-09 12:53:17 7.850 NTU Point 1 Voltage: 0.000 Calibrating Electromagnetic Conductivity Meter Electromagnetic Conductivity Meter 24-0523 © Icon Process Controls Ltd.
  • Page 8: Menu Structure

    10.0 (Default, can be modified) Description Point 5 20.0 (Default, can be modified) Standard Solution Voltage 1 Calibration Calibration Voltage 2 Calibration Voltage 3 Adjustment Voltage 4 Voltage 5 Field Calibration Field Calibration Offset Adjustment Slope Adjustment 24-0523 © Icon Process Controls Ltd.
  • Page 9: Relay 1

    (Off Time - In Cleaning State) Main Channel Temperature 4-20mA Description Output Option 0-20mA Current 1 20-4mA Upper Limit Lower Limit Output Main Channel Temperature 4-20mA Description Output Option 0-20mA Current 2 20-4mA Upper Limit Lower Limit 24-0523 © Icon Process Controls Ltd.
  • Page 10: Point

    Memory Information 101600 Point Data Output Language English Year-Month-Day Date/Time Hour-Minute-Second Standard Display Speed Medium High Saving Description System Backlight Display Bright Range Set Automatic Software Version 1.9-1.0 Software version Password Settings 0000 Serial number 24-0523 © Icon Process Controls Ltd.
  • Page 11: Table Of Contents

    If the monitor prompts you to enter the calibration safety password, press [ ] or [ ] key to set the calibration safety password, then press [ENT] to confirm the calibration safety password. 24-0523 © Icon Process Controls Ltd.
  • Page 12: Point 1

    Compare the data from portable instrument with the data measured by isntrument. if there is any error, the error data can be modified by this function. Linear adjustment Linear values after "field calibration" will be saved in this term and the factory data is 1.00. 24-0523 © Icon Process Controls Ltd.
  • Page 13: Setting Mode

    Long pressing of the [ENT] key can accelerates displacement. (When the bottom Icons is green. [ENT] key is displacement direction, press [ /TREND] key to switch the direction of displacement) 24-0523 © Icon Process Controls Ltd.
  • Page 14: Warranty, Returns And Limitations

    Icon Process Controls Ltd for a period of one year from the date of sale of such products. Icon Process Controls Ltd obligation under this warranty is solely...
