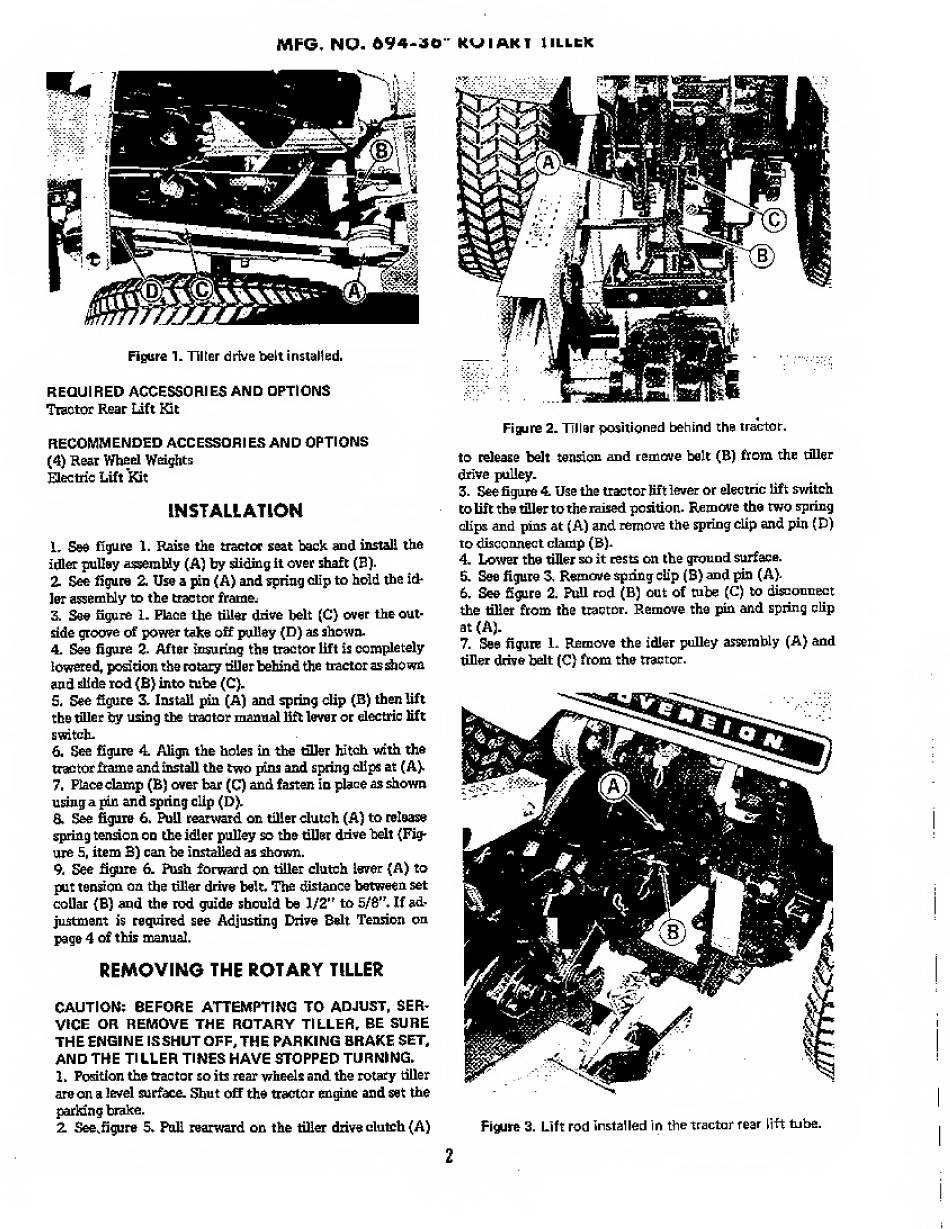

REQUIRED ACCESSORIES AND OPTIONS
Tractor Rear Lift Kit
RECOMMENDED ACCESSORIES AND OPTIONS
(4) Rear Wheel Weights
Electric Lift Kit
INSTALLATION
1, Sea figure 1. Raise the tractor seat back and install the
idler pulley assembly (A} by hiding it over shaft (B).
2- See figure 2. Use a pin (A) and spring clip to hold the id
ler assembly to the tractor frame.
3. See figure 1. Place the tiller drive belt (C) over the out¬
side groove of power take off pulley (D) as shown.
4. See
figure
3.
After insuring the tractor lift
is completely
lowered, position the rotary tiller behind the tractor as shown
and slide rod (B) into tube (C).
5. See figure 3. Install pin (A) and spring dip (B) then lift
the tiller by using the tractor manual lift lever or electric lift
switch.
6. See figure 4 Align the holes in the tiller hitch with the
tractor frame and install the two pins and spring dips at (A).
7. Place damp (B) over bar (C) and fasten in place as shown
using a pin and spring clip (D)i
& See figure 6. Pull rearward on tiller dutch (A) to release
spring tension od the idler pulley so the tiller drive belt {Fig¬
ure 5, item B) can be installed as shown.
9, See figure 6. Push forward on tiller clutch lever {A) to
put tendon on the tiller drive belt. The distance between set
collar {B} and the rod guide should be 1/2" to 5/8", If ad¬
justment is required see Adjusting Drive Belt Tendon on
page 4 of this manual.
REMOVING THE ROTARY TILLER
CAUTION: BEFORE ATTEMPTING TO ADJUST, SER¬
VICE OR REMOVE THE ROTARY TILLER, BE SURE
THE ENGINE IS SHUT OFF, THE PARKING BRAKE SET,
AND THE TILLER TINES HAVE STOPPED TURNING,
1. Position the tractor so its rear wheels and the rotary tiller
are on a level surface. Shut off the tractor engine and set the
parking brake.
2. See.figure 5, Pull rearward on the tiller drive clutch (A)
Figure 2. Tiller positioned behind tha tractor.
to release belt tension and remove belt (B) from the tiller
drive pulley.
3. See figure 4 Use the tractor lift lever or electric lift switch
to lift the tiller to the raised position. Remove the two spring
dips and pins at (A) and remove the spring clip and pin (D)
to disconnect clamp (B).
4 Lower the tiller so it rests on the ground surface.
5. See figure 3, Remove spring clip (B) and pin (A).
6. See figure 2. Pull rod (B) out of tube {C) to disconnect
the tiller from the tractor. Remove the pin and spring clip
at (A).
7. See figure 1. Remove the idler pulley assembly (A) and
filler drive belt (C) from the tractor.
