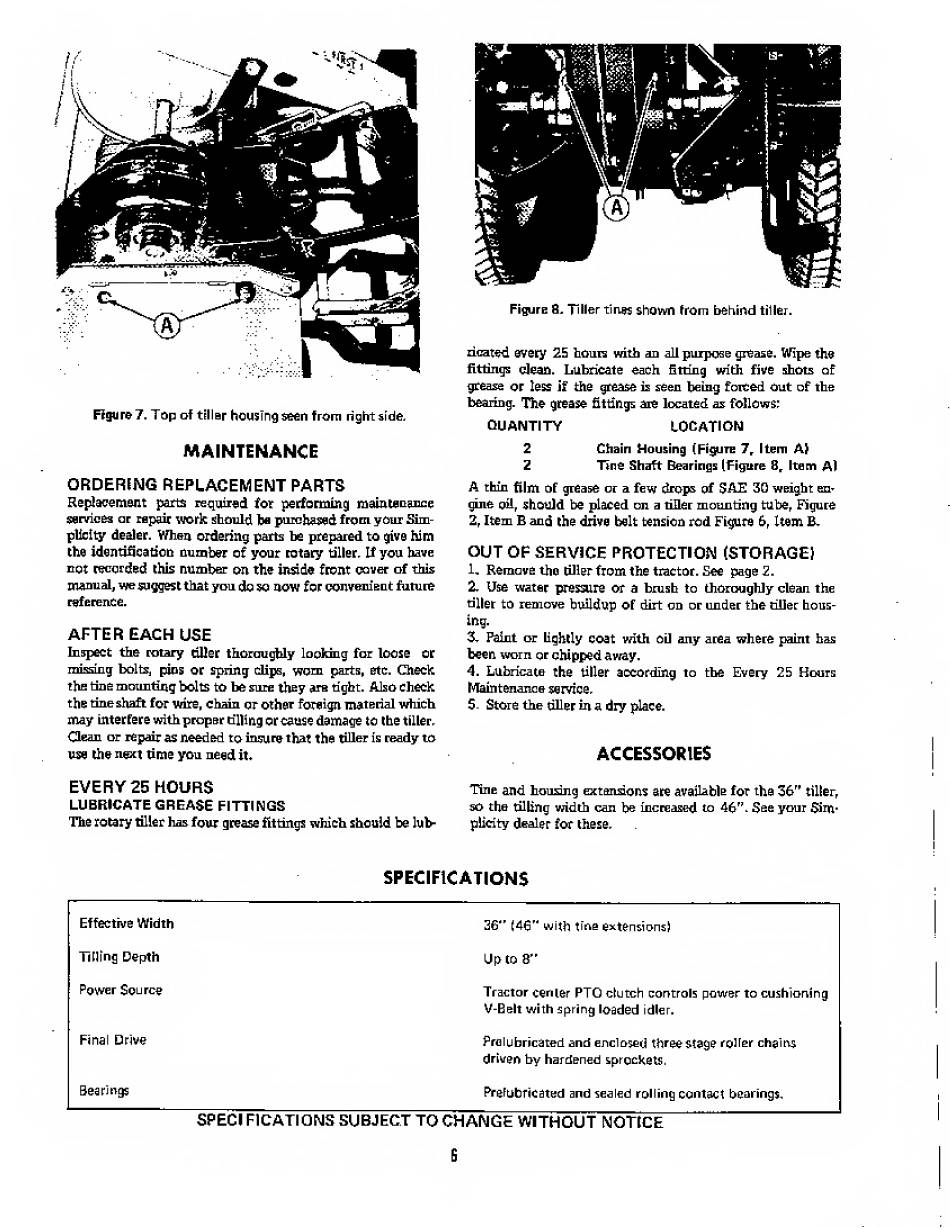

Figure?. Top of tiller housing seen from right side.
MAINTENANCE
ORDERING REPLACEMENT PARTS
Replacement parts required for performing maintenance
services or repair work should be purchased from your Sim¬
plicity dealer. When ordering parts be prepared to give him
the identification number of your rotary tiller. If you have
cot recorded this number on the inside front cover of this
manual, we suggest that you do so now for convenient future
reference.
AFTER EACH USE
Inspect the rotary tiller thoroughly looking for loose or
missing bolts, pins or spring dips, worn parts, etc. Check
the tine mounting bolts to be sure they are tight. Also check
the tine shaft for wire, chain or other foreign material which
may interfere with proper rilling or cause damage to the tiller.
Clean or repair as needed to insure that the tiller is ready to
use the next time you need it*
Figure 8. Tiller tines shown from behind tiller.
ricated every 25 bouts with an all purpose grease. Wipe the
fittings dean. Lubricate each String with five shots of
grease or less if the grease is seen being forced out of the
bearing. The grease fittings am located as follows:
QUANTITY
LOCATION
2
Chain Mousing (Figure 7r Item A)
2
Tine Shaft Bearings (Figure 8r Item Al
A thin film of grease or a few drops of SAE 30 weight en¬
gine oil, should be placed on a tiller mounting tube, Figure
2, Item B and the drive belt tension rod Figure 6, Item &
OUT OF SERVICE PROTECTION (STORAGE!
1. Remove the tiller from the tractor. See page 2.
2. Use water pressure or a brush to thoroughly clean the
tiller to remove buildup of dirt on or under the rilier hous¬
ing.
3. Faint or lightly coat with oil any area where paint has
been worn or chipped away.
4. Lubricate the tiller according to the Every 25 Hours
Maintenance service.
5- Store the tiller in a dry place.
ACCESSORIES
EVERY 25 HOURS
Tine and housing extensions are available for the
36"
tiller,
LUBRICATE GREASE FITTINGS
so the tilling width can be increased to 46". See your Sim-
The rotary tiller has four grease fittings which should be lub-
plkity dealer for these.
i
SPECIFICATIONS
Effective Width
36" (46" with tine extensions)
Tilling Depth
Up to 8"
Power Source
Tractor center PTO dutch controls power to cushioning
V-Eelt with spring loaded idler.
Final Drive
Prclubricated and enclosed three stage roller chains
driven by hardened sprockets.
Bearings
Prefabricated and sealed rolling contact bearings.
SPECIF1CATIONS SUBJECT TO CHANGE WITHOUT NOTICE
G
