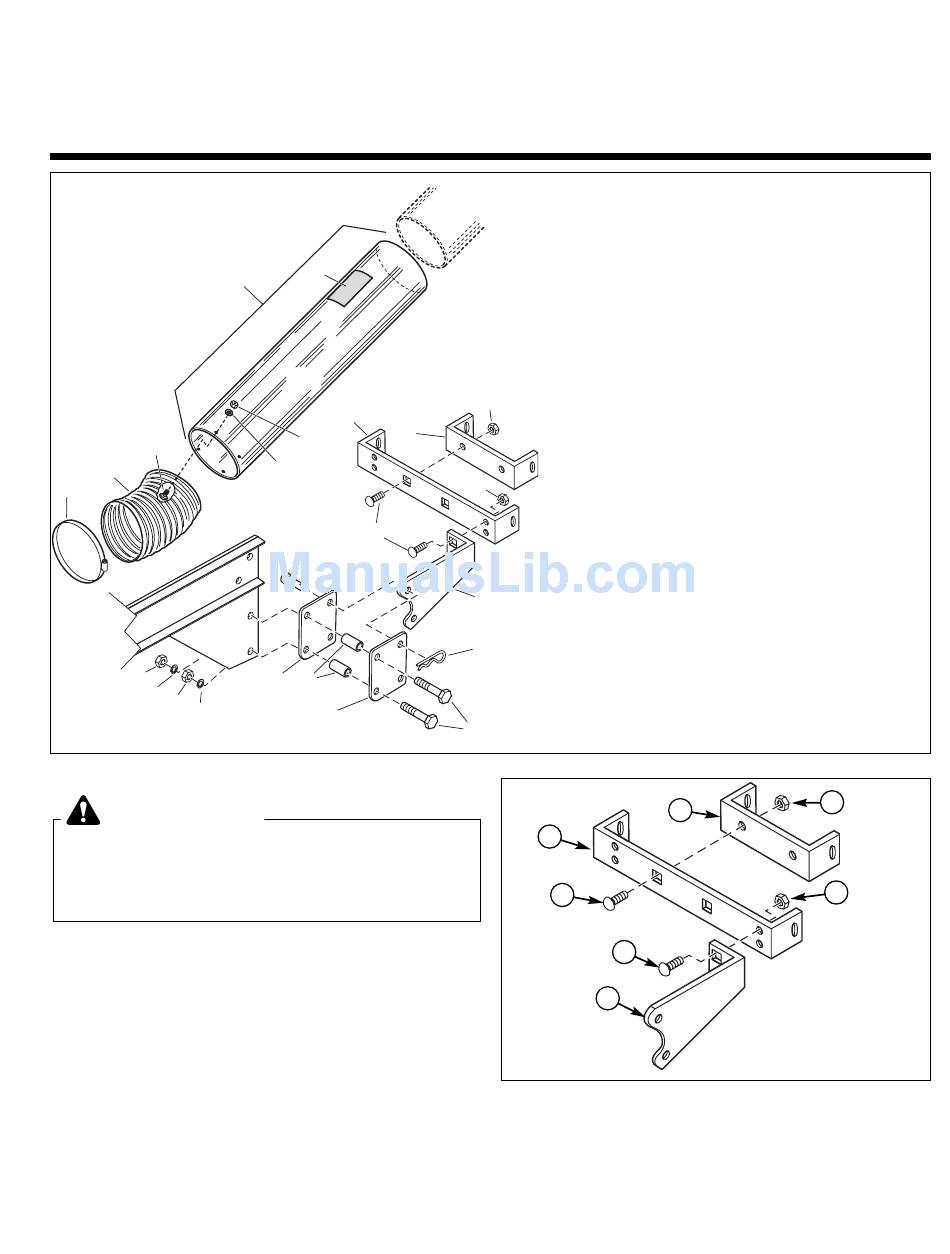

Installation Instructions Hitch & Tube Group Standard Units 1. Slide capscrews (C, Figure 3) through one inner sup- port (D), spacers (E), a second inner support (D) and tractor frame (I). Secure with lockwashers (F) and nuts (G). 2. Install hitches and plate (A, Figure 3) by sliding clevis pins (H) through tractor frame (I) as shown, one inner support (D), hitch &...
Page 3
Installation Instructions Hitch & Tube Group DISCHARGE TUBE ASSEMBLY 1. Connect the flexible hose (F, Figure 6) and clear plastic discharge tube (B). The two should overlap by approximately 2”. 2. Secure the tubes using truss head screws (E), wash- ers (D), and locknuts (C).
