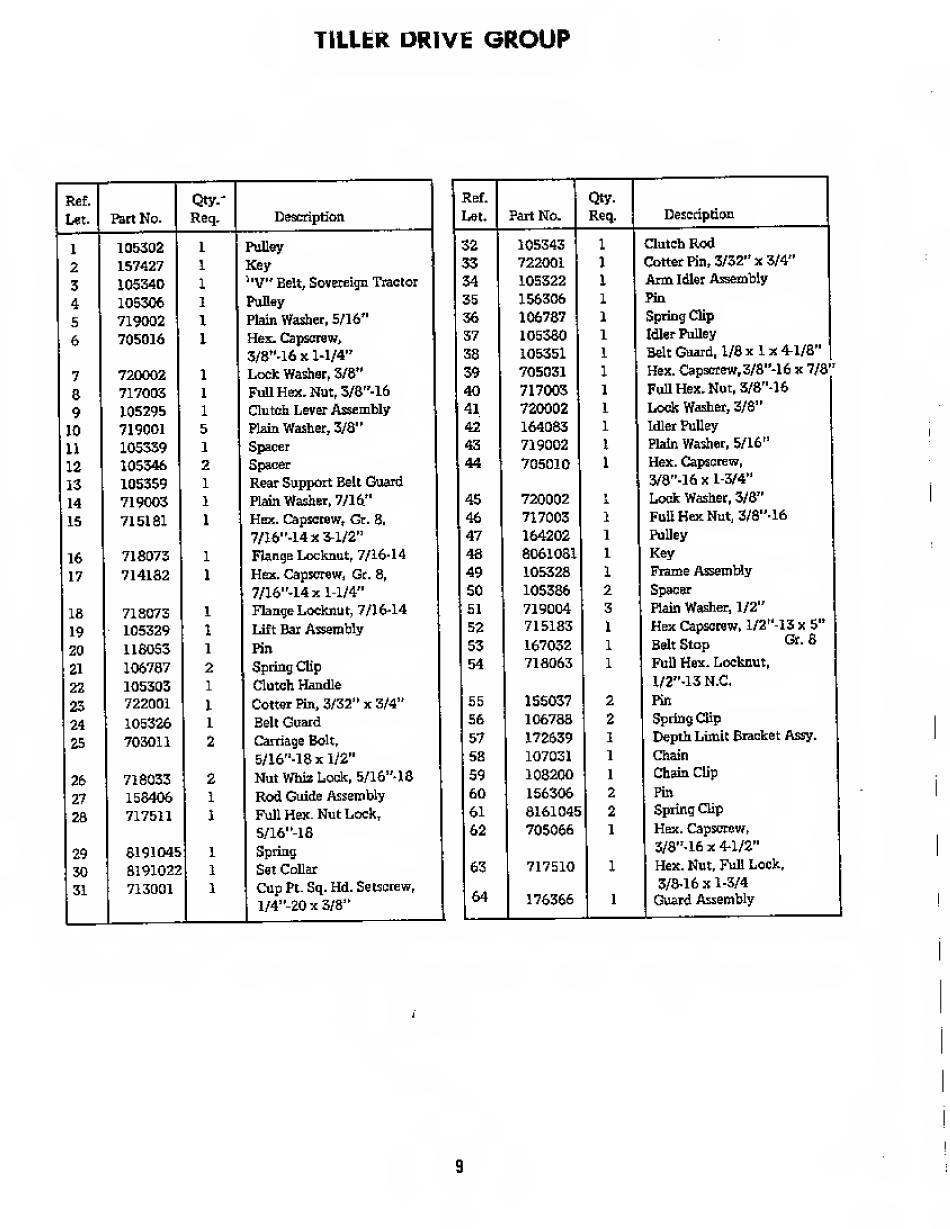

TILLER DRIVE GROUP
Ref.
Let-
Part No-
Qty-J
Req,
Description
1
106302
1 Pulley
2
157427
1 Key
3
105340 1
^'V" Belt, Sovereign Tractor
4
105306
1
Pulley
5
719002 l
Plain Washer, 5/16"
6
705016 1
Hex. Capscrew,
3/8"-l6 x 1-1/4"
7
7200Q2 1
Lock Washer, 3/8"
8
717003 1
Full Hex, Nut, 3/8"-l6
9
105295
1
Clutch. Lever Assembly
10
719001 5
Plain Washer, 3/8"
U
105339
1
Spacer
12
105346 2
Spacer
13
105359
1
Rear Support Belt Guard
14
719003
1 Plain Washer, 7/16"
15 715181
1
Hex. Capscrew, Gr. 8.
7/16"-14x 3-1/2"
16
718073 1
Flange Locknut, 7/16-14
17
714182 1
Hex. Capscrew, Gr. 8,
7/16,r'14x 1-1/4"
18 718073
1
Flange Locknut, 7/16-14
19
105329 1
Lift Bar Assembly
20
118053
1 Pin
21
106787 2
Spring Clip
22
105303
1 Clutch Handle
23
722001
1
Cotter Pin, 3/32" x 3/4"
24
105326
1 Belt Guard
25
703011 2
Carriage Bolt,
5/16"-18x 1/2"
26
718033
2
Nut Whia Lock, 5/16"-18
27
153406
1
Rod Guide Assembly
28
717511 1
Pull Heat. Nut Lock,
S/16"-18
29
8191045 1
Spring
30
8191022
1 Set Collar
31
713001
1
Cup Pt- Sq- Hd. Setscrew,
l/4"-20x 3/8"
Ref.
Let*
Part No.
Qty.
Req.
Description
32
105343 1
Clutch Rod
33
722001 1
Cotter Pin, 3/32" x 3/4"
34
105322 1
Arm Idler Assembly
35
156306 1
Pin
36
106787 1
Spring Clip
37 105380
1
Idler Pulley
38
105351
1
Belt Guard, 1/8 x 1 x 4rl/8"
39
705031 1
Hex. Capscrew, 3/8"-l 6 x 7/8"
40 717003
1
Full Hex. Nut, 3/8"-16
41 720002
1
Lock Washer, 3/8"
42 164083
1 Idler Pulley
43 719002 l
Plain Washer, 5/16"
44
705010
1
Hex. Capscrew,
3/8"-l6 x 1-3/4"
45
720002
1
A
Lock Washer, 3/8"
46 717003
1
Full Hex Nut, 3/8,J-16
47 164202
1 Pulley
43 8061081
1 Key
49 105328 1
Frame Assembly
50 105386
2
Spacer
51 719004
3
Plain Washer, 1/2"
52
715183
1
Hex Capscrew, l/2"-13 x 5"
53
167032 1
Balt Stop Gr- 8
54
718063 1
Full Hex. Locknut,
l/2"-13 N.C
55 156037
2 Pin
56 106733 2
Spring Clip
57 172639
1
Depth Limit Bracket Assy.
58 107031
1 Chain
59 108200
1
Chain Clip
60 156306
2 Pin
61
8161045 2
Spring Clip
62 705066
1
Hex. Capscrew,
3/8"'16 x 4-1/2"
63
717510 1
Hex. Nut, Full Lock,
3/8-16 x 1-3/4
64
176366 1
Guard Assembly
9
