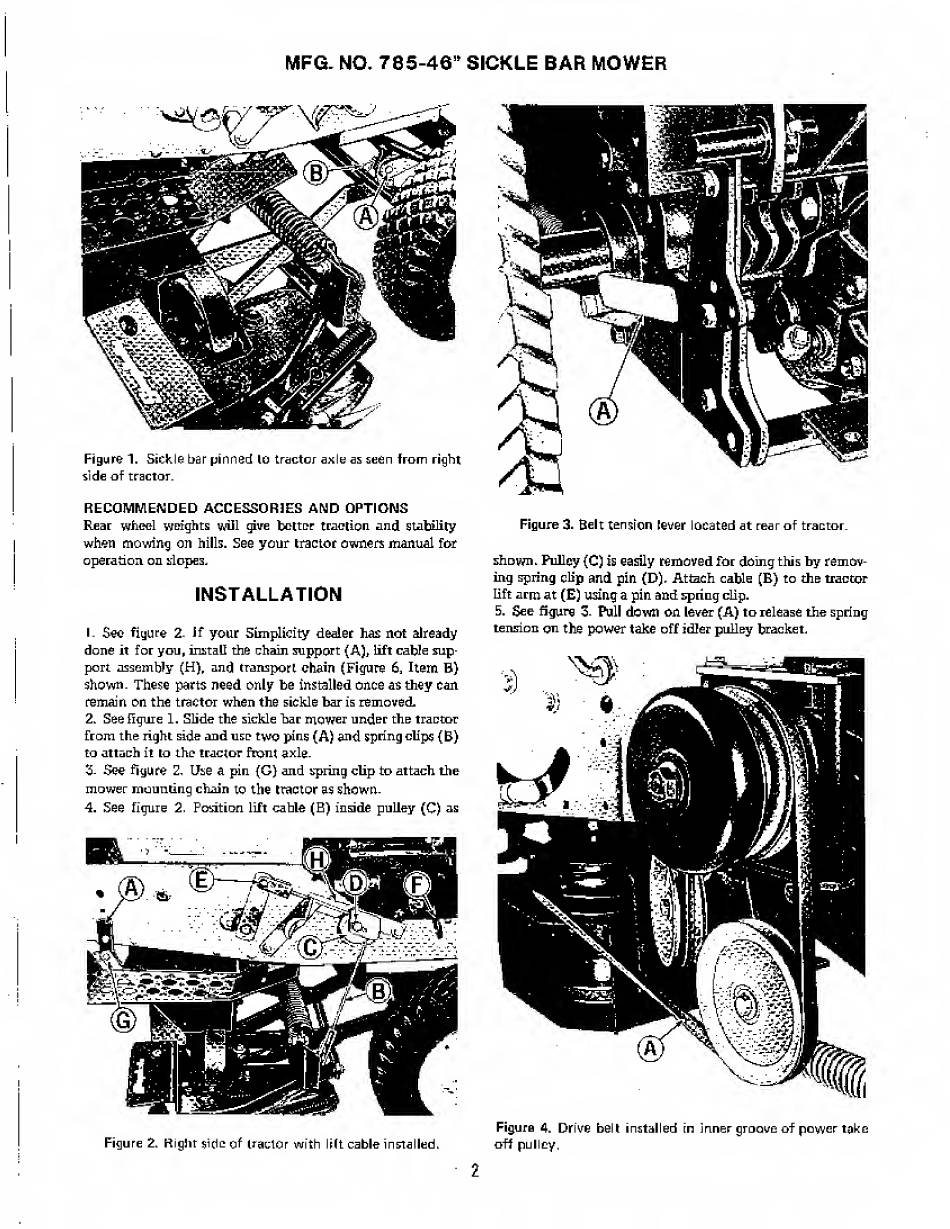

MFG. NO, 785-46" SICKLE BAR MOWER
RECOMMENDED ACCESSORIES AND OPTIONS
Rear wheel weights will give better traction and stability
when mowing on hills. See your tractor owners manual for
operation on slopes.
INSTALLATION
1. Sec figure 2- if your Simplicity dealer has not already
done it for you, install the chain support (A), lift cable sup¬
port assembly (H), and transport chain (Figure 6, Item B)
shown. These parts need only be installed once as they can
remain on the tractor when the sickle bar is removed.
2. See figure 1. Slide the sickle "bar mower under the tractor
from the right side and use two ping (A) and spring clips (B)
to attach it to the tractor front axle.
Z-
See figure 2, Use a pin {G} and spring clip to attach the
mower mounting chain to the tractor as shown.
4. See figure 2. Position lift cable (B) inside pulley (C) as
Figure 3. Belt tension lever located at rear of tractor.
shown. Pulley (C) is easily removed for doing this by remov¬
ing spring clip and pin (D). Attach cable (E) to the tractor
lift arm at (E) using a pin and spring clip.
5. See figure 3- Pull down on lever (A) to release the spring
tension on the power take off idler pulley bracket.
Figure 4. Drive belt installed in Inner groove of power tpke
Figure 2. Right side of tractor with lift cable installed. off pulley,
