- Page 1 Cello-IQ Offline DEMO User Manual Proprietary and Confidential Version 1.0 Revised and Updated: August 8, 2013 Copyright © 2013 by Pointer Telocation, Ltd.
-
Page 2: Legal Notices
Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. for any resulting loss or damages. - Page 3 Cello-IQ Offline DEMO User Manual Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd.
-
Page 4: Table Of Contents
Installing the Cello-IQ Offline DEMO Package ..............10 Setting Up and Running the TIP Injector ................ 12 Demo Operating Instructions .................. 14 Charging the Cello-IQ Offline DEMO Battery Pack ........... 17 Using an External Power Source ................18 Cello-IQ Offline DEMO User Manual Page 4 of 18 Copyright ©... -
Page 5: Introduction
Cello-IQ Offline DEMO User Manual Introduction About this Document The Cello-IQ Offline DEMO User Manual is a comprehensive guide that provides information required by sales personnel to run an offline demo of the Cello-IQ for customers. For additional information about the Cello-IQ unit, please refer to the documents listed in the References section below. -
Page 6: Overview Of The Cello-Iq Offline Demo
Cello-IQ Offline DEMO User Manual Overview of the Cello-IQ Offline DEMO The Cello-IQ Offline DEMO Kit enables you to watch a video of a real driving scenario, while simultaneously monitoring the driver behaviour via the included DFD. Since the video is a recording, the DEMO is, of course, "offline". -
Page 7: Cello-Iq Offline Demo Case Description

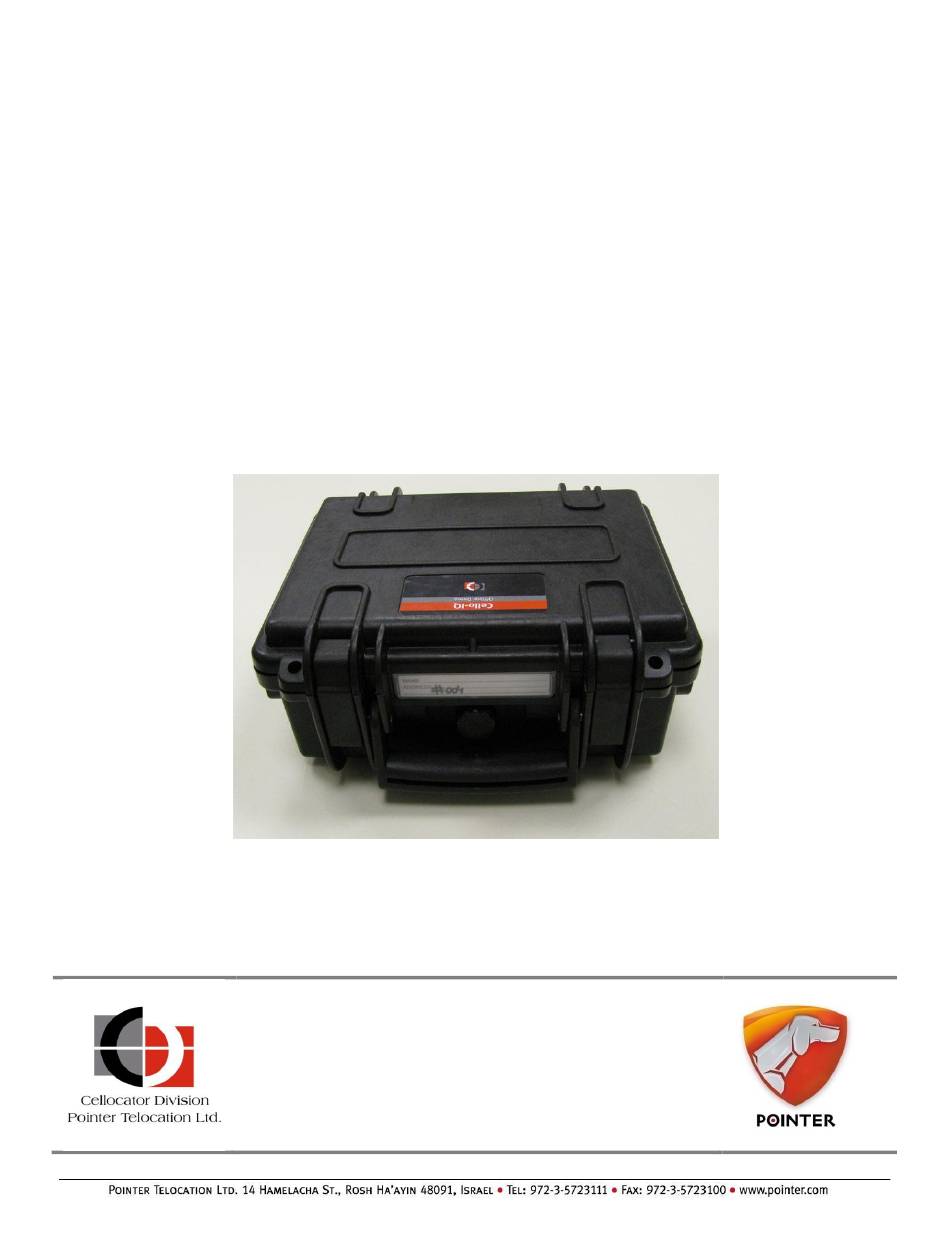

Cello-IQ Offline DEMO User Manual Cello-IQ Offline DEMO Case Description This section describes the Cello-IQ Offline DEMO components included in the dedicated case. Figure 2: Cello-IQ Offline DEMO case The case includes the following: TIP – The TIP device receives trip data from the TIP Injector application, processes it and provides the appropriate data to the DFD. - Page 8 Cello-IQ FW. 2. TIP USB connector – enables the transferring of the trip parameters from the TIP Injector application on the PC/laptop to the TIP in the Cello-IQ Offline DEMO case. Cello-IQ Offline DEMO User Manual Page 8 of 18...
- Page 9 7. 12V (external power source connector) – enables connection to an external power source (12V only) to bypass the internal batteries of the Cello-IQ Offline DEMO (when the power switch is switched to EXT POWER/CHARGER). See also Using an External Power Source.
-
Page 10: Preparing For A Demo
DotNet4 framework: http://www.microsoft.com/enus/download/confirmation.aspx?id=17851 Installing the Cello-IQ Offline DEMO Package The following procedure describes how to install and prepare the Cello-IQ Offline DEMO package for a real-case demo scenario. To install the Cello-IQ Offline DEMO package: 1. Download the Cellocator Cello-IQ Offline Demo file from Cellocator knowledgebase web site http://www.cellocator.com/knowledgebase/... - Page 11 The next step is to run the TIP Injector software itself on the PC/laptop to be used in the demo, as explained in the following section. Cello-IQ Offline DEMO User Manual Page 11 of 18 Copyright © 2013 by Pointer Telocation, Ltd.
-
Page 12: Setting Up And Running The Tip Injector
To setup and launch the TIP Injector: 1. Ensure that all of the steps listed in the Installing the Cello-IQ Offline DEMO Package section have been completed. 2. Double-click on the TIP Injector icon on the desktop, or from the TIP Injector folder, double-click on the TIP Injector application. - Page 13 Demo. The demotrip.txt file is now displayed in the Scenario section of the main window, as shown below. Figure 7: Scenario loaded The TIP Injector application setup is complete and you may close the application. Cello-IQ Offline DEMO User Manual Page 13 of 18 Copyright © 2013 by Pointer Telocation, Ltd.
-
Page 14: Demo Operating Instructions
5. Place the DFD in a more convenient location/better angle. Use the included Allen key (located behind the DFD in the lid of the Cello-IQ Offline DEMO case) to alter the angle of the DFD stand fitting and place the DFD on the panel, as shown below. - Page 15 9. Run the demo by clicking The demo will start, and the DFD will be in-synch with the trip video being played on the PC/laptop. Cello-IQ Offline DEMO User Manual Page 15 of 18 Copyright © 2013 by Pointer Telocation, Ltd.
- Page 16 In addition, return the DFD stand to its original angle and place both it and the Allen key in the lid of the case. Cello-IQ Offline DEMO User Manual Page 16 of 18 Copyright © 2013 by Pointer Telocation, Ltd.
-
Page 17: Charging The Cello-Iq Offline Demo Battery Pack
Cello-IQ Offline DEMO User Manual Charging the Cello-IQ Offline DEMO Battery Pack This section describes how to charge the Cello-IQ Offline DEMO internal battery pack. To charge the Cello-IQ Offline DEMO battery pack: 1. In the Cello-IQ Offline DEMO case, switch the power switch to EXT POWER/CHARGER. -
Page 18: Using An External Power Source
Offline DEMO internal battery pack. To use an external power source: 1. In the Cello-IQ Offline DEMO case, switch the power switch to EXT POWER/CHARGER. 2. Connect the external power source (not included in the Cello-IQ Offline DEMO package) to the 12V connector. The DFD System LED should light up.
