- Page 1 Cellocator™ CelloTrack 10y USER Manaul Proprietary and Confidential Version 1.0 Revised and Updated: May 30, 2018 Copyright © 2018 by Pointer Telocation, Ltd.
-
Page 2: Legal Notices
Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. for any resulting loss or damages. - Page 3 CelloTrack 10y Overview Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd.
-
Page 4: About This Document

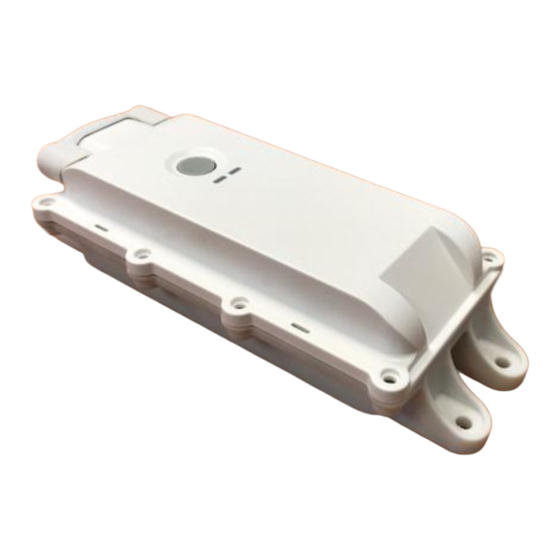

Light Emitted Diode Automatic Power Save (modem feature) General Purpose Input / Output GPIO References Reference Description Revision History Version Date Description May 29, 2018 Initial release CelloTrack T Family Overview Page 4 Copyright © 2018 by Pointer Telocation, Ltd. - Page 5 A programmable (on/off/test/panic) push button. Two monitoring LEDs for GSM and GNSS status indication. A charging and communication connector. CelloTrack T Family Overview Page 5 Copyright © 2018 by Pointer Telocation, Ltd.
- Page 6 Main Advantages over the Regular CelloTrack Longer life time between maintenance procedures Low maintenance efforts and cost Wider operating temperature range (-30°C to 75°C instead of -20°C to 60°C) CelloTrack T Family Overview Page 6 Copyright © 2018 by Pointer Telocation, Ltd.
- Page 7 A/D threshold events Frequency threshold events GNSS status events Watchdog Battery level reporting Network dependent traffic Opt Cellocator+ (Maintenance) server support OTA/Serial Firmware upgrade OTA/Serial configuration update CelloTrack T Family Overview Page 7 Copyright © 2018 by Pointer Telocation, Ltd.
-
Page 8: The Cellotrack Interface
(GSM), the second zone – the GNSS status. Each zone will last 3 seconds with 1 second of LED off interval between them. 5 seconds LED Off interval will separate between each cycle. CelloTrack T Family Overview Page 8 Copyright © 2018 by Pointer Telocation, Ltd. - Page 9 2.4 GHz Proprietary wireless interface for MultiSense Wireless integration. Power lithium-thionyl chloride (SOCl2), 3.6V, 42.5 Ah, primary Internal Battery (non-rechargeable) Average Current On taking location and transmission session: 85mA Consumption CelloTrack T Family Overview Page 9 Copyright © 2018 by Pointer Telocation, Ltd.
- Page 10 Enclosure material Lexan 943 Dimensions ~203mm x 81mm x 50mm ~ 510 gr Weight CelloTrack 10y – 42.5 AH Battery Life TX / 24Hrs Life time [years] 0.35 CelloTrack T Family Overview Page 10 Copyright © 2018 by Pointer Telocation, Ltd.
- Page 11 CelloTrack 10y Overview TX / 24Hrs Life time [years] 10.7 CelloTrack T Family Overview Page 11 Copyright © 2018 by Pointer Telocation, Ltd.
