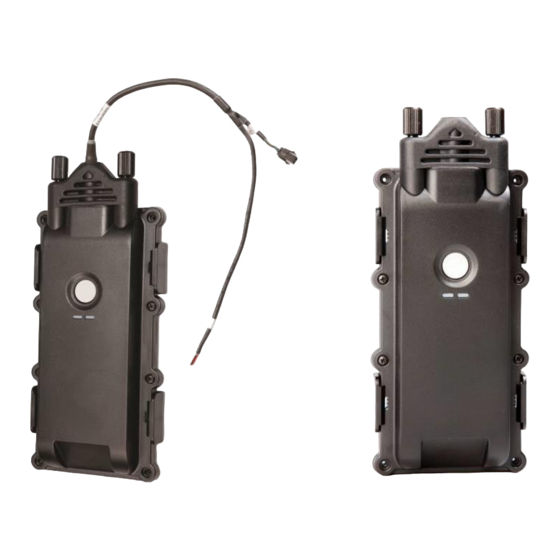

CelloTrack XT LTE
(
LV300.PS) Overview
Version 1.2
Revised and Updated: September 10, 2020
Copyright © 2019 by Pointer Telocation, Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cellocator CelloTrack XT LTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pointer Cellocator CelloTrack XT LTE

Summary of Contents for Pointer Cellocator CelloTrack XT LTE

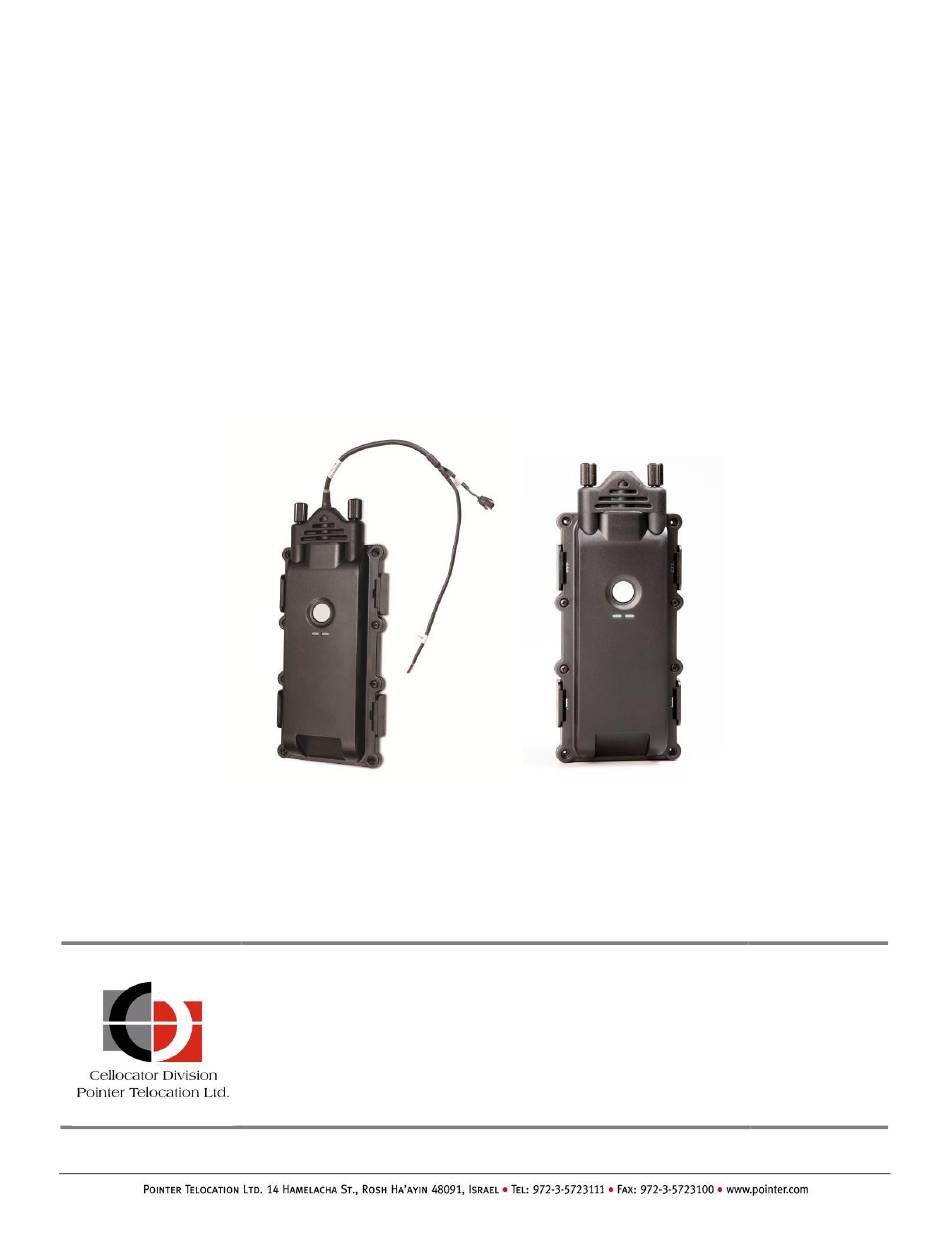

  • Page 1 CelloTrack XT LTE LV300.PS) Overview Version 1.2 Revised and Updated: September 10, 2020 Copyright © 2019 by Pointer Telocation, Ltd.
  • Page 2 Customers of Pointer Telocation Ltd. using, integrating, and/or selling the product for use in such applications do so at their own risk and agree to fully indemnify Pointer Telocation Ltd. for any resulting loss or damages.
  • Page 3 CelloTrack XT LTE Overview Intellectual Property Copyright in and to this document is owned solely by Pointer Telocation Ltd. Nothing in this document shall be construed as granting you any license to any intellectual property rights subsisting in or related to the subject matter of this document including, without limitation, patents, patent applications, trademarks, copyrights or other intellectual property rights, all of which remain the sole property of Pointer Telocation Ltd.
  • Page 4 Une distance d'au moins 20 cm. entre l'équipement et toutes les personnes devraient être maintenues pendant le fonctionnement de l'équipement © Copyright 2020. All rights reserved. CelloTrack XT LTE Overview.docx Page 4 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 5: Table Of Contents

    4.3.3 Panic/Distress ....................21 4.3.4 Battery Status Manual Check ................21 BLE Functionality ......................22 MultiSense and MultiSense-TH ..................22 CelloTrack Feature List ....................23 CelloTrack XT LTE Overview.docx Page 5 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
  • Page 6 Cellocator Wireless Communication Protocol ..............39 Cellocator Integration Package Manual ................39 Evaluation Suite Manual ....................39 Cellocator Programmer Manual ..................40 Integration Manual ..................... 40 Training Presentation ....................40 CelloTrack XT LTE Overview.docx Page 6 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 7: Introduction

    Short Message Service (GSM) International Protection Rating Eight Months Amper Hour 3 Dimensions Light Emitted Diode Automatic Power Save (modem feature) General Purpose Input / Output GPIO CelloTrack XT LTE Overview.docx Page 7 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 8: References

    CelloTrack LTE Plus Overview References Reference Description Programmer Manual Wireless Communication Protocol Revision History Version Date Description CelloTrack XT LTE Overview.docx Page 8 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 9: The Cellotrack Lte Plus Overview

    A 3D accelerometer that detects crashes (accidents), movement and vibrations of assets and enables different transmission rates for a moving asset and a standing asset. CelloTrack XT LTE Overview.docx Page 9 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 10: Main Advantages Over The Cellotrack T

    Supports 4G (LTE Cat1) Cellular networks. Extended operating temperature range (-30°C to 75°C instead of -20°C to 60°C) Supports a Wireless Sensor Network and up to 16 MultiSense devices. CelloTrack XT LTE Overview.docx Page 10 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 11: The Cellotrack Lte Plus Variants

    The unit charges its battery when the power is connected and uses its battery and the advanced power management algorithms to maintain tracking when vehicle power is disconnected. CelloTrack XT LTE Overview.docx Page 11 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 12: Cellotrack Lte Plus Variants

    Europe. PN: 711-00168 CelloTrack Charger – CelloTrack external charger to be used in the USA. PN: 711-00170 Additional XT (Extreme CelloTrack XT Battery Temperature) battery. CelloTrack XT LTE Overview.docx Page 12 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 13: The Cellotrack Cradle

    CelloTrack in the cradle by using four cable ties. Detection of removal of the cradle from the mounting surface (cradle tamper detection) is also supported. CelloTrack XT LTE Overview.docx Page 13 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 14: The Cellotrack Magnetic Cradle

    16 Kg, i.e, 64 Kg per cradle, while the CelloTrack weight is approximately only 0.55 Kg. The CelloTrack Magnetic Cradle has been successfully tested while driving in difficult conditions on rough roads. CelloTrack XT LTE Overview.docx Page 14 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 15: The Cellotrack Lte Plus Description

    2 – COMM LED 3 – SYS LED 4 – Cradle Tamper Switch 5 – Cradle 6 – Unit Tamper Switch 7 – Connector 8 – Connector Cover CelloTrack XT LTE Overview.docx Page 15 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 16: The Cellotrack Power Interface

    The CelloTrack 6-pin connector is protected by a plastic cover, providing IP67 compliancy. The following illustration shows the CelloTrack unit with the rubber cover removed. CelloTrack XT LTE Overview.docx Page 16 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 17: Cellotrack Power Harness

    Programming Connector Pin No. VCC (9-32v) black Ground (GND) orange General Purpose I/O (GP) brown General Purpose I/O (GP) green RS232 TXD yellow RS232 RXD CelloTrack XT LTE Overview.docx Page 17 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 18: Cellotrack Comm Led Description

    Each zone will last 3 seconds with 1 second of LED off interval between them. 5 seconds LED Off interval will separate between each cycle. 4.2.2 Cellular Network Monitoring Zone Status Blinking pattern GSM Off Not registered to GSM/No SIM CelloTrack XT LTE Overview.docx Page 18 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
  • Page 19 Blinking pattern Registered in Home GSM network (not attached to GPRS) Registered in Roaming GSM network (not attached to GPRS) Attached to GPRS/home Attached to GPRS/roaming CelloTrack XT LTE Overview.docx Page 19 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 20: Gnss Monitoring Zone

    Note: To save energy, the COMM LED performs only 10 indications cycles (total time 120 seconds) upon unit activation and/or upon unit reset, and is then shut off. CelloTrack XT LTE Overview.docx Page 20 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 21: User Features

    The SYS LED shall than reflect the battery SOH (State of Health): If the SOH is above the preprogrammed minimum - the SYS LED lights for 2 seconds in Green. CelloTrack XT LTE Overview.docx Page 21 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 22: Ble Functionality

    For further information about the configurable BLE parameters, refer to the Programming Manual. MultiSense and MultiSense-TH The MultiSense is a remote peripheral sensor, communicating and configured by the CelloTrack 10y via a short-range RF link. CelloTrack XT LTE Overview.docx Page 22 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 23: Cellotrack Feature List

    Road curve smoothing Cell-ID report Offline Tracking Wake up event Movement detection Crash detection Time based events (adaptive to movement status) Specific time (in day) reporting CelloTrack XT LTE Overview.docx Page 23 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 24: Cellotrack Xt Lte Overview

    Nested Output activation Gradual Output activation Programmed Output activation The CelloTrack Power support also the following features: External Power monitoring Temp dependent Backup Battery charging CelloTrack XT LTE Overview.docx Page 24 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 25: Cellotrack Operational States

    Sensor checking Once per second. Glancing Occurs periodically or at a specific time of day; refer to the following Error! Reference source not ound. section. CelloTrack XT LTE Overview.docx Page 25 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 26: Glancing

    GNSS data. If GNSS acquisition fails during the current Glancing session, the last known GNSS data is sent. This message can either be sent as a regular event and/or configured as a distress session. CelloTrack XT LTE Overview.docx Page 26 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 27: Specific Time Glancing

    If both Not Live Tracking and Error! Reference source not found. are enabled, and he unit is in the Hibernation state, then when motion is detected the unit immediately CelloTrack XT LTE Overview.docx Page 27 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 28: Tracking State

    In the Tracking state, the unit provides the best tracking and communication features, generates time/location updates (known as time events), and behaves as a standard fleet management oriented unit. This is the most energy-intensive state. CelloTrack XT LTE Overview.docx Page 28 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 29: Live Tracking

    Time events are enabled and the time event interval is longer than 90 seconds. One valid GNSS fix has already been set. The GNSS module is switched off immediately after the time event message is generated. CelloTrack XT LTE Overview.docx Page 29 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 30: Offline Tracking

    This transmission session is known as Offline tracking data upload session which is one of the Hibernation state modes as explained in the Error! Reference source not ound. section. CelloTrack XT LTE Overview.docx Page 30 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 31: Improved (Take Location) Tracking Mode

    MultiSense devices and log the sensor states. The reporting policy of the BOD/EOD Tracking Mode is as follows: Upon movement detection (short time) – start event is logged. CelloTrack XT LTE Overview.docx Page 31 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 32: Radio-Off

    When lack of motion is detected continuously for a preprogrammed duration (typically 40 seconds from the initial valid lack of motion detection), the unit reports a stop event, which indicates end of movement. CelloTrack XT LTE Overview.docx Page 32 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
  • Page 33 Engine On Operational Mode Ignition On Programmable Filter ---------------------------------------------------------------------------------------------------- NOTE: Motion Detection is operable when the unit is in any state other than Not Activated. ---------------------------------------------------------------------------------------------------- CelloTrack XT LTE Overview.docx Page 33 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 34: Cellotrack Power Features

    The temperature is out of the permitted range. The external power source is disconnected. The unit enters the Hibernation state (if charging in Hibernation is disabled). CelloTrack XT LTE Overview.docx Page 34 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 35: Cellotrack Lte Plus Specifications

    Discrete wet – Logic 1 and 0 Configurable thresholds. Analog inputs with variable resolution - 8bit - 0-2.5V: 20mV resolution, accuracy ±30mV; 8bit - 0-30V: 100mV resolution, accuracy ±100mV CelloTrack XT LTE Overview.docx Page 35 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
  • Page 36 ISO 16750 part 3 & 4 Humidity, chemical Magnetic or screw mounted cradle Mounting Tampering detection Regulatory compliance / certification CE Safety EN60950-1:2001+A11:2004 Part 15 Subpart B, part 22/24 compliant CelloTrack XT LTE Overview.docx Page 36 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
  • Page 37 Annual Failed Ratio <0.5% compliant RoHS and conflict minerals Dimensions & Weight Dimensions ~155mm x 81mm x 45mm CelloTrack XT ~ 330gr Weight CelloTrack Power XT ~ 370gr CelloTrack XT LTE Overview.docx Page 37 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 38: Cellotrack Release Package

    Figure 1: Operation Flow The Cellocator Programmer supports the CelloTrack LTE Editor which can read, edit and write PL parameters for CelloTrack LTE and MultiSense devices. CelloTrack XT LTE Overview.docx Page 38 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 39: Integration Package (Cellocator Gw)

    The Suite is also intended to facilitate the development of interfaces to the Cellocator system by integrators or service providers. CelloTrack XT LTE Overview.docx Page 39 of 40 Copyright © 2020 by Pointer Telocation, Ltd.

  • Page 40: Cellotrack Xt Lte Overview.docx

    This document provides the software integrator with information and hints on how to integrate an application with the CelloTrack. Training Presentation This documentation provides preliminary Integration Manual information through the beta phase. CelloTrack XT LTE Overview.docx Page 40 of 40 Copyright © 2020 by Pointer Telocation, Ltd.
