Summary of Contents for Chauvet DJ FOLLOWSPOT 200ST

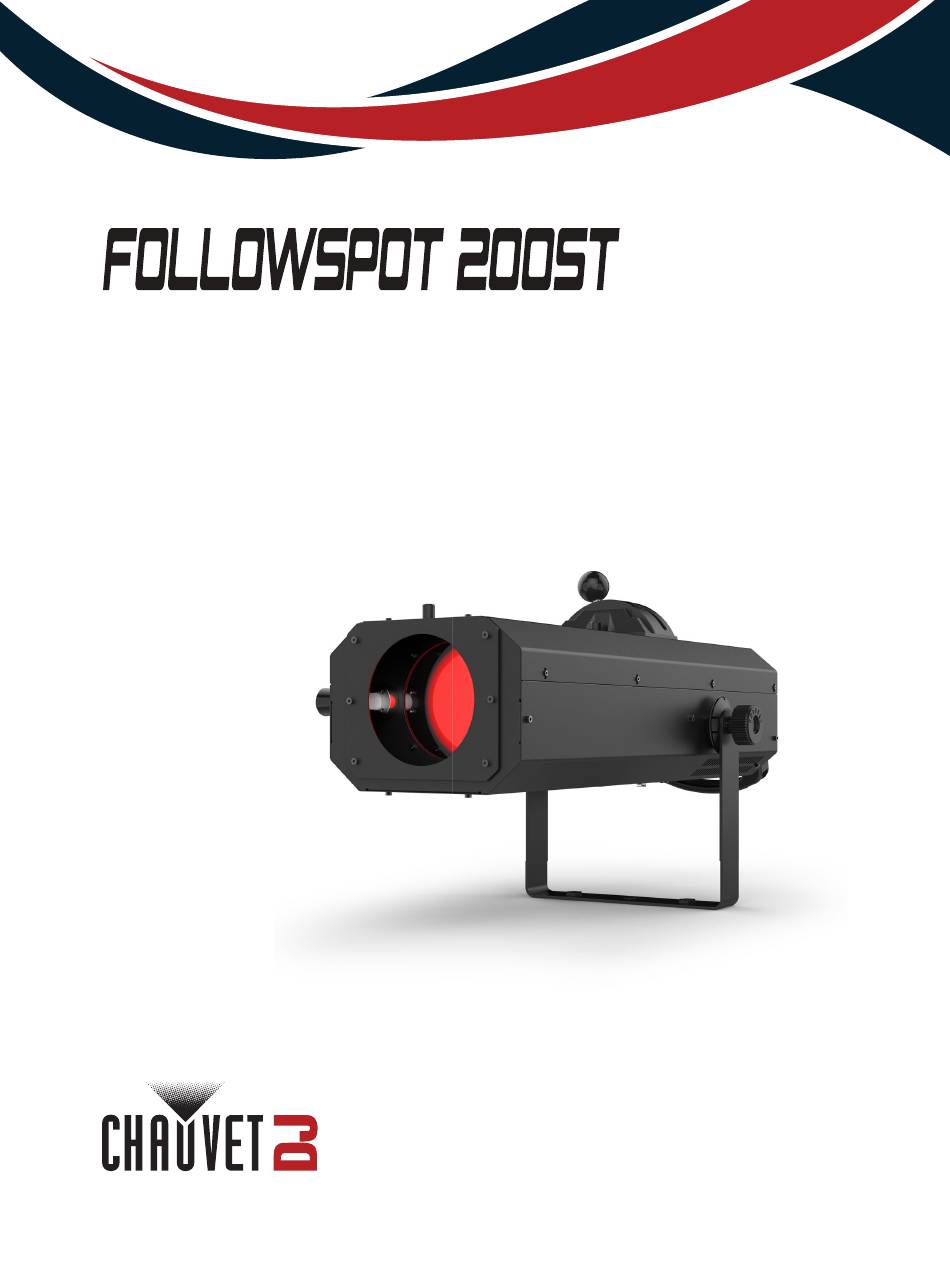

- Page 1 User Manual...
-
Page 2: Edition Notes
Edition Notes The Followspot 200ST User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Followspot 200ST as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Followspot are registered trademarks or trademarks of Chauvet &... -
Page 3: Table Of Contents
DMX Charts......................Manual Configuration ..................Dimmer Control ....................LED Control......................Blackout ........................Strobe ........................Color Wheel ....................... Color Wheel Calibration Mode ................5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................Followspot 200ST User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Followspot 200ST User Manual Rev. 1... -
Page 5: Safety Notes
Use outdoors. ♦ Submerge. ♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Followspot 200ST User Manual Rev. 1... -
Page 6: Introduction
Product Overview Name Name Preset color menu Power on/off Fuse holder DMX in/out LED control menu Bracket adjustment knob Iris control lever Focus adjustment knob LCD display Power in Menu buttons Zoom adjustment knob Followspot 200ST User Manual Rev. 1... -
Page 7: Product Dimensions
Introduction Product Dimensions 22.9 in 582 mm 5.4 in 138 mm 8.5 in 216 mm 10.6 in 268 mm 11 in 279 mm 7.4 in 188 mm Followspot 200ST User Manual Rev. 1... -
Page 8: Setup
3. Setup AC Power The Followspot 200ST has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation Once the Followspot 200ST is mounted, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Selects the color green. <Magenta> Selects the color magenta. <Yellow> Selects the color yellow. <CTO> Selects CTO. <White> Selects the color white. <DMX> Activates DMX mode. <MANUAL> Activates manual mode. <UP>/<DOWN> Selects the DMX channel from 001–510. Followspot 200ST User Manual Rev. 1... -
Page 11: Menu Map
DMX_Primer_rev05_WO.pdf. Personality and Starting Address The Followspot 200ST uses up to 3 DMX channels in the 3-channel DMX mode, which defines the highest configurable address to 510. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 12: Manual Configuration
Strobe 1. Hold <ON> for 3 seconds to activate the strobe effect. Color Wheel To run the Followspot 200ST with a preset color: 1. Press the preset color menu buttons, from Orange, Blue, Red, Green, Magenta, Yellow, CTO, or White. -
Page 13: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Followspot 200ST User Manual Rev. 1... -
Page 14: Technical Specifications
12° to 17° 54,569 lux 8,731 lux Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Fan-assisted Convection I/O Connector Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number Followspot 200ST 08042340 781462226886 Followspot 200ST User Manual Rev. 1... -
Page 15: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Followspot 200ST User Manual Rev. 1...
