Summary of Contents for Chauvet DJ INTIMIDATOR SPOT 260X

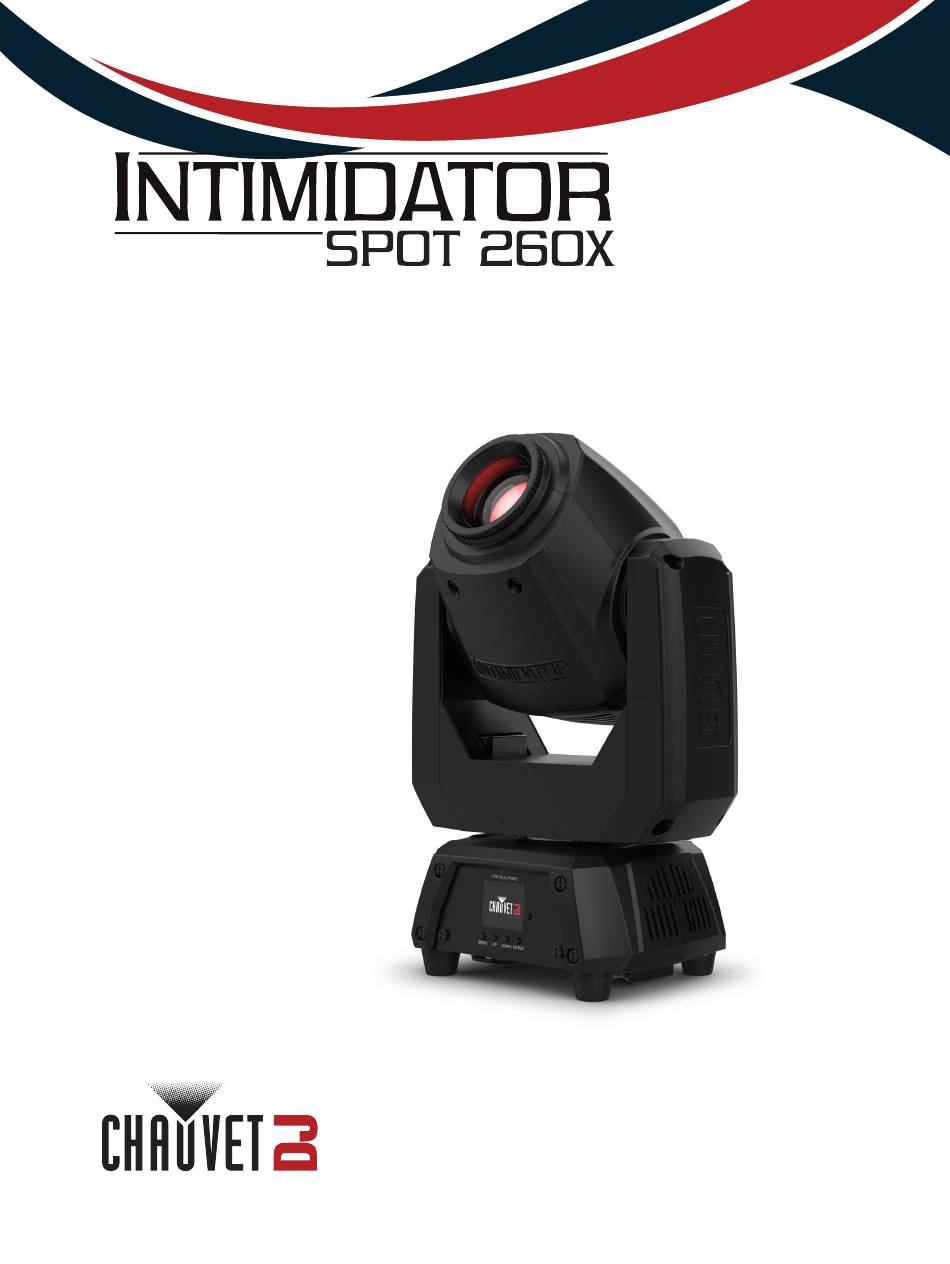

  • Page 1 User Manual...
  • Page 2 Edition Notes The Intimidator Spot 260X User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Intimidator Spot 260X as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and Intimidator are registered trademarks or trademarks of Chauvet &...
  • Page 3 Pan Angle......................Tilt Angle ......................Totem Mode ....................... Sensitivity ......................DMX Loss......................Indicator ......................Flash if DMX....................... Reset........................Factory Reset..................... System Information ..................Master/Slave Mode ..................RFC Remote Control..................RFC Remote Binding ..................Intimidator Spot 260X User Manual Rev. 1...
  • Page 4 Table of Contents RFC Control Options ..................RFC Remote Control Operation ................. RFC-XL Remote Control Operation ..............Zero Adjust Mode..................5. Maintenance..................Product Maintenance ..................Gobo Maintenance..................6. Technical Specifications..............Contact Us................... Warranty & Returns..................Intimidator Spot 260X User Manual Rev. 1...
  • Page 5 Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Intimidator Spot 260X User Manual Rev. 1...
  • Page 6 This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Intimidator Spot 260X User Manual Rev. 1...
  • Page 7 Introduction 2. Introduction Product Overview Name Name LCD display Power In/out Menu buttons Fuse holder LED indicator 3-pin DMX In/out Intimidator Spot 260X User Manual Rev. 1...
  • Page 8 Introduction Product Dimensions 6.4 in 90 in 163 mm 228 mm 7.4 in 13.6 in 187 mm 346 mm 7.5 in 193 mm 6.9 in 176 mm Intimidator Spot 260X User Manual Rev. 1...
  • Page 9 3. Setup AC Power The Intimidator Spot 260X has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 10 It is possible to link up to 7 Intimidator Spot 260X products on 120 VAC or up to 11 products on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor as power linking connectors and requirements may differ by country or region.
  • Page 11 Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 260X may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming.
  • Page 12 Setup Gobo Wheel Rotating Gobo Dimensions 24 mm 20 mm Intimidator Spot 260X User Manual Rev. 1...
  • Page 13 This provides a layer of protection against the high temperature from the lamp. • All custom gobos in the Intimidator Spot 260X gobo wheel must be aluminum or glass. Procedure Follow the recommended procedure below to remove or replace the gobos: 1.
  • Page 14 Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the Intimidator Spot 260X product page on www.chauvetdj.com for the latest menu map and software.
  • Page 15 Running Mode: _ _ _ _ _ Displays the current running mode Sys Info DMX Address: _ _ _ Displays the current DMX address Displays the current product Temperature: _ _ _ temperature Intimidator Spot 260X User Manual Rev. 1...
  • Page 16 Operation DMX Configuration Starting Address The Intimidator Spot 260X uses up to 14 DMX channels, which defines the highest configurable/ recommended address to 499. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses.
  • Page 17 008  119 Gobo rotation clockwise, slow to fast Gobo rotation counter-clockwise, slow to 120  231 fast Gobo Rotation 232  239 Gobo bounce, short 240  247 Gobo bounce, half 248  255 Gobo bounce, long Intimidator Spot 260X User Manual Rev. 1...
  • Page 18 184  199 Sound active macro 4 200  215 Sound active macro 5 216  231 Sound active macro 6 232  247 Sound active macro 7 248  255 Sound active macro 8 Intimidator Spot 260X User Manual Rev. 1...
  • Page 19 DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Auto Program To run the Intimidator Spot 260X with a(n) auto program, follow the instructions below. 1. Press <MENU> . 2. Use <UP> or <DOWN> to select Run Mode.
  • Page 20 6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°). 7. Press <ENTER>. Tilt Angle To set the tilt angle range on the Intimidator Spot 260X, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup.
  • Page 21 6. Use <UP> or <DOWN> to select from 001 to 100. 7. Press <ENTER>. DMX Loss To set the action the Intimidator Spot 260X will do when signal is lost, do the following: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup.
  • Page 22 The Master/Slave mode allows a single Intimidator Spot 260X product (the “master”) to control the actions of one or more Intimidator Spot 260X products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in standalone mode, while the slave products will be set to operate in slave mode.
  • Page 23 RFC Remote Binding To enable RF control, the product must bind to the RFC/RFC-XL. To bind the Intimidator Spot 260X to an RFC/RFC-XL, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup.
  • Page 24 The RFC remote will not respond to any inputs when Freeze or Black Out is activated. If the remote does not respond when a button is pressed, try pressing <FREEZE> or <BLACK OUT>. Freeze or Black Out may have been inadvertently activated. Intimidator Spot 260X User Manual Rev. 1...
  • Page 25 The RFC-XL remote will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing <BLACK OUT>. You may have inadvertently activated Black Out. Intimidator Spot 260X User Manual Rev. 1...
  • Page 26 Operation Zero Adjust Mode The Intimidator Spot 260X contains a passcode protected mode which allows the user to calibrate and adjust several of the product’s operating parameters. In order to access this mode, do the following: 1. Press and hold <MENU> for at least 3 seconds.
  • Page 27 (needle tip applier recommended). Make sure the gobo holder is rotating freely and is not making any abnormal noise. 8. Reinstall the gobos in the gobo holder. Make sure the gobos are in the correct positions. 9. Reinstall the gobo holder in the unit. Intimidator Spot 260X User Manual Rev. 1...
  • Page 28 Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR 8 or 14 Ordering Product Name Item Code UPC Number Intimidator Spot 260X 08011953 781462223014 Intimidator Spot 260X User Manual Rev. 1...
  • Page 29 For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Intimidator Spot 260X User Manual Rev. 1...
