TX-2CH-LORA is a long-range radio transceiver with variable code encoding. In combination with
the RX-2CH-LORA, it can manage two relay outputs in bistable, monostable, or timer mode and
receive the activation status of the relays and the radio link quality level. It has three operating
modes:
Continuous mode: Controls the relays of the RX-2CH-LORA based on the status of inputs
A and B of the TX-2CH-LORA.
Remote control mode: Allows the control of relays A and B, using relay programming
options such as monostable, bistable, and timer modes.
State change mode: Similar to Continuous mode, but transmission and acknowledgment
cycles are only active when there is a state change of inputs A and B and at predefined
intervals, ensuring RF bandwidth occupation within the limits imposed by the EN 300 220-2
standard.

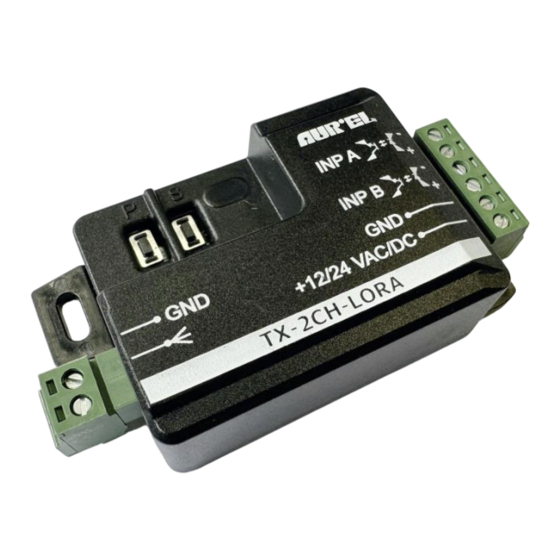

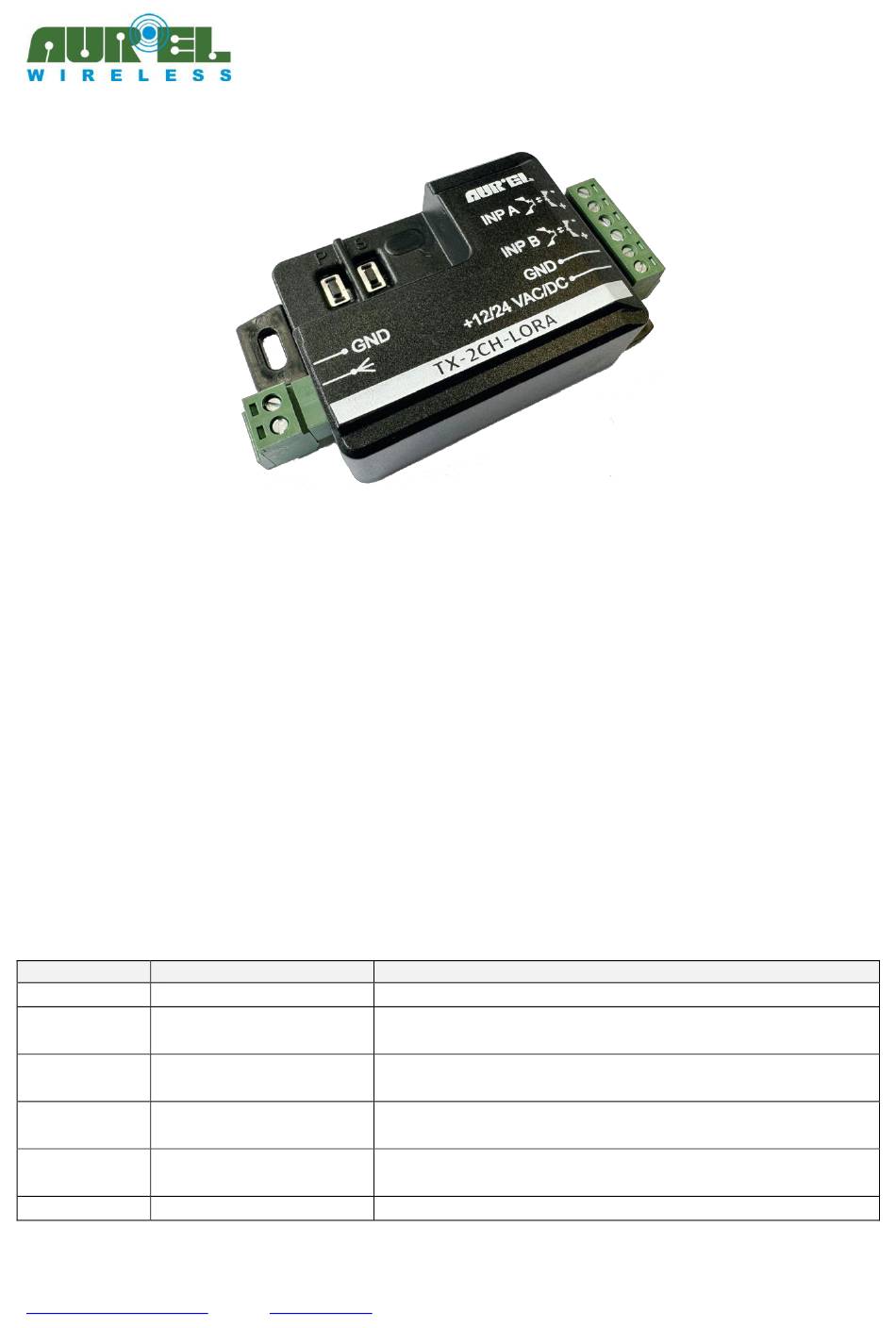

It is housed in a plastic enclosure with wall-mounting capability. Two programming buttons and
two RGB LEDs are accessible for displaying the operating status, programming, and
acknowledgment of relays A and B from the RX-2CH-LORA. A red LED indicates the power status
within the range of 8-24Vac or 10-33Vdc. The connections are detachable with a 3.81mm pitch
terminal block for cables up to 1.5mm².
Connections
No.
1
Power Positive
2
Power Negative
3
Input +Opto B
4
Input -Opto B
5
Input +Opto A
6
Input -Opto A
Le caratteristiche tecniche possono subire variazioni senza preavviso. AUR°EL S.p.A. non si assume la responsabilità di danni causati dall'uso improprio del dispositivo.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
(7)
(8)
Name
Connect to 8-24Vac or +10÷33Vdc power supply
Connect to the negative pole of the power supply or
GND
Positive input for channel B activation. Activated with
+5÷30Vdc
Negative input for channel B activation. Connect to GND
or negative
Positive input for channel A activation. Activated with
+5÷30Vdc
Negative input for channel A activation. Connect to GND
- email:
rfcomm@aurel.it
TX-2CH-LORA
(6)
(1)
Description
User manual
Rev 1.2 24/07/2024
Pag 1 di 8
Advertisement
Table of Contents
Related Manuals for AUREL TX-2CH-LORA
Summary of Contents for AUREL TX-2CH-LORA
- Page 1 650201636G User manual TX-2CH-LORA is a long-range radio transceiver with variable code encoding. In combination with the RX-2CH-LORA, it can manage two relay outputs in bistable, monostable, or timer mode and receive the activation status of the relays and the radio link quality level. It has three operating...
-
Page 2: Buttons And Leds
TX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201636G User manual or negative Antenna Ground Connect to the 50Ω coaxial cable shield or GND Connect to a 50Ω single-pole antenna or the central pole Antenna of a coaxial Electrical Diagram for Inputs A and B +Opto A, B... -
Page 3: Power-Up Procedure
LEDs A and B remain off while LED ON blinks every 2 seconds. First Power-up Functionality Normally, the TX-2CH-LORA is in standby with an average consumption of 7mA at 12V, with the radio part turned off until one of the two inputs, Opto A or Opto B, is activated. If the TX-2CH-... -
Page 4: Remote Control Mode
--------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201636G User manual both inputs A and B of the TX-2CH-LORA to the corresponding relays A and B of the RX-2CH- LORA. Remote Control Mode In this mode, the TX-2CH-LORA acts as a remote control, and the relay settings of the RX-2CH- LORA are displayed on LEDs A and B on the TX-2CH-LORA. -
Page 5: Technical Specifications
TX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201636G User manual Two solid green LEDs = EXCELLENT quality Two solid yellow LEDs = FAIR quality Two solid red LEDs = POOR quality Two flashing red LEDs = NO LINK Technical Specifications Min. - Page 6 TX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201636G User manual Application Example for Remote Control Mode: The following diagram shows the possibility of installing an RX-2CH-LORA on an existing gate opener system, using power and a start contact for the automation board activation. Up to 100 devices, including remote controls and TX- 2CHLORA units, can be associated, operating in parallel with the radio system integrated into the automation.
-
Page 7: Regulatory Standards
IEC 62133. Manufacturer's Declaration of Conformity EU Hereby, Aurel S.p.A. declares that the radio equipment type TX-2CH-LORA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aurelwireless.com/declaration-of-conformity/... -
Page 8: Weee Marking
TX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201636G User manual Recommendation CEPT 70-03 The device operates in a harmonized frequency band and therefore, in order to comply with current regulations, the device must be used on the time scale with a maximum duty-cycle time of 10% (equivalent to 6 minutes usage on 60).
