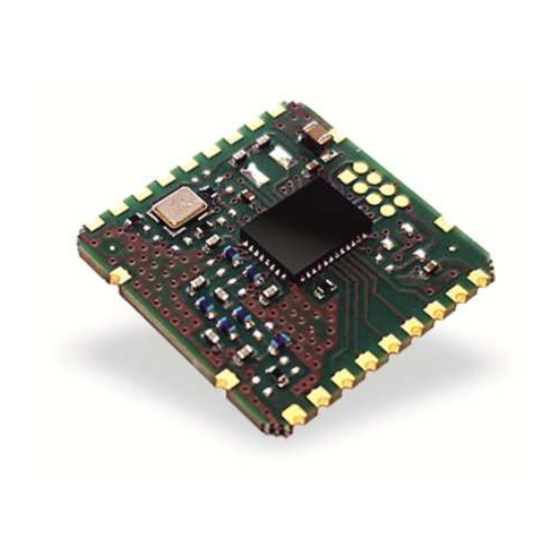

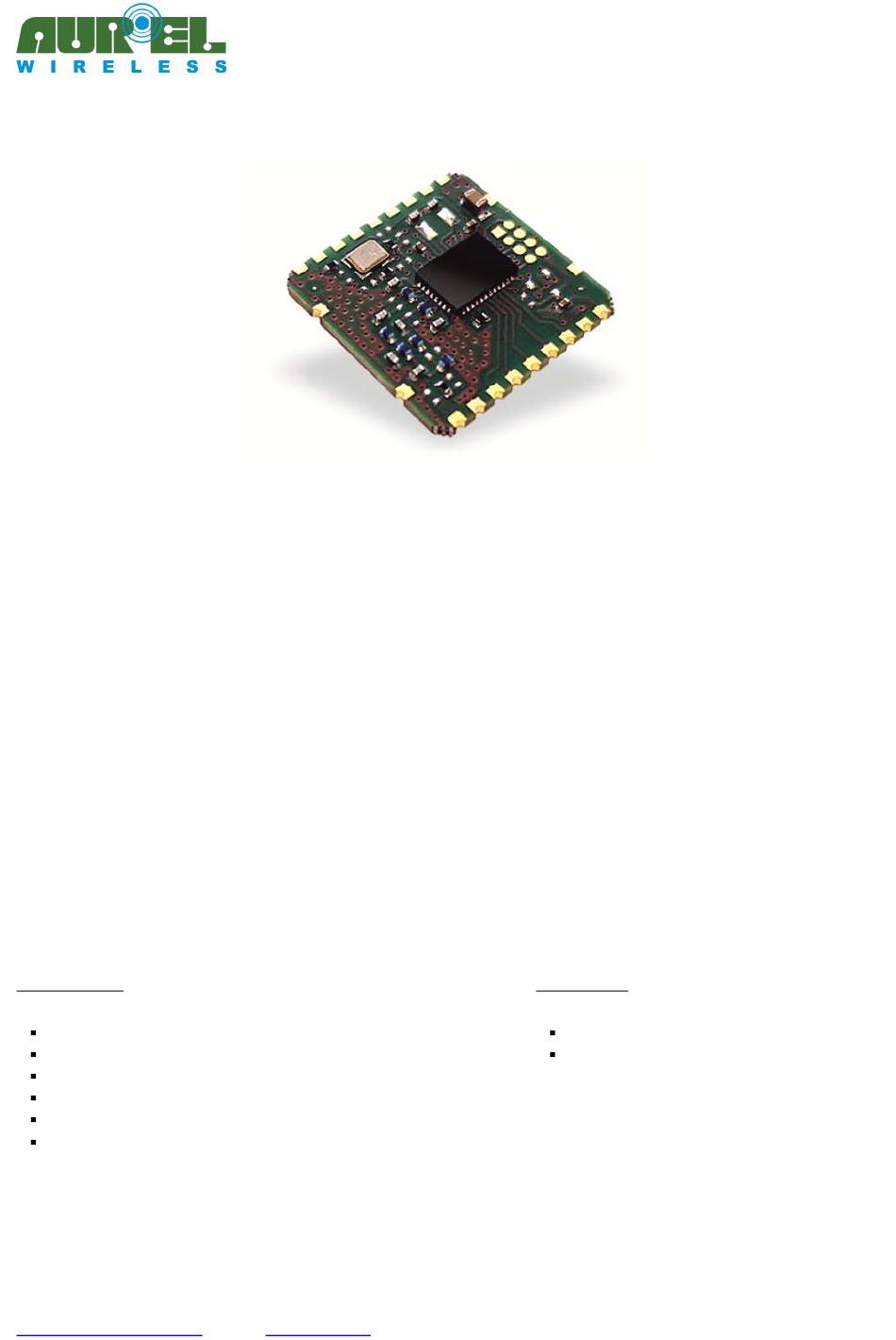

RTX-868-NB is a SMD multichannel narrow band transceiver operating in 868.00 - 868.60 MHz band
allowing long distances with very low power consumption.
The device is suitable for battery powered sensors requiring very low power consumption, in particular for
smoke and fire detection applications.
A typical scenario is an alarm sensor network in which each node is able to detect an alarm.
When a device detects the alarm, it activates a node local warning and it sends a broadcast RF message to
notify the alert to all the other devices of the network.
RTX-868-NB has also the possibility to locally deactivate the alarm and notify the deactivation to all the
devices of the network.
It is furthermore possible to test the link radio between two devices, an useful feature during the network
installation.
For security reasons each radio communication is encrypted with AES 128 algorithm.
Main Features
Reduced dimensions ( 20 x 20 x 2.5 mm )
40mW max RF output power
Sensitivity -115dBm
Blocking category 1
10uA average current consumption
Encrypted data transmission
The technical features can change without forecasting. AUR°EL S.p.A doesn't assume any responsibility of damage due to the improper use of the device.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
- email:
rfcomm@aurel.it
Applications
Smoke detector
Fire detector
RTX-868-NB
User manual
Preliminary 19/03/2019
Pag 1 di 8
Advertisement
Table of Contents
Related Manuals for AUREL RTX-868-NB
Summary of Contents for AUREL RTX-868-NB
- Page 1 When a device detects the alarm, it activates a node local warning and it sends a broadcast RF message to notify the alert to all the other devices of the network. RTX-868-NB has also the possibility to locally deactivate the alarm and notify the deactivation to all the devices of the network.
- Page 2 Low level voltage in input Pin output current RF TX Frequency 868.1 868.5 Offset frequency at +25°C RF channels RF power ERP with Aurel antenna “ANT 868 SMA” Modulation GFSK Deviation GFSK modulation ±15 Channel bandwidth -3dB Data-rate 4800 Temperature Frequency stability -20+70°C RF spurious emissions <...
- Page 3 RTX-868-NB --------------------------------------------------------------------------------------------------------------------------------------------------------------------- User manual Pin description PIN-OUT 1) ANTENNA 12) GND 2) GND 13) RF CH Sel0 3) ALARM 14) NET Sel0 4) UART RX 15) RESET 5) UART TX 16) NET Sel1 6) TEST/DISABLE 17) OUT 7) RF CH Sel2...
- Page 4 A typical scenario is a network of radio sensors for residential use, each integrating the RTX-868-NB, a sensor (e.g. smoke or fire sensor) connected to the ALARM input (pin 3) and an alert notification apparatus (e.g.
- Page 5 RTX-868-NB --------------------------------------------------------------------------------------------------------------------------------------------------------------------- User manual RF CHANNEL and NETWORK ID selection RF CH Sel0, RF CH Sel1 and RF CH Sel2 pins allow the user to select the RF channel in which the device works. 5 RF channels are available as shown in Table 2: Channel num.
- Page 6 Power Supply: 1. RTX-868-NB must be supplied from very low voltage safety source protected against the short circuits. maximum voltage variations allowed: 2.1 ÷ 3.6 V. However it is preferable to maintain a stable voltage to a predetermined value in the range of voltage as specified above, using a "fast transient response"...
- Page 7 50 ohm microstrip line. Reference Rules RTX-868-NB transceiver is compliant with the european set of rules EN 300 220-2, and EN 301 489-3. The transceiver must be supplied by a very low voltage safety source protected against short circuits. The usage of the module is foreseen inside enclosures that guarantee the EN 61000-4-2 normative not directly applicable to the module itself.
- Page 8 RTX-868-NB --------------------------------------------------------------------------------------------------------------------------------------------------------------------- User manual Firmware version summary Release Firmware Changes from the previous version date version 07/03/2019 First stable version User manual revision summary: Release Revision user Changes from the previous revision date manual 19/03/2019 Preliminary The technical features can change without forecasting. AUR°EL S.p.A doesn’t assume any responsibility of damage due to the improper use of the device.
