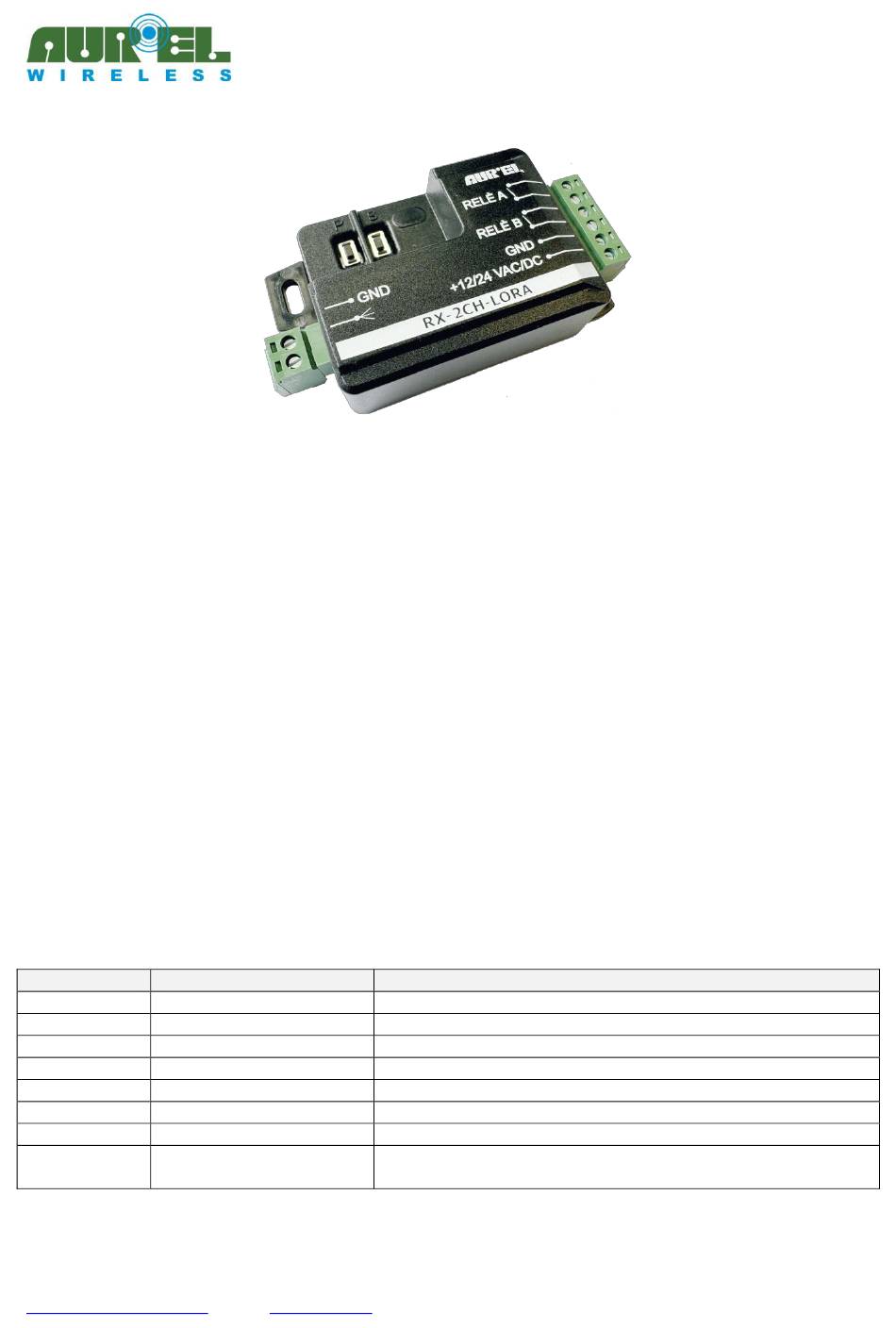

650201637G
RX-2CH-LORA is a long-range radio transceiver with variable code decoding for controlling 2 relay
outputs
and load management in bistable, monostable, and timer modes.
Paired with the TX-2CH-LORA, it allows point-to-point control with the ability to monitor the relay
status and radio link quality.
An interesting feature is the state change mode, which can activate the output relays based on the
status of the inputs of the TX-2CH-LORA, suitable for applications where a load needs to be
controlled via radio for undefined periods, ensuring RF band occupation within the limits imposed
by EN 300 220-2.
It can store up to 100 remote controls and manage the deletion of a single remote control or the
full memory.

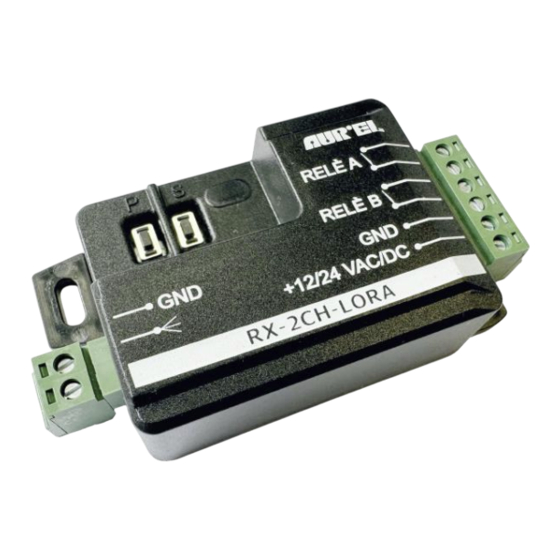

It is housed in a plastic enclosure with wall-mounting capabilities. Two buttons are accessible for
programming, and three red LEDs display operating/programming states and power status.
It operates within a range of 8-24Vac, 10-33Vdc, and is compatible for integration as an
aftermarket product within major gate opener systems.
Connections are detachable with terminal blocks, step 3.81mm, and nominal cable section up to
1.5mm².
Connections
Contact No.
Name
1
Positive power supply
2
Negative power supply
3
Relay B - N.O. contact
4
Relay B contact
5
Relay A – N.O. contact
6
Relay A contact
7
Antenna ground
8
Antenna
Le caratteristiche tecniche possono subire variazioni senza preavviso. AUR°EL S.p.A. non si assume la responsabilità di danni causati dall'uso improprio del dispositivo.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +39.0546.941124 Fax: +39.0546.941660
http://www.aurelwireless.com
(7)
(8)
Description
Connect to 8-24Vac +10-33Vdc power source
Connect to the negative pole of the power supply or GND
Normally open contact 5A 24Vdc, 0.25A 240Vac
5A contact 24Vdc, 0.25A 240Vac
Normally open contact 5A 24Vdc, 0.25A 240Vac
5A contact 24Vdc, 0.25A 240Vac
Connect to coaxial cable shield (50Ω) or GND
Connect to single pole antenna (50Ω) or coaxial cable center
(50Ω)
- email:
rfcomm@aurel.it
RX-2CH-LORA
(6)
(1)
Rev 1.0 30/10/2024
User Manual
Pag 1 di 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX-2CH-LORA and is the answer not in the manual?

Questions and answers

Related Manuals for AUREL RX-2CH-LORA

Summary of Contents for AUREL RX-2CH-LORA

  • Page 1 --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201637G User Manual RX-2CH-LORA is a long-range radio transceiver with variable code decoding for controlling 2 relay outputs and load management in bistable, monostable, and timer modes. Paired with the TX-2CH-LORA, it allows point-to-point control with the ability to monitor the relay status and radio link quality.

  • Page 2: Buttons And Leds

    RX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201637G User Manual Buttons and LEDs Button S Led B Led A Button P Led ON In the upper-left corner of the enclosure, a cavity holds two buttons labelled Button S and Button P, accessible with a fingertip or an insulated tool.

  • Page 3: Normal Operation

    To change the relay mode: 1. Hold button P for more than 2 seconds; LED-A will start flashing, indicating Relay-A’s mode. To select Relay-B, briefly press button P again. RX-2CH-LORA defaults to pulse mode, with both relays flashing once on first power-up.

  • Page 4: Deleting A Remote Control

    RX-2CH-LORA, the only option is to clear the entire memory. Deleting All Remote Controls Press both buttons P and S simultaneously on the RX-2CH-LORA. After 10 seconds, LEDs A and B will flash rapidly for 5 seconds. Once the memory is deleted, both LEDs will turn off, and no remote controls will be associated.

  • Page 5: Technical Specifications

    RX-2CH-LORA --------------------------------------------------------------------------------------------------------------------------------------------------------------------- 650201637G User Manual Technical Specifications Min. Max. Unit DC Supply Voltage AC Supply Voltage Idle current consumption (+Vs 12V) RF transmission current (+Vs 12V) RF transmission current with relays on Max relay contact current 5A - 24Vdc, 0,25A-240Vac RF Frequency 869.525...

  • Page 6: Weee Marking

    650201637G User Manual Manufacturer's Declaration of Conformity EU Hereby, Aurel S.p.A. declares that the radio equipment type RX-2CH-LORA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aurelwireless.com/declaration-of-conformity/...
