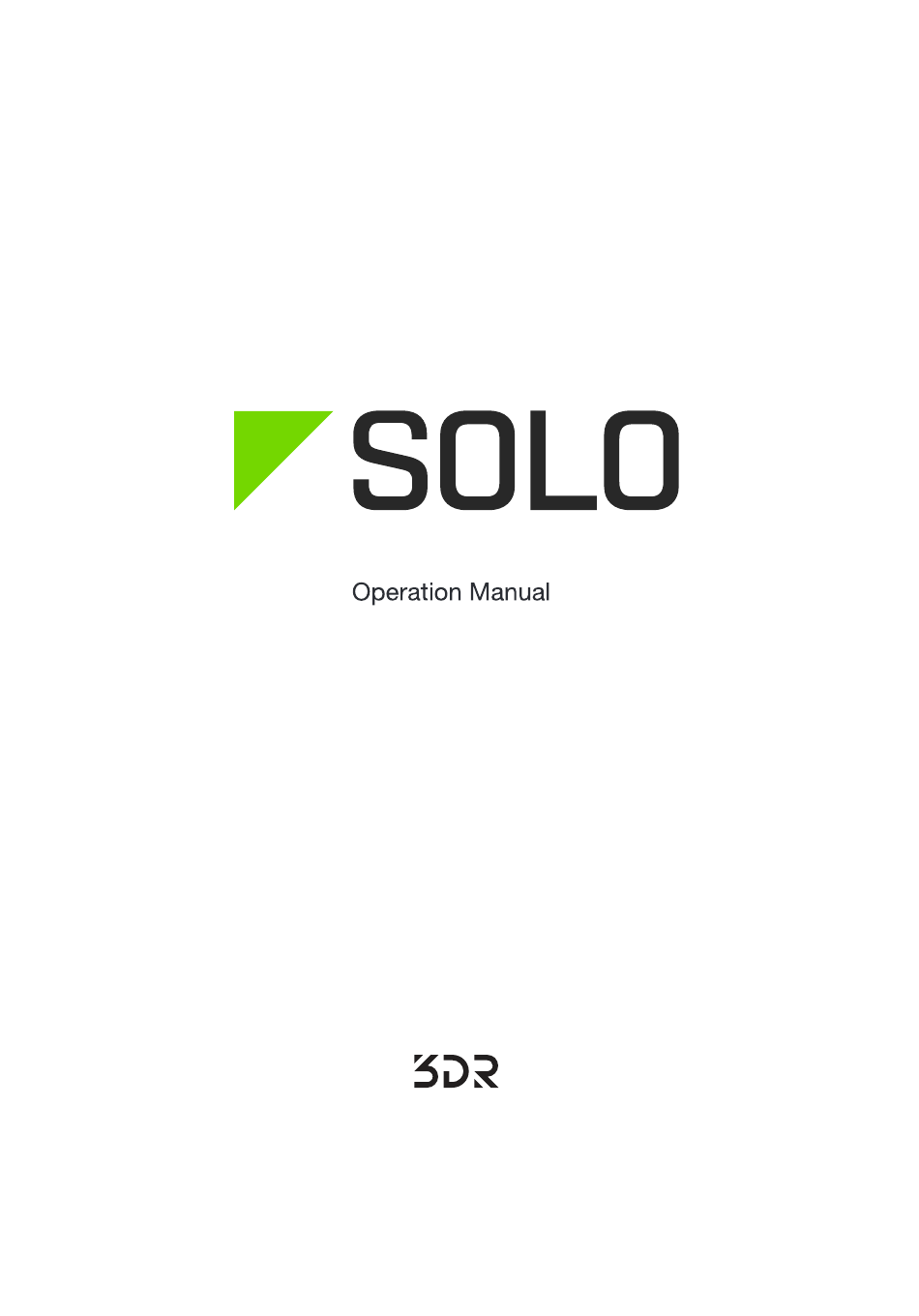

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com...
- Page 3 All manuals and user guides at all-guides.com System Description Setup Safety Operating Procedures Maintenance Appendix...
- Page 4 All manuals and user guides at all-guides.com...
- Page 5 All manuals and user guides at all-guides.com Solo Quadcopter Controller Video output Telemetry output Control input Ground 3DR Link Secure WiFi Network 3DR Solo Figure 1.1.1: Solo System Context Diagram...
-
Page 6: Smart Battery
Silver-top propeller Power button Battery Rear orientation LEDs Black-top propeller Motor Arm numbering Front orientation LEDs Height: 10.2” Motor-to-motor: 18.1” Fixed camera mount Weight (no camera): 3.3 lbs. HDMI cable Figure 1.2.1: Solo Exterior Overview Solo Mainboard 3DR Pixhawk 2... - Page 7 All manuals and user guides at all-guides.com Compass Module GPS Module Electronic Speed Controllers 3DR Solo Link Antennas Mainboard Compass Antenna Figure 1.2.2: Solo Interior Overview...
- Page 8 All manuals and user guides at all-guides.com Antennae Mobile-device holder Gimbal controls Joysticks Screen Pause Return home Power Options Figure 1.3.1: Controller Schematic Diagram...
- Page 9 All manuals and user guides at all-guides.com Figure 1.4.1: Solo Operating Parameters & Speci cations Table...
- Page 10 All manuals and user guides at all-guides.com Figure 1.5.1: Solo Onboard Sensors Table Location Sensor Manufacturer / Part Number* Data Type Figure 1.6.1: Motor Schematic Diagram...
-
Page 11: Main Board
All manuals and user guides at all-guides.com Figure 1.6.2: Solo Motor Order Battery Mainboard Solo Electrical System Serial signal C signal PWM signal Battery voltage Regulated voltage Figure 1.7.1: Solo Electrical System... - Page 12 All manuals and user guides at all-guides.com Controller Controls Smart Shots Telemetry Output...
- Page 13 All manuals and user guides at all-guides.com Three silver-top props Solo & three black-top props Controller Controller charger Solo charger Figure 2.1.1: Solo Parts Charging...
- Page 14 All manuals and user guides at all-guides.com...
- Page 15 All manuals and user guides at all-guides.com...
- Page 16 All manuals and user guides at all-guides.com...
- Page 17 All manuals and user guides at all-guides.com Attaching Figure 2.5.1: Attach Camera Settings Figure 2.5.2: Camera Con guration Process...
- Page 18 All manuals and user guides at all-guides.com...
- Page 19 All manuals and user guides at all-guides.com...
- Page 20 All manuals and user guides at all-guides.com...
- Page 21 All manuals and user guides at all-guides.com Maximum altitude Solo has reached preset maximum altitude Figure 3.5.1: Controller Maximum Altitude Warning Pause Regain Manual Control Return Home Land...
- Page 22 All manuals and user guides at all-guides.com Figure 3.7.1: Low controller battery warning and return-home noti cations Figure 3.7.2: Low ight battery warning and auto-land noti cations...
- Page 23 All manuals and user guides at all-guides.com 1 00% FLIGHT BATTERY Waiting for GPS FLY: MANUAL 555656 Fly: Manual Orbit Figure 3.10.1: Controller Waiting-for-GPS Prompt lost Switching to manual control Shot list and Return to Home are not available Figure 3.10.2: Controller GPS Lost Noti cation...
- Page 24 Figure 3.11.1: Controller Signal Lost Warnings With GPS Signal recovered Controller signal lost Solo will enter Fly:Manual Controller signal lost, GPS signal lost Emergency landing started Press to take control Figure 3.11.2: Controller Signal Lost Warnings Without GPS...
- Page 25 All manuals and user guides at all-guides.com...
- Page 26 All manuals and user guides at all-guides.com...
- Page 27 All manuals and user guides at all-guides.com Manual Land 1 00% FLIGHT BATTERY ALTITUDE Spot lock Rewind Figure 4.4.1: Controller In-Flight Data Display...
- Page 28 All manuals and user guides at all-guides.com...
- Page 29 All manuals and user guides at all-guides.com...
- Page 30 All manuals and user guides at all-guides.com Figure 4.5.5: Pitch Joystick Controls Figure 4.5.6: Roll Joystick Controls...
- Page 31 All manuals and user guides at all-guides.com Sel e Cable Cam...
- Page 32 All manuals and user guides at all-guides.com Figure 5.1.1: Leg Replacement Process 1 Figure 5.1.2: Leg Replacement Process 2...
- Page 33 All manuals and user guides at all-guides.com Figure 5.1.3: Leg Replacement Process 3 Replacing the Right-Rear Leg Figure 5.2.1: Motor Pod Replacement Process 1...
- Page 34 All manuals and user guides at all-guides.com Figure 5.2.2: Motor Pod Replacement Process 2 Figure 5.2.3: Motor Pod Replacement Process 3 Figure 5.2.4: Motor Pod Replacement Process 4...
- Page 35 All manuals and user guides at all-guides.com...
- Page 36 All manuals and user guides at all-guides.com...
- Page 37 All manuals and user guides at all-guides.com U.S. - FCC (Federal Communication Commission)
- Page 38 All manuals and user guides at all-guides.com Canada - Industry Canada Pixhawk Flight Management Unit: Pixhawk Stabilized Internal Measurement Unit:...
- Page 39 All manuals and user guides at all-guides.com 3DR GPS Module: 3DR Compass Module:...
- Page 40 All manuals and user guides at all-guides.com...
