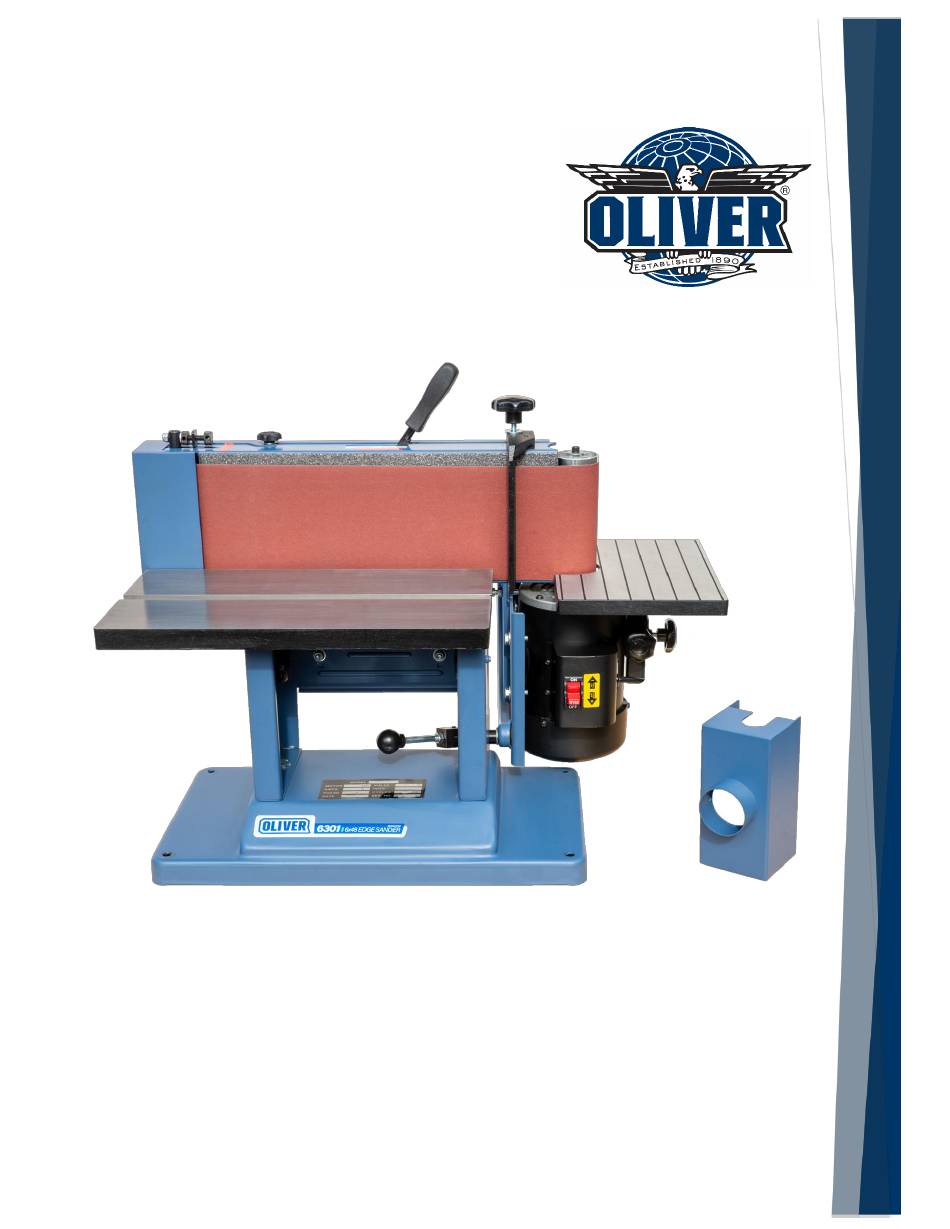

- Page 1 Sander Model 6301 Owner’s Manual For Models Manufactured Since 12/2023 Oliver Machinery 1-800-559-5065 921 Thomas Ave SW, Renton, WA 98057 Stock Number: 6301.001 info@olivermachinery.net Manual Version: 1.0.0 WWW.OLIVERMACHINERY.NET...
- Page 2 USAGE OF SAFETY AND PROTECTION DEVICES. OLIVER MACHINERY DISCLAIMS ANY LIABILITY FOR MACHINES THAT HAVE BEEN ALTERED OR ABUSED. OLIVER MACHINERY RESERVES THE RIGHT TO EFFECT AT ANY TIME, WITHOUT PRIOR NOTICE, THOSE ALTERATIONS TO PARTS, FITTINGS, AND ACCESSORY EQUIPMENT WHICH THEY MAY DEEM NECESSARY FOR ANY REASON WHATSOEVER.
-
Page 3: Table Of Contents
Table Height Adjustment ································ 20 Electricals ···············································11 Edge Sanding ············································ 21 Minimum Circuit Size Required for Model Horizontal Sanding ··································· 22 6301 Sander ············································· 11 Contour Sanding ······································· 23 Grounding ················································ 11 Accessories ············································ 24 Electrical Wiring ······································· 12 Maintenance ········································· 25 Setup ······················································13... -
Page 4: Introduction
Introduction Thank you for choosing Oliver! This manual contains important information on how to safely set up, operate, and maintain this machine. Please take the time to read through this manual, and make sure you completely understand the instructions. While this manual may provide tips on optimizing the result of your workpiece, the manual is not intended as a substitute for formal woodworking training. -
Page 5: Specifications
Specifications Quick View Model 6301 Sander Stock Number 6301.001 Power Requirement 115V, 1Ph, 60Hz Motor TEFC 3/4 HP, 115V, 1Ph Sanding Belt Size 6” x 48” Sanding Belt Tilt 0° - 90° Dimensions 29-3/8” (W) x 21”(D) x 23”(H) Footprint 20-5/8”(W) x 11-1/2”(D) -
Page 6: Miter Gauge
Number of Dust Ports Dust Port Size 2-5/16 O.D. (Fits 2-1/2” Hose) Minimum CFM Required 300 CFM Sound Rating @ 2’ distance 98 dB Others Serial Number Location On machine stand. Country of Origin Taiwan 6 | Page Oliver Machinery 6301 Sander... -
Page 7: Identification
Identification 6301 Sander OLIVERMACHINERY.NET 7 | Page... -
Page 8: Safety
Safety Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery. Safety, however, is ultimately depending on the individual machine operator. Before operating this machine, please become familiar with the following safety labels and guidelines. - Page 9 13. PROPER USE: Do not use this machine for anything other than its intended use. If used for other purposes, Oliver Machinery disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use.
-
Page 10: Safety Guidelines Specific To Sander
Correct Wrong After Operation STOP THE MACHINE when the operator leaves the machine for any reason. WAIT until the motor comes to a complete stop. CLEAN UP before departure. 10 | Page Oliver Machinery 6301 Sander... -
Page 11: Electricals
Please ensure the electrical circuit for this machine meets the minimum circuit size requirement. The minimum circuit size requirement applies to a dedicated circuit that provides power to one 6301 Sander. If more machines are sharing the same circuit, consult a licensed electrician to ensure the designated circuit is properly sized for safe operation. -
Page 12: Electrical Wiring
*NR: Not Recommended Use properly sized wires that meet or exceed the power requirement of your machine. Using undersized wires may cause overheating and increase the risk of fire WARNING and machine damage. 12 | Page Oliver Machinery 6301 Sander... -
Page 13: Setup
Air resistance and leakage in a dust collection system impact its effectiveness. Use a dust collection system that is rated above 300 CFM at the dust port. Doing so CAUTION improves air quality in the workplace, and prevents the machine from jamming. 6301 Sander OLIVERMACHINERY.NET 13 | Page... -
Page 14: Receiving
On the day of delivery, please be sure help is available to move the machine to its final location. 6301 Sander has a gross weight of 82 lbs. and a net weight of 73 lbs. Safe moving techniques and proper lifting equipment are required, or serious WARNING personal injury may occur. -
Page 15: Inventory
Additional Items Needed for Machine Assembly Item Purpose Safety glasses Protection Disposable gloves Protection Paper Towel Cleaning WD-40 Cleaning Rust Inhibitor Cast iron table top rust protection. 6301 Sander OLIVERMACHINERY.NET 15 | Page... -
Page 16: Cleaning
Once all rust protectant is removed, routinely coat the tabletops with rust preventive such as Boeshield® T-9 or paste wax. Do not use rust preventives that contain silicone, which is known to interfere with certain finishes and glues. 16 | Page Oliver Machinery 6301 Sander... -
Page 17: Assembly
3. When not using the contour sanding table, 3. Secure the bracket with the lock knob and remove the table and keep the dust hood washer. installed to prevent accidental contact with the drum. 6301 Sander OLIVERMACHINERY.NET 17 | Page... -
Page 18: Dust Collection
8. Turn off the sander to complete the test run. Congratulations! You have completed the test run. If you discover any issues from the tests, refer to the troubleshooting section and maintenance section to diagnose issues and make adjustments. 18 | Page Oliver Machinery 6301 Sander... -
Page 19: Operation
Always wear high-quality dust masks and safety glasses/goggles when operating the sander. Clear the Work Area Before turning on the sander, make sure the sander table is free of debris, and the workpiece is not engaging the sanding belt. 6301 Sander OLIVERMACHINERY.NET 19 | Page... -
Page 20: Adjustments
Position the table at least 1/16” above the bottom edge of the sanding belt. Doing so prevents materials or body parts from getting caught between the table and WARNING the belt, which can cause serious injury. 20 | Page Oliver Machinery 6301 Sander... -
Page 21: Edge Sanding
Make sure to re-check the miter angle against the sanding belt before use. 5. Before starting the sander, clear the table and turn on the dust collection system. 6. Turn on the sander. 6301 Sander OLIVERMACHINERY.NET 21 | Page... -
Page 22: Horizontal Sanding
7. If it is necessary to perform free-hand sanding with the sanding belt in the horizontal position, hold the workpiece firmly and sand the workpiece gently on the sanding belt. 22 | Page Oliver Machinery 6301 Sander... -
Page 23: Contour Sanding
Keep the dust hood installed at most times and use a dust IMPORTANT collection system to extract the dust. The dust hood also reduces the risk of accidental body contact with the sanding surface and other moving parts. 6301 Sander OLIVERMACHINERY.NET 23 | Page... -
Page 24: Accessories
Accessories Touchup Paint Keeping all painted surfaces in good condition not only makes your machine look nice but also keeps rust away. Oliver Machinery has pre-mixed spray paint available in Oliver-Blue for purchase. Accessories are available on our website: OLIVERMACHINERY.NET To order by phone, please call us at 1-800-559-5065. -
Page 25: Maintenance
5. Repeat steps 1-4 as needed. 3. Rotate the belt tracking adjustment screw towards the back of the machine to raise the belt on the drum, and vice versa. 6301 Sander OLIVERMACHINERY.NET 25 | Page... -
Page 26: Changing Sanding Belt
6. The sanding belt runs counterclockwise. When using sanding belts that are designed to run in a single direction, make sure the arrows on the back of the sanding belt align with the direction indicator. 26 | Page Oliver Machinery 6301 Sander... -
Page 27: Troubleshooting
Move the tension lever to the “Tight” position. tension. Replace the tension spring as needed. Worn/broken sanding Replace the sanding belt. belt. Improper Check, adjust, and tighten motor/component motor/component mounting. mounting. Motor bearing issue. Contact customer service for further assistance. 6301 Sander OLIVERMACHINERY.NET 27 | Page... - Page 28 Do not fold or smash the sanding belt as it may disintegrate the bonding material on the belt. 28 | Page Oliver Machinery 6301 Sander...
-
Page 29: Wiring Diagrams
Touching an electrified part WILL result in serious personal injury or death. DANGER All electrical work must be done by a licensed electrician and must meet the electrical code in your area. Otherwise, the warranty is void. WARNING 6301 Sander OLIVERMACHINERY.NET 29 | Page... -
Page 30: Parts List
Parts List 30 | Page Oliver Machinery 6301 Sander... - Page 31 MICRO-ADJUSTING NUT 20103044 BELT TENSION DRIVER S0020501 HEX. SCREW 21000027 SCREW KNOB S0210500C FLAT WASHER S0230506 SPRING WASHER S0110500 S0020410 HEX. SCREW S0210403a FLAT WASHER S0230400 SPRING WASHER S0120380 20101055 SPACER S0210623a FLATE WASHER 6301 Sander OLIVERMACHINERY.NET 31 | Page...
- Page 32 S0020520 HEX. SCREW S0253014 WASHER S0210402 FLAT WASHER S0210403 FLAT WASHER S0210401a FLAT WASHER S0020408 HEX. SCREW S0210404 FLAT WASHER W0000001 SWITCH J21000036 WARNING LABEL S0040410M COUNTERSUNK FLAT HEAD PHILLIPS SCREWS S0220400M WASHER 32 | Page Oliver Machinery 6301 Sander...
-
Page 33: Maintenance Record
Maintenance Record Date Task Operator 6301 Sander OLIVERMACHINERY.NET 33 | Page... -
Page 34: Notes
Notes 34 | Page Oliver Machinery 6301 Sander... -
Page 35: Warranty And Service
Oliver Machinery makes every effort to assure that its equipment meets the highest possible standards of quality and durability. All products sold by Oliver Machinery are warranted to the original customer to be free from defects for a period of two (2) years on all parts excluding electronics and motors which are warranted for one (1) year from the date of shipment. - Page 36 Oliver Machinery is always adding new Industrial Woodworking products to the line. For complete, up-to-date product information, visit us online at: WWW.OLIVERMACHINERY.NET or call toll-free 1-800-559-5065 ** SAVE THIS MANUAL FOR FUTURE REFERENCE. **...
