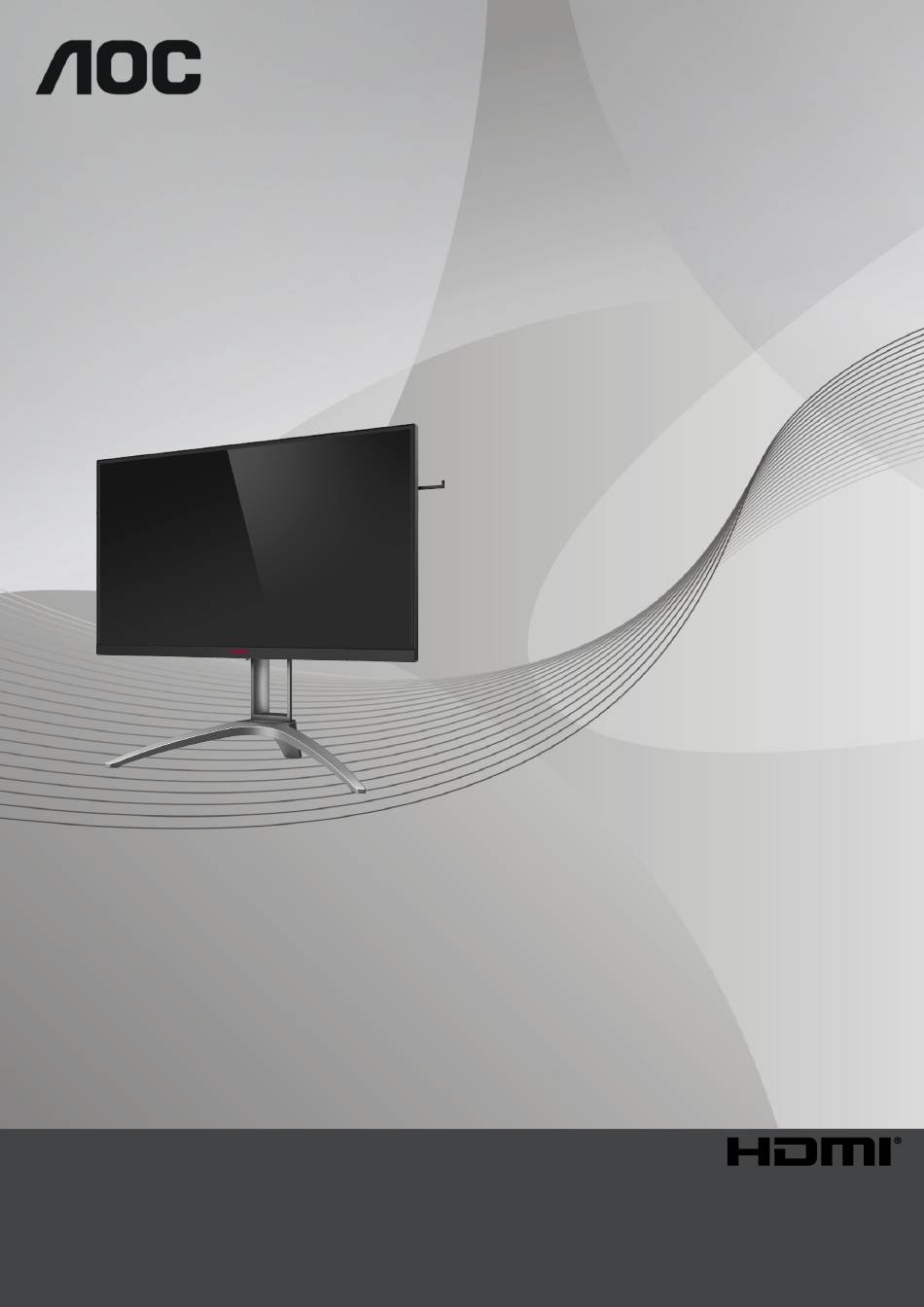

- Page 1 LCD Monitor User Manual AG273QZ LED backlight www.aoc.com ©2019 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 Adaptive-Sync function ............................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Power Cable DP Cable HDMI Cable USB Cable Micphone Cable Not all signal cables (DP, HDMI, USB and Micphone cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 110mm 90°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Microphone in 2. Earphone (Combined with Microphone) 3. USB3.2 Gen1 downstream + fast charging(BC1.2) 4. USB3.2 Gen1 downstream 5. USB3.2 Gen1 upstream 6. AC in 7. HDMI 8. DP 9. -
Page 12: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com • RadeonTM RX Vega series • RadeonTM RX 500 series • RadeonTM RX 400 series •... -
Page 13: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 14: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 15: Quick Switch
Quick Switch ◄: When there is no OSD, press the ◄ button to open game mode function, then press ◄ or ► key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types. ►: When there is no OSD, press “Right”... -
Page 16: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 17 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 18: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Image Setup Color Setup Audio Light FX Audio Light FX Extras OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). Follow Key Guide to move or select (adjust) OSD settings 3). -
Page 19: Game Setting
Game Setting Game Setting Game Mode Shadow Control Game Color Adaptive-Sync Overdrive Low Input Lag QuickSwitch LED Frame Counter Exit Enter Select For playing FPS (first Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality. -
Page 20: Luminance
Note: 1) The function MBR and Overdrive Boost are avdilable only when Adaptive-Sync is off and the vertical frequency is up to 75Hz. 2) The screen brightness will be reduced when adjusting MBR or Over driver setting to Boost. 3) When HDR is set to “non-off” under “Image Settings” and the input source has HDR content, “Game Mode”, “Shadow Control”, “Game Color”, “MBR”... -
Page 21: Image Setup
Image Setup Image Setup Auto HDR Mode Exit Enter Select Off / DisplayHDR / HDR Picture Disable or Enable HDR / HDR Movie / HDR Game Off / HDR Picture HDR Mode / HDR Movie / Disable or Enable HDR Mode HDR Game Note: When HDR is detected, the HDR option is displayed for adjustment;... -
Page 22: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 23: Audio
Audio Audio Volume DTS Sound TruVolume HD 200Hz 500Hz 2.5KHz 7KHz 10KHz Exit Enter Select Volume 0-100 Adjust volume setting Game / Rock / Select DTS Sound mode. DTS Sound Classical / Live / Note: It may take up to 2 seconds to switch modes. Theater / Off TruVolume HD On / Off... -
Page 24: Light Fx
Light FX Light FX Light FX Light FX Mode Breathing Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio/Static/Simple Shift/ Gradient Shift/Simple... -
Page 25: Extra
Extra Extra Input Select Auto Off Timer Image Ratio Wide DDC/CI Reset Resolution:1920(H)x1080(V) SDR H.Frequency:34 KHz V.Frequency:60 Hz Exit Enter Select AUTO/HDMI1/HDMI2/DP1/ Input Select Select Input Signal Source Off timer 0-24hrs Select DC off time Wide / 4:3 / 1:1 / 17"(4:3) / 19"(4:3) / 19"(5:4) / Image Ratio 19"W(16:10) / 21.5"W(16:9) -
Page 26: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout please be noted that only DP1.2/DP1.4 support Adaptive-sync DP Capability 1.1/1.2/1.4 function H. -
Page 27: Led Indicator
LED Indicator Status LED Color Full Power Mode Active-off Mode Orange... -
Page 28: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Picture Is Fuzzy & Has Press to auto adjust. -
Page 29: Specification
Specification General Specification Model name AG273QZ Driving system TFT Color LCD Viewable Image Size 68.5 cm diagonal Panel Pixel pitch 0.2331mm(H) x 0.2331mm(V) Separate Sync. H/V TTL Display Color 16.7M Colors 30~230kHz (HDMI) Horizontal scan range 30~360kHz (DP) Horizontal scan Size(Maximum) 596.736... -
Page 30: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz... -
Page 31: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 32: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
