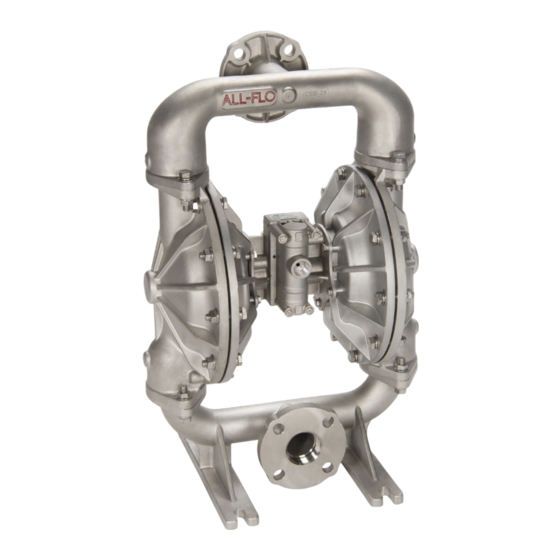

Dover PSG ALL-FLO A200 Installation, Operation & Maintenance Manual
Metal 2 inch air-operated double-diaphragm pump
Hide thumbs
Also See for PSG ALL-FLO A200:
- Installation operation & maintenance (20 pages) ,
- Installation, operation & maintenance instruction manual (23 pages)
Related Manuals for Dover PSG ALL-FLO A200
Summary of Contents for Dover PSG ALL-FLO A200

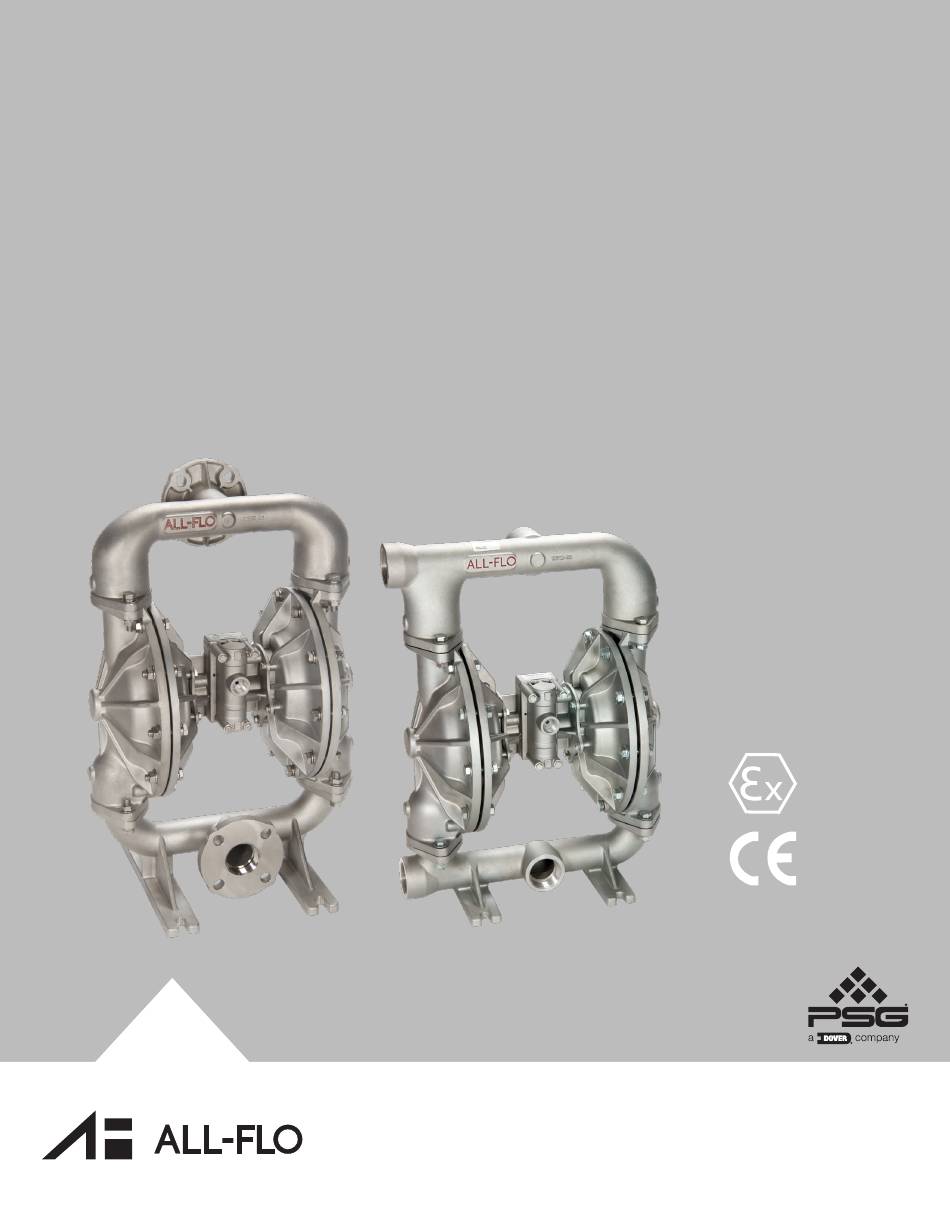

- Page 1 INSTALLATION OPERATION & MAINTENANCE A200 METAL 2 INCH AIR-OPERATED DOUBLE-DIAPHRAGM PUMP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 MODEL DESIGNATION MATRIX & REPAIR KITS SECTION 3 PRINCIPLES OF OPERATION SECTION 4 DIMENSIONAL DRAWINGS SECTION 5 PERFORMANCE CURVES RUBBER DIAPHRAGMS ..........9 TPE DIAPHRAGMS ............9 PTFE DIAPHRAGMS ..........9 SECTION 6 INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION............ -
Page 3: Cautions - Read First
SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR TO WARNING = Hazards or unsafe practices which INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH THESE could result in severe personal injury, INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND OR death or substantial property damage PROPERTY DAMAGE. -
Page 4: Model Designation Matrix & Repair Kits
SECTION MODEL DESIGNATION MATRIX & REPAIR KITS - ALUMINUM FLUID CONNECTION TYPE VALVE SEAT SPECIAL OPTION (HARDWARE, MUFFLER, LUG) N = NPT P = Polypropylene 3 = Standard (Zinc Plated Hardware, Plastic Muffler) B = BSPT Y = Nylon 4 = Zinc Plated Steel Hardware, Metal Muffler A = Aluminum 7 = Stainless Steel Hardware, Plastic Muffler AIR SECTION... - Page 5 MODEL DESIGNATION MATRIX & REPAIR KITS - STAINLESS STEEL FLUID CONNECTION TYPE VALVE SEAT SPECIAL OPTION (HARDWARE, MUFFLER, LUG) F = ANSI/DIN FLANGE 3 = Stainless Steel 7 = Standard (Stainless Steel Hardware, Plastic Muffler) C = Combination ANSI / DIN FLANGE & NPT P = Polypropylene 8 = Stainless Steel Hardware, Metal Muffler E = Combination ANSI / DIN FLANGE &...
-
Page 6: Principles Of Operation
SECTION PRINCIPLES OF OPERATION HOW AN AIR OPERATED DOUBLE DIAPHRAGM PUMP WORKS The air-valve directs pressurized air behind the diaphragm on the right, causing the diaphragm on the right to move outward (to the right). Since both the right diaphragm and the left diaphragm are connected via a diaphragm rod, when the right diaphragm moves to the right, the left diaphragm (through the action of the diaphragm rod) moves to the right also. -
Page 7: Pump Dimensions
SECTION PUMP DIMENSIONS ALUMINUM 2.4” (61mm) 3/4”-14 FNPT (Air Inlet) 26.3” 24.8” (668mm) (630mm) 14.0” (356mm) 1.9” (48mm) 10.0” (254mm) 13.5” (343mm) 19.6” (498mm) 0.7” (18mm) 4.0” (102mm) 9.0” 10.0” (229mm) (254mm) 5.4” (137mm) 1.8” (46mm) 10.0” (254mm) 1-1/4”-11.5 FNPT (Exhaust Port) 12.3”... -
Page 8: Stainless Steel
PUMP DIMENSIONS STAINLESS STEEL 4.6” (117mm) 3/4”-14 FNPT (Air Inlet) 29.5” (749mm) 26.5” (673mm) 16.1” (409mm) 3.5” (89mm) 19.2” (488mm) 0.7” (18mm) 13.5” (343mm) 4.0” (102mm) 14.9” (378mm) 12.8” (325mm) 5.4” 1.8” (137mm) (46mm) 10.0” (254mm) 1-1/4”-11.5 FNPT (Exhaust Port) 12.3”... -
Page 9: Performance Curves
SECTION PERFORMANCE CURVES Performance Specifications PERFORMANCE CURVE (2” RUBBER)* Max. Flow: 190 gpm (719 lpm) Max. Air Pressure: 120 psi (8.3 bar) Max. Solids: 1/4” (6.4 mm) Max. Suction Lift Dry: 24.4 ft-H O (7.4 m-H Max. Suction Lift Wet: 31.7 ft-H O (9.7 m-H Weight:... -
Page 10: Installation, Troubleshooting And Maintenance
SECTION INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION Ensure that the air supply is sufficient for the PIPING volume of air required by the pump. Refer to product specifications for further details. For reliable Whenever possible ensure the pump is installed using operation, install a 5 micron air filter, air-valve and the shortest possible pipe lengths with the minimum pressure regulator. -
Page 11: Suggested Installation
SUGGESTED INSTALLATION This illustration is a generic representation of an air operated double-diaphragm pump. ALF-12070-E-02 All-Flo... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM EFFECT/SOLUTION Pump Will Not Cycle Discharge line closed or plugged Discharge filter blocked Check valve stuck Air filter blocked Air supply valve closed Air supply hooked up to muffler side of pump Compressor not producing air or turned off Muffler iced or blinded Diaphragm ruptured Air line in plant air supply lines ruptured... -
Page 13: Operation
OPERATION MAINTENANCE The Air-Operated Double Diaphragm Pump requires Due to the unique nature of each application, periodic a minimum of 20 psig of air to operate, with some inspection of the pump is the best method to determine variation according to diaphragm material. Increasing a proper maintenance schedule. -
Page 14: Repair And Assembly
SECTION REPAIR AND ASSEMBLY PUMP WET END REMOVAL WARNING TOOLS NEEDED Prior to servicing the pump, ensure that the air and fluid lines are closed and disconnected. While wearing personal 1) Two Wrenches, 3/4 Inch protective equipment, flush, drain and process liquid from the pump 2) Two Wrenches, 1 Inch in a safe manner. - Page 15 STEP 7 STEP 8 STEP 9 In order to remove both “Outer Remove both “Outer Chambers” Using two 1 Inch wrenches, Chambers” use two ¾ Inch from the “Intermediate.” remove “Outer Diaphragm Plate”, wrenches. Remove ten “Hex- “Diaphragm”, “Inner Diaphragm Head Cap Screws (1/2”-13x2- Plate”...
-
Page 16: Air Valve Removal
REPAIR AND ASSEMBLY AIR VALVE REMOVAL WARNING TOOLS NEEDED Prior to servicing the pump, ensure that the air and fluid lines are closed and disconnected. While wearing personal 1) One Wrench, 7/16 Inch protective equipment, flush, drain and process liquid from the pump 2) One Pick, General Purpose in a safe manner. -
Page 17: Air Valve Assembly
STEP 7 STEP 8 STEP 9 Remove the “Air Valve Spool” from Using the pick, remove the “Lip Using the pick, remove the the main “Air-Valve Assembly”. Seal (Air Valve)” from the main second “Lip Seal (Air Valve)” from “Air-Valve Assembly”. the main “Air-Valve Assembly”. -
Page 18: Pilot Valve Removal
REPAIR AND ASSEMBLY PILOT VALVE REMOVAL WARNING TOOLS NEEDED Prior to servicing the pump, ensure that the air and fluid lines are closed and disconnected. While wearing personal 1) One Screwdriver, Phillips #2 protective equipment, flush, drain and process liquid from the pump 2) Two Wrenches, 3/4 Inch in a safe manner. -
Page 19: Pilot Valve Assembly
PILOT VALVE ASSEMBLY To assemble the pilot valve, reverse the order of disassembly. Should process fluid have contact with the pilot valve O-rings, they should be replaced as swelling may occur and cause irregular operation. During assembly, ensure that the open side of the lip-seals are facing outward. Lubrication of the pilot sleeve assembly, with a non-synthetic lubricant, is recommended in order to facilitate re-assembly into the intermediate. -
Page 20: Exploded View And Parts List
SECTION EXPLODED VIEW & PARTS LIST ALUMINUM FULL STROKE, A200-*AA-****-*** ALF-12070-E-02 All-Flo... -
Page 21: Parts List
PARTS LIST - ALUMINUM FULL STROKE, A200-*AA-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD A200-NAA-****-*** 10512-20-NPT Aluminum A200-BAA-****-*** 10512-20-BSPT Aluminum BALL A200-***-*V**-*** 11009-13 † A200-***-*E**-*** 11009-15 † EPDM A200-***-*G**-*** 11009-19 † Bunalast ™ A200-***-*N**-*** 11009-21 † Buna-N A200-***-*S**-*** 11009-23 †... - Page 22 PARTS LIST - ALUMINUM FULL STROKE, A200-*AA-****-*** ITEM DESCRIPTION PUMP MODEL PART NO. MATERIAL 311&312 MUFFLER w/ BUSHING A200-*A*-****-*0* 13013-00 Polypropylene Optional 13010-00 Metal INNER CHAMBER GASKET All Models 12123-19 Nitrile PIPE PLUG A200-NAA-****-*** 12260-20-NPT Aluminum A200-BAA-****-*** 12260-20-BSPT Aluminum SCREW, SELF-LOCKING PHILLIPS (#6-32 X 3/8” ) All Models 12571-26 Stainless Steel...
- Page 23 ALUMINUM SHORT STROKE , A200-*AA-T***-***, A200-*AA-H***-*** ALF-12070-E-02 All-Flo...
-
Page 24: Aluminum Ptfe Short Stroke
PARTS LIST - ALUMINUM SHORT STROKE ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD A200-NAA-****-*** 10512-20-NPT Aluminum A200-BAA-****-*** 10512-20-BSPT Aluminum BALL A200-***-*V**-*** 11009-13 † A200-***-*E**-*** 11009-15 † EPDM A200-***-*G**-*** 11009-19 † Bunalast ™ A200-***-*N**-*** 11009-21 † Buna-N A200-***-*S**-*** 11009-23 †... - Page 25 PARTS LIST - ALUMINUM PTFE SHORT STROKE, A200-*AA-T***-*** ITEM DESCRIPTION PUMP MODEL PART NO. MATERIAL AIR VALVE END PLUG A200-*A*-****-*** 11706-20 Aluminum ‡ 311&312 MUFFLER w/ BUSHING Standard 13013-00 Polypropylene Optional 13010-00 Metal INNER CHAMBER GASKET All Models 12123-19 Nitrile PIPE PLUG A200-NAA-****-*** 12260-20-NPT...
-
Page 26: Stainless Steel Full Stroke
STAINLESS STEEL FULL STROKE, A200-**3-****-*** ALF-12070-E-02 All-Flo... - Page 27 PARTS LIST - STAINLESS STEEL FULL STROKE, A200-**3-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD (ANSI/DIN FLANGE) A200-F*3-****-*** 10515-26-BLANK Stainless Steel (COMBINATION ANSI/DIN FLANGE & NPT ) A200-C*3-****-*** 10515-26-NPT Stainless Steel (COMBINATION ANSI/DIN FLANGE & BSP ) A200-E*3-****-*** 10515-26-BSPT Stainless Steel...
- Page 28 PARTS LIST - STAINLESS STEEL FULL STROKE, A200-**3-****-*** ITEM DESCRIPTION PUMP MODEL PART NO. MATERIAL AIR VALVE SPOOL All Models 10483-31 Acetal ‡ LIP SEAL (AIR VALVE) All Models 12003-76 Nitrile ‡ O-RING (AIR VALVE END PLUG) All Models 11913-11 Nitrile ‡...
-
Page 29: Stainless Steel Ptfe Full Stroke
STAINLESS STEEL SHORT STROKE, A200-**3-T***-***, A200-**3-H***-*** ALF-12070-E-02 All-Flo... - Page 30 PARTS LIST - STAINLESS STEEL SHORT STROKE ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD (ANSI/DIN FLANGE) A200-F*3-****-*** 10515-26-BLANK Stainless Steel (COMBINATION ANSI/DIN FLANGE & NPT ) A200-C*3-****-*** 10515-26-NPT Stainless Steel (COMBINATION ANSI/DIN FLANGE & BSP ) A200-E*3-****-*** 10515-26-BSPT Stainless Steel BALL...
- Page 31 PARTS LIST - STAINLESS STEEL SHORT STROKE ITEM DESCRIPTION PUMP MODEL PART NO. MATERIAL O-RING (AIR VALVE END PLUG) All Models 11913-11 Nitrile ‡ AIR VALVE END PLUG A200-*A*-****-*** 11706-20 Aluminum ‡ A200-*33-****-*** 11706-26 Stainless Steel ‡ 311 &312 MUFFLER w/ BUSHING Standard 13013-00 Polypropylene...
-
Page 32: Elastomers
SECTION ELASTOMERS WETTED ELASTOMERS BUNA-N (NITRILE) BUNALAST ™ is a general purpose elastomer used with water and is an injection molded thermoplastic material with many oils. Temperature range 10°F to 180°F (-12°C characteristics similar to Santoprene . Has excellent ® to 82°C). -
Page 33: Warranty And Registration
SECTION WARRANTY AND REGISTRATION WARRANTY. All All-Flo products shall be covered by the standard All-Flo Limited Warranty in effect at the time of shipment. This warranty (which may be modified by All-Flo at any time) provides: MATERIALS SOLD ARE WARRANTED TO THE ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE (RENTAL USE EXCLUDED) FOR FIVE YEARS AFTER PURCHASE DATE. - Page 34 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
