Summary of Contents for Dover PSG ALL_FLO A025

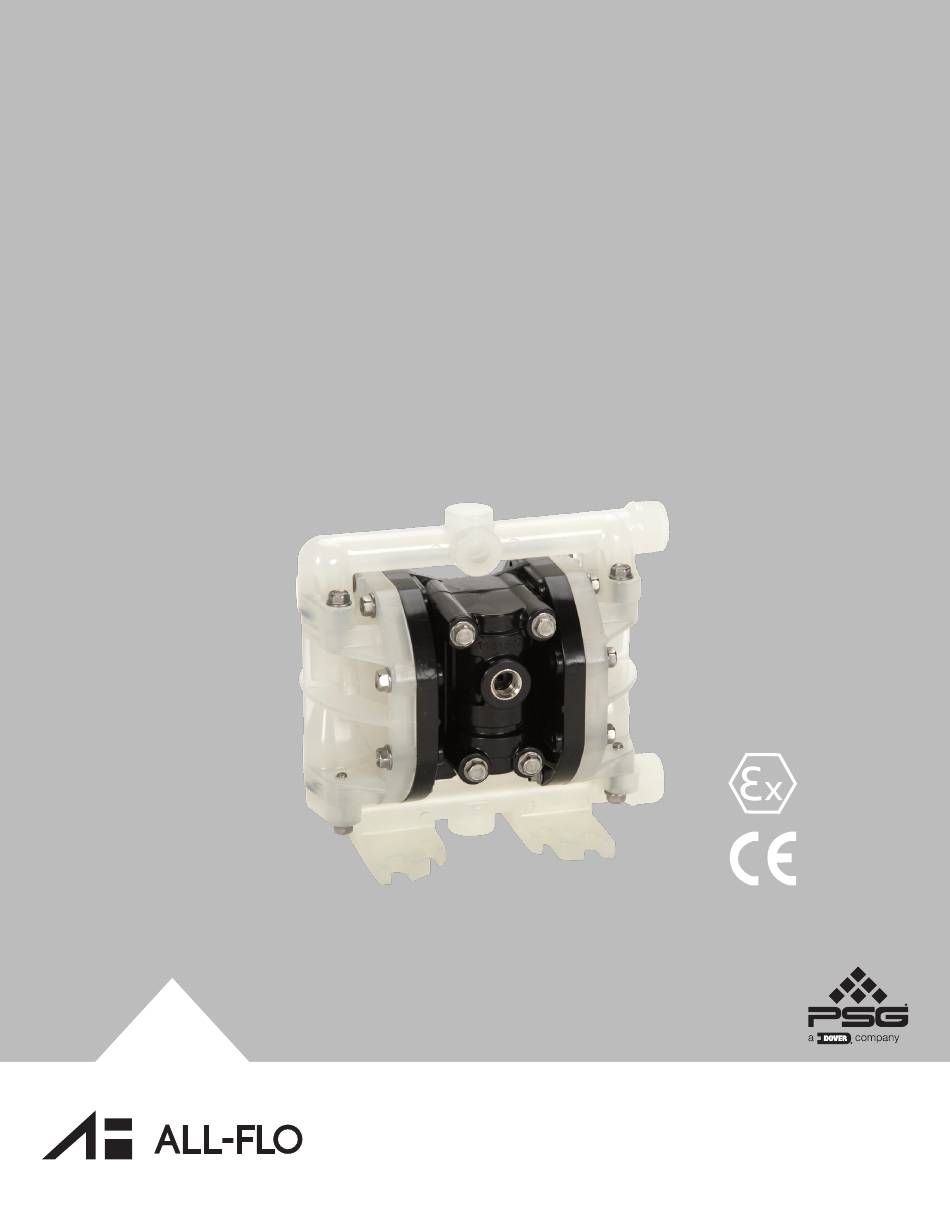

- Page 1 INSTALLATION OPERATION & MAINTENANCE A025 PLASTIC 1/4 INCH AIR-OPERATED DOUBLE-DIAPHRAGM PUMP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 MODEL DESIGNATION MATRIX & REPAIR KITS SECTION 3 PRINCIPLES OF OPERATION SECTION 4 DIMENSIONAL DRAWINGS SECTION 5 PERFORMANCE CURVES TPE/PTFE DIAPHRAGMS SECTION 6 INSTALLATION TROUBLESHOOTING OPERATION MAINTENANCE TORQUE SPECIFICATIONS SUBMERSION/MUFFLER KIT INSTALLATION SECTION 7 EXPLODED VIEWS AND PARTS LISTS... -
Page 3: Warnings, Dangers And Cautions
SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR TO WARNING = Hazards or unsafe practices which INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH THESE could result in severe personal injury, INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND OR death or substantial property damage PROPERTY DAMAGE. -
Page 4: Model Designation Matrix & Repair Kits
SECTION MODEL DESIGNATION MATRIX - BOLTED PLASTIC PORTING FLUID CONNECTION TYPE VALVE SEAT S = Default (Suction Right/ Discharge Right) S = NPS (NPT/BSP) K = PVDF P = Polypropylene AIR SECTION P = Polypropylene Intermediate-Pneumatic Shift O-RINGS SPECIAL OPTION (HARDWARE, LIQUID SECTION E = EPDM MUFFLER, LUG) -
Page 5: Principles Of Operation
SECTION PRINCIPLES OF OPERATION HOW AN AIR OPERATED DOUBLE DIAPHRAGM PUMP WORKS The air-valve directs pressurized air behind the diaphragm on the right, causing the diaphragm on the right to move outward (to the right). Since both the right diaphragm and the left diaphragm are connected via a diaphragm rod, when the right diaphragm moves to the right, the left diaphragm (through the action of the diaphragm rod) moves to the right also. -
Page 6: Dimensional Drawings
SECTION 1/4” PUMP DIMENSIONS BOLTED PLASTIC o . 7 1 1 11 [1 7 3] [156] [104] 0.8 [20] 1 100 1 - --- � - 4.6 [118] - - - �--- 4 . 8 [123] ---� 0.39 [9 . 8] 0.25 [6.4] [62] ---t... -
Page 7: Performance Curves
SECTION PERFORMANCE CURVES Performance Specifications PERFORMANCE CURVE Max. Flow: 5.7 gpm (21.6 lpm) Max. Air Pressure: 120 psi (8.3 bar) Max. Solids: ” (1.6 mm) Max. Suction Lift Dry: 14 ft-H O (4.2 m-H Max. Suction Lift Dry w/PTFE: 10 ft-H O (3.0 m-H Max. -
Page 8: Installation
SECTION INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION Ensure that the air supply is sufficient for the PIPING volume of air required by the pump. Refer to product specifications for further details. For reliable Whenever possible ensure the pump is installed using operation, install a 5 micron air filter, air-valve and the shortest possible pipe lengths with the minimum pressure regulator. -
Page 9: Installation
SUGGESTED INSTALLATION This illustration is a generic representation of an air operated double-diaphragm pump. ALF-11010-E-01 All-Flo... -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM EFFECT/SOLUTION Pump Will Not Cycle Discharge line closed or plugged Discharge filter blocked Check valve stuck Air filter blocked Air supply valve closed Air supply hooked up to muffler side of pump Compressor not producing air or turned off Muffler iced or blinded Diaphragm ruptured Plant air supply line ruptured... -
Page 11: Operation
OPERATION MAINTENANCE The Air-Operated Double Diaphragm Pump requires Due to the unique nature of each application, periodic a minimum of 20 psig of air to operate, with some inspection of the pump is the best method to determine variation according to diaphragm material. Increasing a proper maintenance schedule. -
Page 12: Submersion/Muffler Kit Installation
REPAIR AND ASSEMBLY SUBMERSION-MUFFLER KIT INSTALLATION TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air Inch socket and fluid lines are closed and disconnected. While wearing personal Inch socket wrench protective equipment, flush and drain process liquid from the pump in a safe manner. -
Page 13: Exploded Views And Parts Lists
SECTION EXPLODED VIEW & PARTS LIST A025-SP*-****-*** BOLTED PLASTIC ALF-11010-E-01 All-Flo... - Page 14 PARTS LIST - BOLTED PLASTIC A025-SP*-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD A025-SPP-****-*** 11345-40 Polypropylene A025-SPK-****-*** 11345-56 PVDF BALL A025-SP*-*G**-*** 11001-19 Geolast ® A025-SP*-*S**-*** 11001-23 Santoprene ® A025-SP*-*T**-*** 11001-59 PTFE VALVE SEAT A025-SPP-**P*-*** 10924-ROD-40 Polypropylene A025-SPK-**K*-*** 10924-ROD-56 PVDF O-RING (Valve Seat)
- Page 15 PARTS LIST - BOLTED PLASTIC A025-SP*-****-*** DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL LIP SEAL (Air Valve) ALL MODELS 12002-76 Nitrile O-RING (Valve Plug) ALL MODELS 11904-11 Nitrile AIR VALVE END PLUG ALL MODELS 11707-40 Polypropylene MUFFLER ALL MODELS 13003-00 Polypropylene MUFFLER PLATE OPTIONAL*...
-
Page 16: Solenoid Control

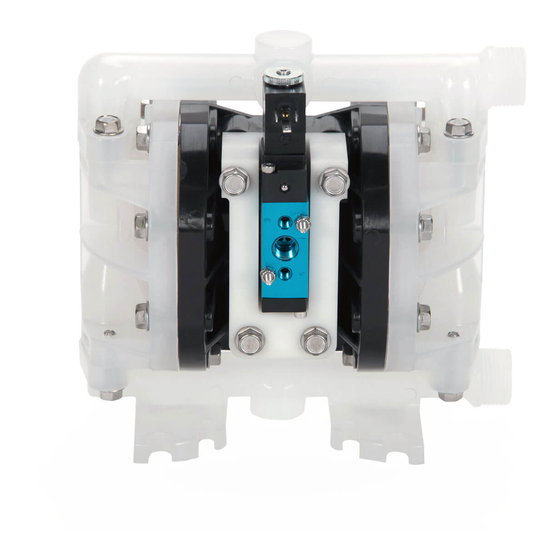

SECTION SOLENOID CONTROL FOR AIR OPERATED DOUBLE DIAPHRAGM PUMPS The A025 can be configured with solenoid pulse control to enable metering and dispensing application. The solenoid is avaialble in 4 voltages, 110 VAC, 220 VAC, 12 VDC and 24 VDC. All solenoid equipped pumps have a standard DIN 43650B male connector. The A025 has an optional DIN 43650C male connector that can replace the standard DIN 43650B male connector. -
Page 17: Cycle Counter
CYCLE COUNTER FOR AIR OPERATED DOUBLE DIAPHRAGM PUMPS OPERATIONAL DESCRIPTION: The cycle counter model operates via a magnetically actuated proximity-switch installed into the main air-valve. The switch closes when the spool is in the down position, thus allowing open loop metering applications. -
Page 18: Elastomers
SECTION ELASTOMERS & REPAIR KITS WETTED ELASTOMERS BUNA-N (NITRILE) GEOLAST® is a general purpose elastomer used with water and is an injection molded thermoplastic material with many oils. Temperature range 10°F to 180°F (-12°C characteristics similar to Nitrile. Has excellent to 82°C). -
Page 19: Warranty And Registration
SECTION WARRANTY AND REGISTRATION WARRANTY. All All-Flo products shall be covered by the standard All-Flo Limited Warranty in effect at the time of shipment. This warranty (which may be modified by All-Flo at any time) provides: MATERIALS SOLD ARE WARRANTED TO THE ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE (RENTAL USE EXCLUDED) FOR FIVE YEARS AFTER PURCHASE DATE. - Page 20 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
