Living Spaces Chapleau 305-P381270 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
hardware which may have come loose inside the carton during shipment. Identify and count all hardware
and compare with the hardware list below.
When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as
an area rug or furniture pads. Area rugs and padding not included with purchase.
PARTS LIST
No. Description
1 Chair Seat
2
Chair Back
3
Front Leg
STEP 1
Made In Vietnam
Y:\AI\P018 (HMI TO PULASKI-May 2016)\untitled2.JPG
L I V I N G S P A C E S
ASSEMBLY INSTRUCTIONS
ITEM 305-P381270

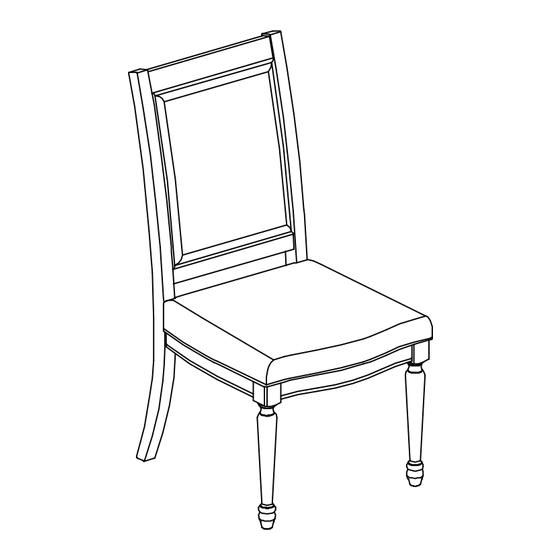

CHAPLEAU UPH SIDE CHAIR (2/CTN)
Sketch Quantity
1
1
2
E
D
A
F
HARDWARE LIST
No. Description
A Allen Bolt
B
Allen Bolt
C Allen Bolt
D
Lock washer
E Flat washer
F
Allen key
Residential Use Only
Sketch Size
Ø1/4" x 2-3/16"
Ø1/4" x 1-9/16"
Ø1/4" x 3"
Ø1/4"
Ø1/4" x 3/4"
M4x30x110mm
F
C
STEP 3
D
STEP 2
Quantity
4
2
4
10
10
1
Page 1 of 2
