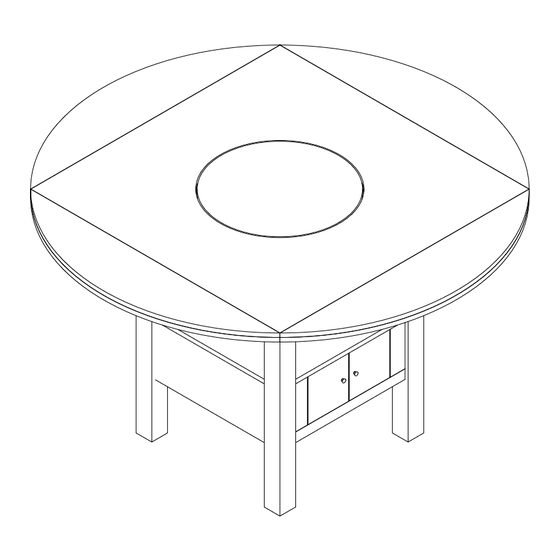

- Page 1 ASSEMBLY INSTRUCTIONS L I V I N G S P C ES ADONIS 60" ROUND DROP LEAF CNTR. TABLE D2106-221-C ITEM NO : SKU:323842 D2106-222-C SKU:323843 ITEM NO : 15 min...
-
Page 2: Cleaning Instructions
IMAGE DESCRIPTION QTY PART SKU# 323842-A-G(Grey Brown) Table Top 323842-B-G(Grey Brown) 323843-C-G(Grey Brown) 323842-D-G(Grey Brown) Wooden panel Hardware List of Dining Table PART SKU# IMAGE DESCRIPTION 323842-1 (12) Bolts M4*Ø5/16*50mm 323842-2 (1) Allen key M4 Note: Screwdriver will be prepared by yourshelf. THE HARDWARE IS LOCATED IN THE PACKING ITEM NOTE: MUST TIGHTEN SCREWS PERIODIACLLY. -
Page 3: Detail View
DETAIL VIEW STEP 1: Open the drop leaf. - Page 4 STEP 2: Assemble table legs with the table box. * Assemble the table leg (B) to table box (C) four sides (B) by bolt (1). 1= 8 pcs STEP 3: Assemble the table legs with the table top. * Assemble the table Leg (B) with the table top (A) by bolt (1). 1= 4 pcs...
- Page 5 STEP 4: Assemble wooden panel (D) with the swivel. djust leveler =4pcs That's it ! You've finished assembling your item. Thank you!
