Living Spaces CHAPLEAU 305-P381400 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
hardware which may have come loose inside the carton during shipment. Identify and count all hardware
and compare with the hardware list below.
When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as
an area rug or furniture pads. Area rugs and padding not included with purchase.
PARTS LIST
No. Description
1 Bench Top
2
Stretcher
3
Center Leg
4
Leg (Left & Right)
5
Base Leg
6
Center Base Leg
5
Made In Vietnam
Y:\AI\P018 (HMI TO PULASKI-May 2016)\untitled2.JPG
L I V I N G S P A C E S
ASSEMBLY INSTRUCTIONS
ITEM 305-P381400

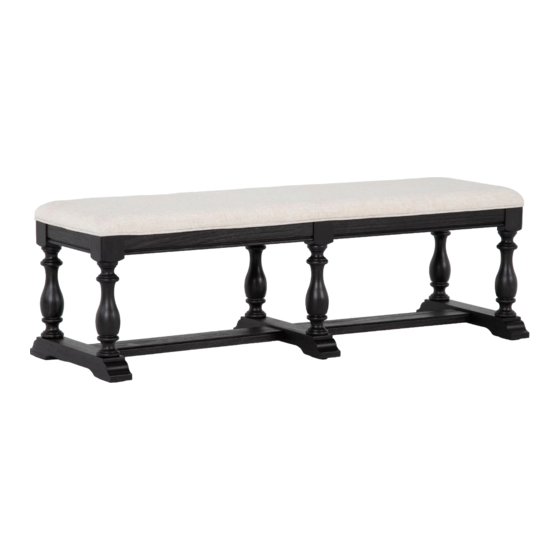

CHAPLEAU DINING BENCH
Sketch Q.ty
1
2
2
4
2
1
STEP 1
4
HARDWARE LIST
No. Description
A
Hanger Bolt
B
Collar Hex Nut
C Flat washer
D
Wrench
E
Allen Bolt
F
Lock washer
G
Flat washer
H Allen Key
K Allen Bolt
6
3
Residential Use Only
Sketch Size
Ø5/16" x 3-1/2"
Ø5/16"
Ø5/16" x 28 x 14
12 mm
Ø5/16 '' x 2-3/4''
Ø5/16 ''
Ø5/16 '' x 3/4 ''
M4
Ø5/16 '' x 2-1/4''
4
Q.ty
4
4
4
1
6
18
18
1
12
Page 1 of 3
