THANK YOU FOR PURCHASING THIS QUALITY PRODUCT.
READ THESE INSTRUCTIONS CAREFULLY.
SEE PARTS LIST AND HARDWARE LIST FOR GUIDANCE,
BE SURE ALL PARTS ARE PRESENT PRIOR TO ASSEMBLY.
CAUTIONS:
1. DO NOT FULLY TIGHTEN BOLTS UNTIL ALL BOLTS ARE
IN PLACE AND READY FOR ASSEMBLY.
2. DO NOT OVER TIGHTEN BOLTS TO AVOID CAUSING
DAMAGE TO THE THREADS.
3. KEEP ALL PARTS AND HARDWARE OUT TO REACH OF
CHILDREN.
4. REQUIRE 2 PEOPLE TO ASSEMBLY.
TOOLS NEEDED : SCREWDRIVER (NOT PROVIDED)
Carton
Item
1
8322 F - HB
2
8322 F - FB
3
8322 F - SR
ASSEMBLY INSTRUCTIONS

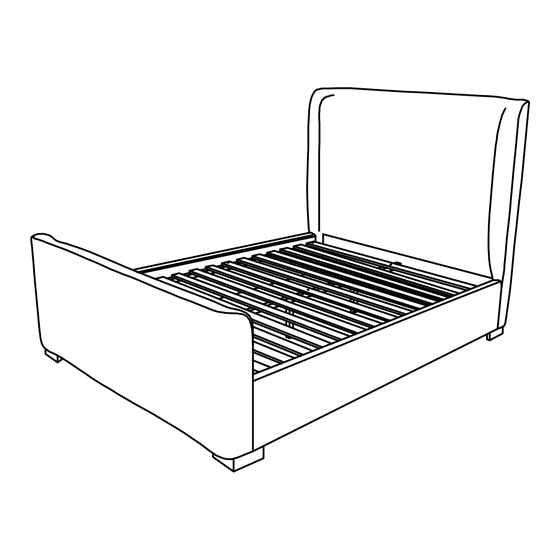

FULL BED (8322F)
is packed in 3 cartons
Designation
Headboard
A
Footboard
B
Slats
C
Side Rail
D
Center Support
E
Center Support Leg
F
Bed Leg
G
Part
X 1PC
X 1PC
X 1SET
1.JCBC BOLT M6 x 60mm
2.JCBB BOLT M8 x 35mm
X 2PCS
3.FLAT WASHER M8 x 18mm
4.SPRING WASHER M8 x 13mm
X 1PC
5.CSK SCREW M4 x 20mm
6.CSK SCREW M4 x 38mm
X 3PCS
7.ALLEN KEY M4
8.ALLEN KEY M5
X 4PCS
PAGE 1 OF 3
Hardware
x 11pcs
x 8pcs
x 8pcs
x 8pcs
x 2pcs
x 9pcs
x 1pc
x 1pc
