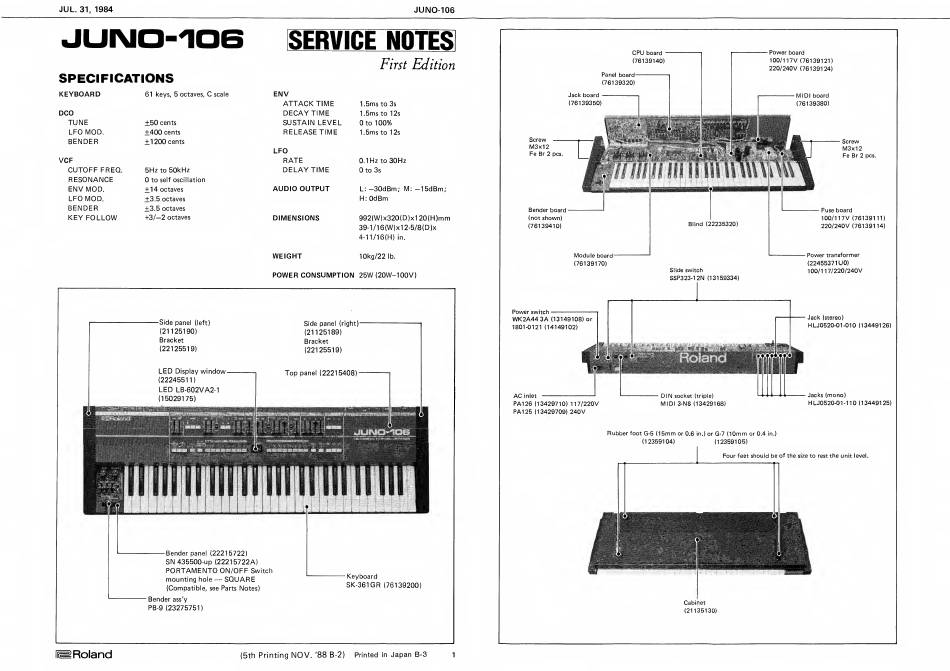

Roland JUNO-106 Service Notes

JUL.
31,
1984
JUIMO-106
juiMo-^as
SPECIFICATIONS
KEYBOARD
61 keys, 5 octaves,
C
scale
DCO
TUNE
+50
cents
LFO MOD.
±400
cents
BENDER
+1200
cents
CUTOFF FREQ. 5Hz
to
50kHz
RESONANCE
0 to
self
oscillation
ENV MOD. +14
octaves
LFO MOD.
+3.5
octaves
BENDER
±3.5 octaves
KEY FOLLOW +3/-2
octaves
First Edition
ENV
ATTACK
TIME
1.5ms to 3s
DECAY TIME
1.5ms
to 12s
SUSTAIN LEVEL
0 to
100%
RELEASE TIME
1.5ms
to 12s
LFO
RATE
0.1Hzto30Hz
DELAY
TIME
0 to 3s
AUDIO OUTPUT
L:
-30dBm; M: -15dBm;
H:
OdBm
DIMENSIONS 992(W)x320(D)x120(H)mm
39-1/16(W)x12-5/8(D)x
A i 1 /I
p /LJ
\ 1*-
'+"1
I
/
1
0
\riy
ill.
WEIGHT
10kg/22lb.
POWER CONSUMPTION
25W (20W-100V)
Side panel
(left)
(21125190)
Bracket
(22125519)
Side panel
(right)
(21125189)
Bracket
(22125519)
LED
Display
window
(22245511)
LED
LB-602VA2-1
(15029175)
Top panel (22215408)
Bender panel (22215722)
SN 435500-up (22215722A)
PORTAMENTO ON/OFF
Switch
mounting hole
SQUARE
(Compatible, see Parts Notes)
Bender
ass'y
PB-9 (23275751)
Keyboard
SK-361GR
(76139200)
f®
Roland
(5th Printing
NOV.
'88 B-2)
Printed in
Japan
B-3
1
(76139170)
Slide switch
SSP323-12N
(13159334)
(22455371 UO)
100/1
17/220/240V
Power
switch
WK2A44 3A
(13149108) or
1801-0121 (14149102)
Jack
(stereo)
HLJ0520-01-010 (13449126)
AC
inlet
PA126
(13429710) 117/220V
PA125
(13429709)
240V
DIN
socket
(triple)
MIDI 3-NS (13429168)
Jacks
(mono)
HLJ0520-01-110 (13449125)
Rubber
foot G-5
(15mm
or 0.6
in.)
or G-7
(10mm
or 0.4
in.)
(12359104) (12359105)
I
Four feet should be of the size to rest the unit
level.
Cabinet
(21135130)
