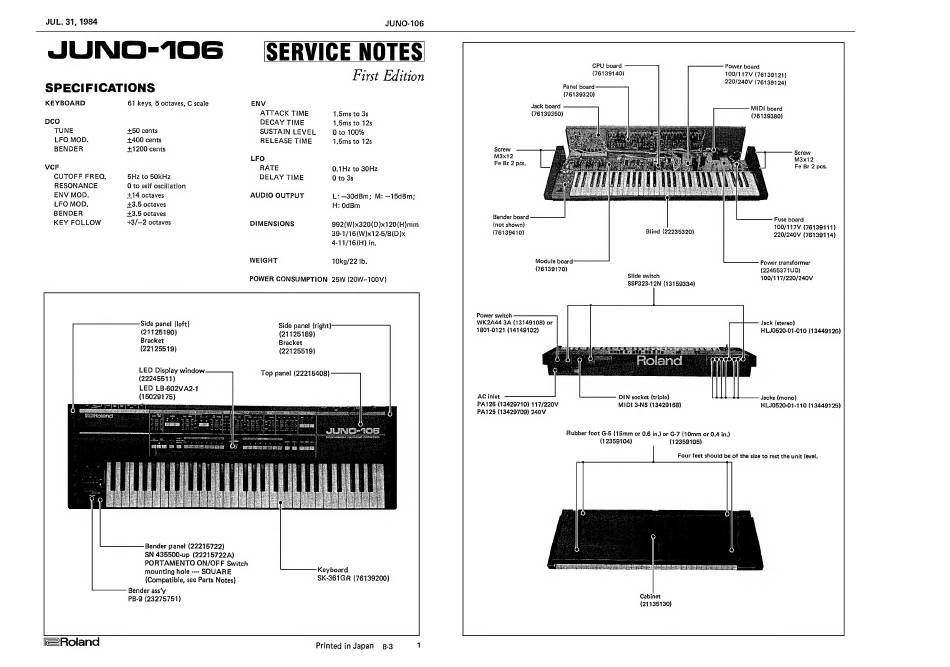

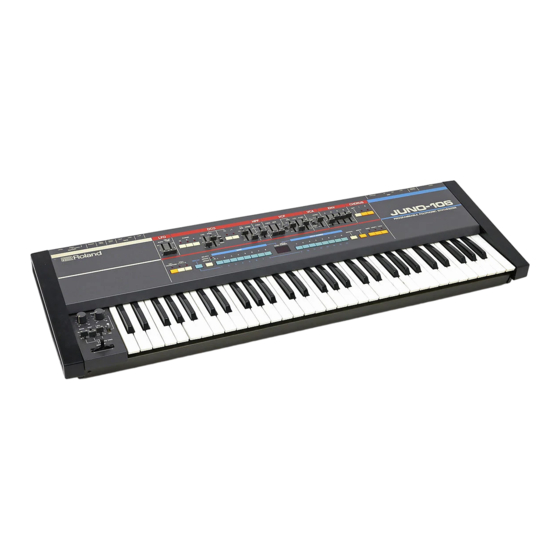

Roland JUNO-106 Service Notes

JUL. 31, 1984
JUNO-106
SPECIFICATIONS
KEYBOARD 61 keys, 5 octaves, C scale
Dco
TUNE +50 cents
LFO MOD. +400 cents
BENDER +1200 cents
VCF
CUTOFF FREQ. 5Hz to 50kHz
RESONANCE 0 to self oscillation
ENV MOD. +14 octaves
LFO MOD. +3.5 octaves
BENDER +3,5 octaves
KEY FOLLOW +3/—2 octaves
i=Roland
Side panel (left)
(21125190)
Bracket
(22125519)
LED Display window
(22245511)
LED LB-602VA2-1
(15029175)
Bender panel (22215722)
SN 435500-up (22215722A)
PORTAMENTO ON/OFF Switch
mounting hole ---- SQUARE
(Compatible, see Parts Notes)
Bender ass'y
PB-9 (23275751)
JUNO-106
SERVICE NOTES
ENV
ATTACK TIME
DECAY TIME
SUSTAIN LEVEL
RELEASE TIME
LFO
RATE
DELAY TIME
AUDIO OUTPUT
DIMENSIONS
WEIGHT
First Edition
1.5ms to 3s
1.5ms to 12s
0 to 100%
1.5ms to 12s
0.1Hz to 30Hz
0 to 3s
L: —30dBm; M: —15dBm;
H: OdBm
992(W)x320(D)x120(H)mm
39-1/16 (W)x12-5/8(D)x
4-11/16(H) in.
10kg/22 Ib.
POWER CONSUMPTION 25W (20W--100V)
Side panel (right)
(21125189)
Bracket
(22125519)
Top panel (22215408)
Keyboard
SK-361GR (76139200)
Printed in Japan B-3 1
CPU board
(76139140)
Power board
100/117V (76139121)
(76139320)
Jack board
(76139350)
MIDI board
(76139380)
Bender board
{not shown)
(76139410)
Fuse board
100/117V (76139111)
Module board
(76139170)
Power transformer
(22455371U0)
SSP323-12N (13159334)
Power switch
WK2A44 3A (13149108) or
1801-0121 (14149102)
Jack (stereo)
HLJO520-01-010 (13449126)
AC inlet
PA126 (13429710) 117/220V
PA125 (13429709) 240V
DIN socket (triple)
MIDI 3-NS (13429168)
Jacks (mono)
HLJ0520-01-110 (13449125)
Four feet should be of the size to rest the unit level.
Cabinet
(21135130)
