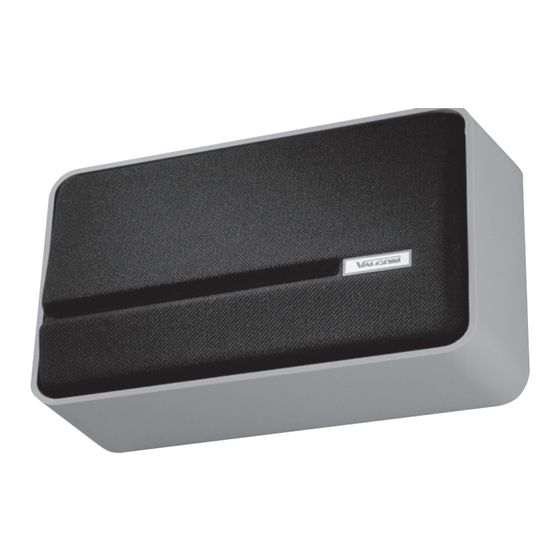

Valcom V-1042 Technical Specifications

SLIMLINE ONE-WAY SPEAKER
FEATURES:
UTILIZES STANDARD CAT 3, 5, OR 6 CABLE
REMOVABLE CLOTH COVERED GRILLE
BUILT IN HANGER
HIGH DENSITY POLYPROPYLENE ENCLOSURE
VOICE AND MUSIC REPRODUCTION QUALITY
DESCRIPTION:
Contemporary designed wall speaker for areas that require a stylish appearance. Used for background
music and voice paging, the thick walled, high density polypropylene enclosure minimizes vibrations. Utilizing the
built-in hanger, this speaker may be conveniently mounted on the wall. The speaker is available in white, gray,
brown and black with a color co-ordinated cloth grille.
SPEAKER ELEMENT
Cone Diameter: 5.0" (12.7 cm)
Voice Coil Impedance: 45 ohms
FREQUENCY RESPONSE
95 Hz to 16 kHz
INPUT
Impedance: > 600 Ohms nominal
Signal Level: -10 dBm line level
OUTPUT
Rating: > 93 dB @ 4' (1.22 m)
5614 Hollins Road Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-1042
SPECIFICATIONS:
ENVIRONMENT
Temperature: -4 to +131 °F (-20 to +55 °C)
Humidity: 0-95% Non-Condensing
HOUSING AND FINISH
High density polypropylene in white, gray, brown or
black with color co-ordinated cloth grille.
DIMENSIONS AND WEIGHT
7.0" (17.8cm) H x 10.3" (26.2 cm) W x 3.8" (9.6 cm) D
Weight: 2.8 lbs (1.27 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
SPECIFICATIONS
Fax: 540-362-9800
