Page 1

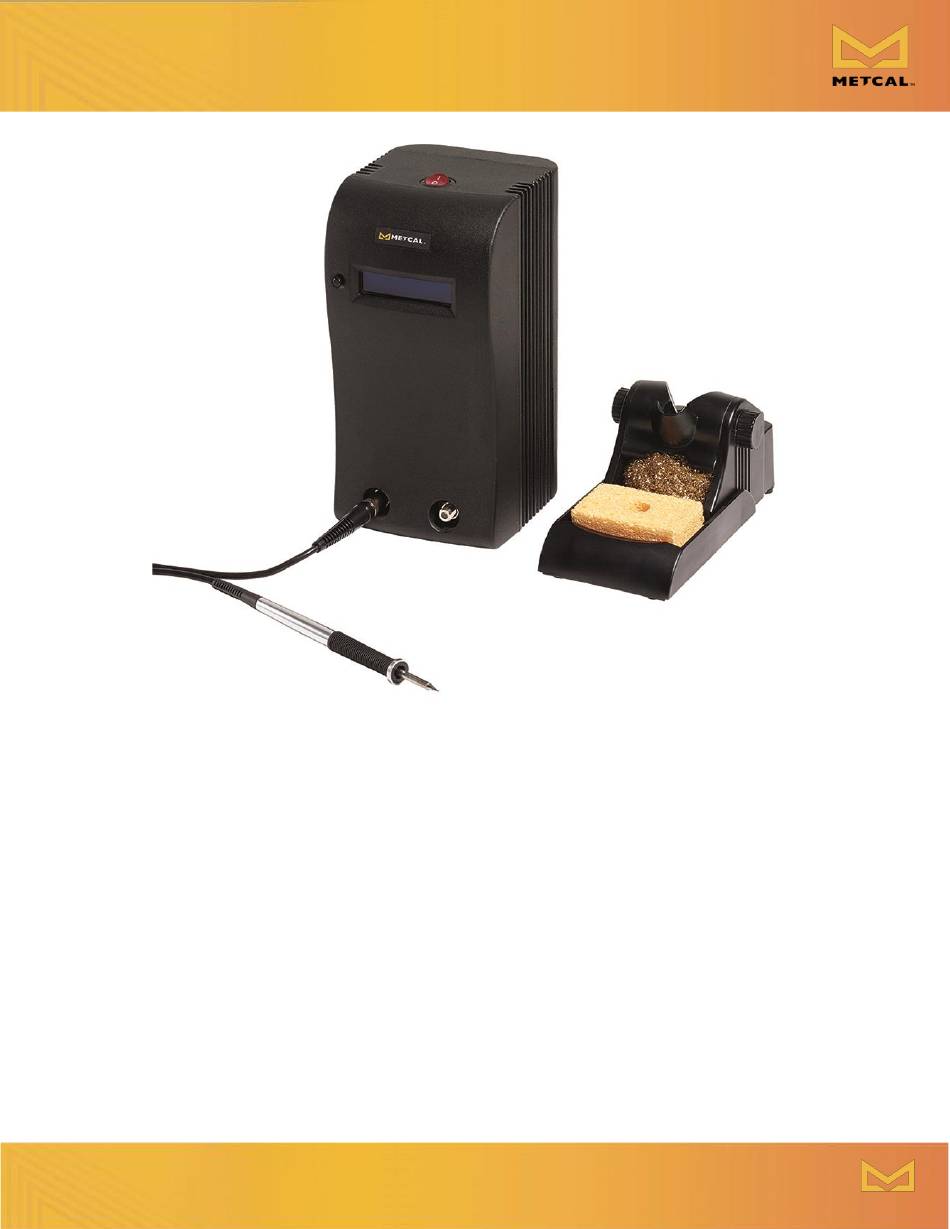

MX-5000 Series Soldering, Desoldering & Rework Systems MX-5000 Series User Guide MX-5000 Serie Betriebsanleitung Série MX-5000 Manuel d’utilisation Serie MX-5000 Manuale dell'utente Serie MX-5000 Guía del usuario MX-5000 系列 用户指南 MX-5000 系列 使用者指南 MX-5000 シリーズ ユーザーガイド MX-5000 시리즈 사용설명서 metcal.com/contact-us...
Page 2
MX-5200 Series User Guide MX-5200 Serie Betriebsanleitung Série MX-5200 Manuel d’utilisation Serie MX-5200 Manuale dell'utente Serie MX-5200 Guía del usuario MX-5200 系列 用户指南 MX-5200 系列 使用者指南 MX-5200 シリーズ ユーザーガイド MX-5200 시리즈 사용설명서...
If the product should become defective within the warranty period, Metcal will repair or replace it free of charge at its sole option. The repaired or replacement item will be shipped, freight prepaid, to the original purchaser. The warranty period will start from the date of purchase.
2. SYSTEM DESIGN AND TECHNOLOGY OVERVIEW The MX-5200 Series is a precision, high-power soldering system with dual switchable ports. It is the newest design of the market leading Metcal soldering systems. It adds ergonomic hand-pieces, a built ® in power meter, 80 watts of power per channel or 40 watts simultaneous, and includes SmartHeat Technology for quick response and precise control.
3. POWER SUPPLY OVERVIEW a. POWER SUPPLY FEATURES LCD Display The MX-5200 Series utilizes a built in LCD which displays system information including: Integrated Power Indication Meter The MX-5200 Series has a built in power indication meter which will display a graphical and numerical representation of the power.
POWER SUPPLY MODE OVERVIEW READY MODE 1. Hand-piece removed from workstand. 2. System is ready for use. SLEEP MODE 1. Hand-piece in workstand. 2. Power to the hand-piece is reduced. POWER MODE 1. Hand-piece removed from stand. 2. System is in use. Power Meter displays power at tip. POWERSAVE MODE 1.
MX-H1-AV STTC / SMTC MX-H2-UF UFTC MX-H6-HTD MX-PTZ PTTC MX-DS1 STDC NOTE: This is only a small sample of tip styles available for each of the hand-pieces. Please consult your catalog or visit Metcal’s website (metcal.com) for a complete listing.
Choosing the Correct Tip Geometry Metcal cartridges come in a wide variety of tip geometries and temperature ranges For a complete up to date listing, visit our website (metcal.com) for more information. These tip geometries cover a broad range of tasks from delicate precision work to heavy ground plane soldering.
Each cartridge is specially designed for high power delivery, which means that you can often solder with a Metcal cartridge at a temperature 100°F (40°C) or more lower than with a conventional soldering iron. Since Metcal tip cartridges sense thermal loads and respond to them, you need only approximate the size of the loads you will be working with.
7. OPERATION a. INITIAL SETUP 1. Connect hand-piece(s) to power unit output connector(s). 2. Insert your selected cartridge into the hand-piece. 3. Push the cartridge all the way until it seats. For TATC cartridges, align the flat side of the cartridge shaft with the opening in the handle.
CHOOSING THE CORRECT TIP CARTRIDGE AND GEOMETRY MULTI-LEAD PACKAGES Multi-lead components can be drag soldered using Metcal hoof-tip cartridges. Tin the working face of the tip with solder and gently drag it across the array of leads. SMT REMOVAL First, measure the dimensions of your component, then, use the SMTC charts that are available from Metcal’s web site (metcal.com) to match component and tip dimension.
Do not use near flammable items Do not use unit for any function other than described in this manual Use only genuine Metcal replacement parts Use in a well ventilated area or with fume extraction Do not use the equipment with wet hands ...
