Viewing Results
History
Resolution
Cursor
Power
Out
Indicator

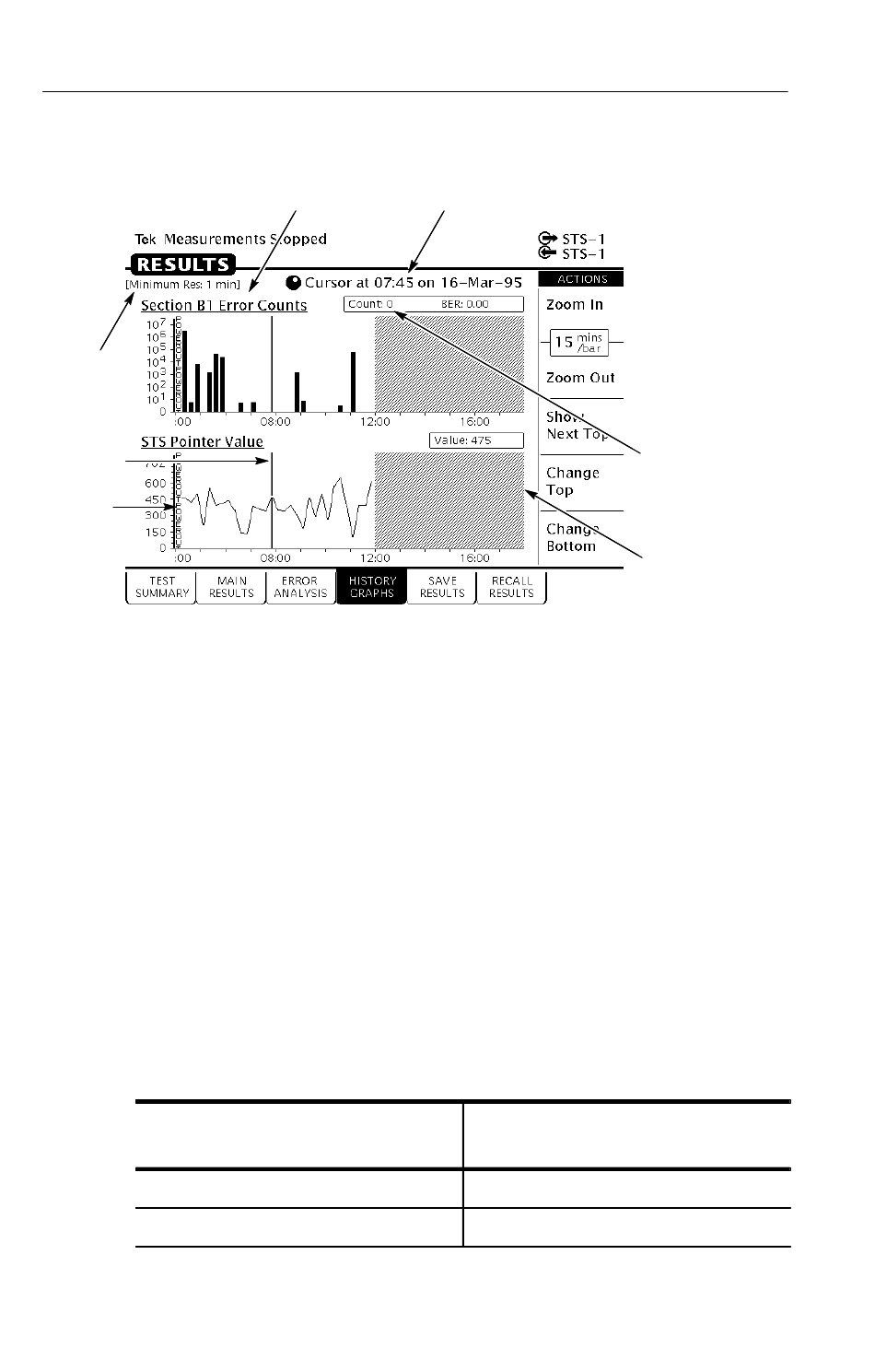

Figure 3–61: Elements of a History Graph

Zooming History Graphs

History graphs display measurement history in intervals. Each
interval is represented by a bar on the history graph. The interval of
time represented by a bar can be changed. Changing the interval a
bar represents is called zooming. History graphs can be zoomed out
or in. When a history graph is zoomed out, a bar represents a
increasingly longer period of time. When a history graph is zoomed
in, a bar represents a decreasingly shorter period of time. Table 3–35
lists the intervals a bar can represent, depending on the history
resolution setting when the test was run.
Table 3–35: Time Represented by Bars on History Graph
History Resolution = Normal
(1 min samples)
1 minute
5 minutes
www.valuetronics.com 3–188
Cursor position
Graph name
History Resolution = Low
(15 min samples)
15 minutes
60 minutes
CTS 710 SONET Test Set User Manual
Measurement
results at
cursor position
Cross-hatch
means the test
was not running
during this time
